HILTI 2123404 HIT-RE 500 V3 Epoxy Adhesive Mortar, 16.9 fl-oz Can, Mixture Form, Part A: Light Gray/Part B: Red
HILTI 2123404 HIT-RE 500 V3 Epoxy Adhesive Mortar, 16.9 fl-oz Can, Mixture Form, Part A: Light Gray/Part B: Red
HILTI 2123404 HIT-RE 500 V3 Epoxy Adhesive Mortar, 16.9 fl-oz Can, Mixture Form, Part A: Light Gray/Part B: Red
- Brand: HILTI
- Mfr# : 2123404
- Item # : HLT 2123404
- UPC #: 613023966163
- Min. Order Qty: :
- Qty. Interval: :
SDS
FEATURES
- Suitable for use in cracked and uncracked concrete with all anchoring elements
- Seismic approval for use in seismic applications
- Reliable solution providing high performance in diamond cored holes using the new roughening tool
- Long working time allows greater flexibility during installation
DESCRIPTION
HILTI Epoxy Adhesive Mortar, Series: HIT-RE 500 V3, Can Container, 16.9 fl-oz Container, Composition: Part A: Bisphenol-A-Epichlorhydrin Epoxy resin, Formaldehyde, oligomeric reaction products with 1-chloro-2,3-epoxypropane and phenol, butanedioldiglycidyl ether, 1,3 Propanediol, 2 ethyl-2-(hydroxymethyl)-, polymer with 2-(chloromethyl)oxirane, [3-(2,3-epoxypropoxy)propyl]trimethoxysilane/Part B: 2-methyl-1,5-pentanediamine, Quartz, Phenol, styrenated, m-Xylylenediamine, 2,4,6-tris(dimethylaminomethyl)phenol, 3-Aminopropyltriethoxysilan, Mixture Form, Part A: Light Gray/Part B: Red, Part A: Characteristic/Part B: Amine Odor/Scent, -40 to 158 deg F, Part A: >200 deg F, Part B: >200 deg F Flash Point, Part B: 11.5 pH, Part A: 45 to 59 Pa s/Part B: 50 to 70 Pa s Viscosity, Flammability: 1, Applicable Materials: Concrete
SPECIFICATIONS
| Series | : HIT-RE 500 V3 |
| Container Type | : Can |
| Container Size | : 16.9 fl-oz |
| Composition | : Part A: Bisphenol-A-Epichlorhydrin Epoxy resin, Formaldehyde, oligomeric reaction products with 1-chloro-2,3-epoxypropane and phenol, butanedioldiglycidyl ether, 1,3 Propanediol, 2 ethyl-2-(hydroxymethyl)-, polymer with 2-(chloromethyl)oxirane, [3-(2,3-epoxypropoxy)propyl]trimethoxysilane/Part B: 2-methyl-1,5-pentanediamine, Quartz, Phenol, styrenated, m-Xylylenediamine, 2,4,6-tris(dimethylaminomethyl)phenol, 3-Aminopropyltriethoxysilan |
| Form | : Mixture |
| Color | : Part A: Light Gray/Part B: Red |
| Odor/Scent | : Part A: Characteristic/Part B: Amine |
| Temperature Rating | : -40 to 158 deg F |
| Flash Point | : Part A: >200 deg F, Part B: >200 deg F |
| pH Range | : Part B: 11.5 |
| Viscosity Rating | : Part A: 45 to 59 Pa s/Part B: 50 to 70 Pa s |
| Flammability Rating | : 1 |
| Applicable Materials | : Concrete |
APPLICATION INFO
| Standard/Approvals | : ICC-ES |

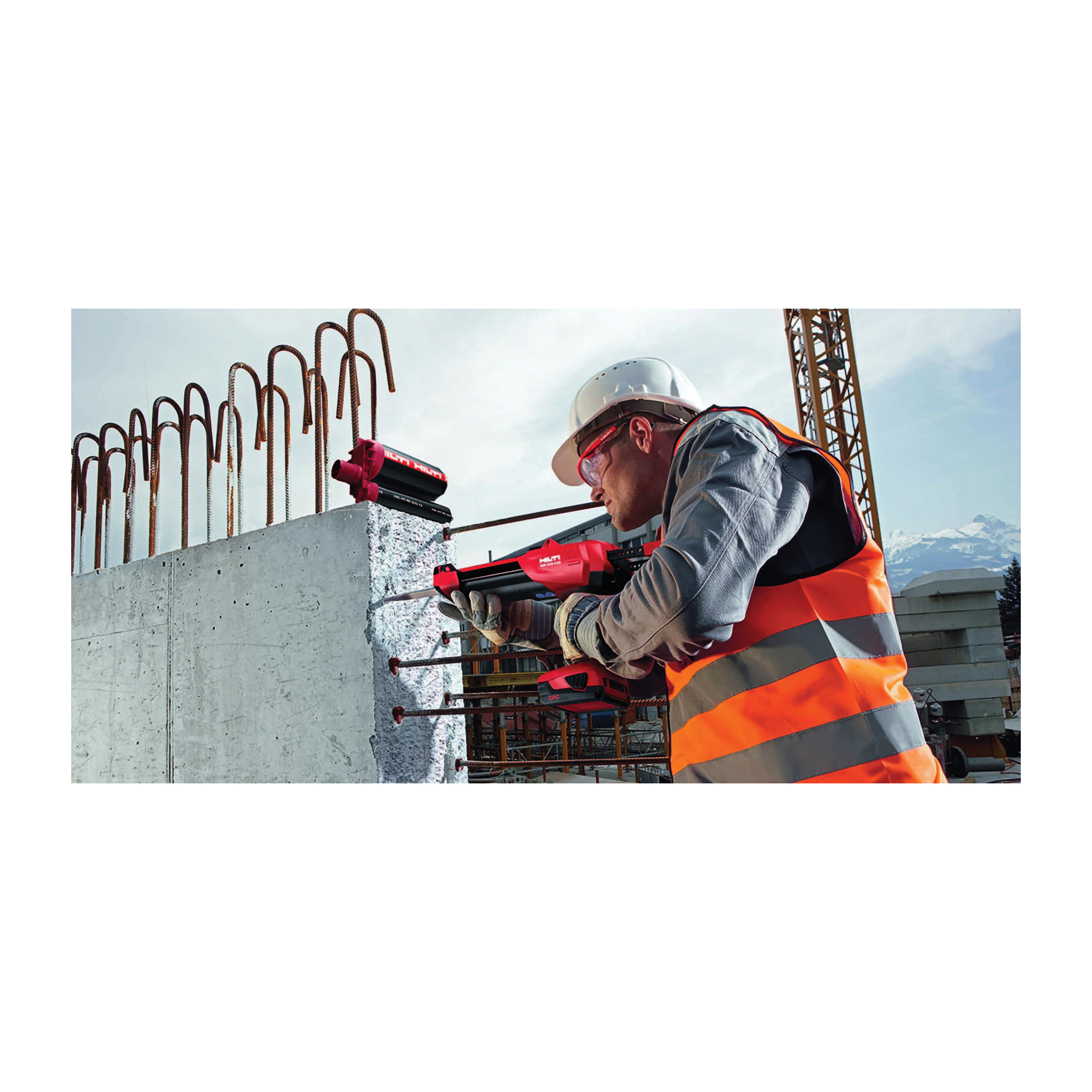

| Application | : For structural connections with post-installed rebar and anchoring structural steel connections |
