Fluke Automotive Multimeter Combo Kit
Fluke Automotive Multimeter Combo Kit
- Brand: Fluke®
- Mfr# : FLUKE-88-5/A-KIT
- Item # : FLU 88-5/A-KIT
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Owners/User Manual
FEATURES
- 50 Ohm resistance
- Resistance, continuity and diode test
- Millisecond pulse Width measurements for fuel injectors
- 4-1/2 digits for precise measurements, rpm measurements with optional inductive pickup
- Temperature measurements with optional temperature probe, optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks
- Minimum maximum/average recording with minimum maximum alert to capture variations automatically
- Peak minimum maximum to record transients as fast as 250 MICSEC
- Relative mode to remove test lead resistance from low Ohm measurements
- Auto and manual ranging for maximum flexibility
- Autohold to capture stable readings with only one touch of the leads
- Large display digits and two-level bright white backlight for increased visibility
- Analog bargraph to track changing or unstable signals
- Input alert provides audible warning against wrong use of input jacks
- Access door for fast battery changes without opening up the case
- Classic design that fits your hand with new removable holster, built-in test lead and probe storage
- 10 MOhm input impedance won™ damage computer circuits
- +/-(0.1% +1) DC voltage, +/-(0.5 PC +2) AC voltage, +/-(0.4% +2) DC current, +/-(1.2% +2) DC current, +/-(0.4% +1) resistance, +/-(1% +2) capacitance, +/-(0.005% +1) frequency, 2% per kHz +0.1% duty cycle, +/-(1.0% +10) conductance
DESCRIPTION

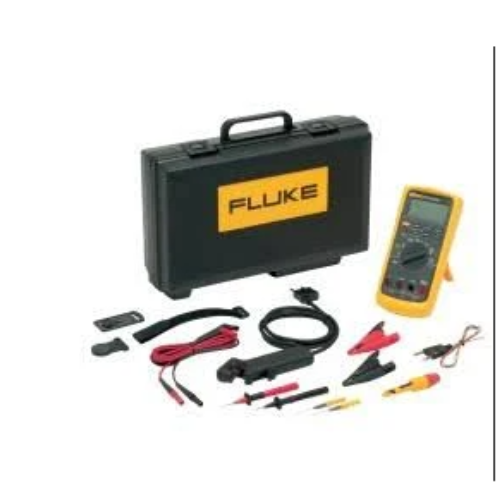

The Fluke 88 V/A KIT Automotive Multimeter Combo Kit comes with the 88 Series V automotive multimeter, silicone test leads, alligator clips, test probes, inductive RPM pick-up probe, ToolPak magnetic meter hanging kit, temperature probe, two automotive backprobe pins, insulation piercing probe, and a durable carrying case. The digital multimeter (also known as a multitester) is designed for use in high energy environments such as those found on hybrid vehicles and measures AC/DC voltage up to 1,000V, AC/DC current to 10 amp (20 amp for a maximum of 30 seconds), frequency to 200 kilohertz, resistance to 50 megaohms, capacitance to 9,999 microfarads, temperature from -200 to +1090 degrees C (-328 to +1994 degrees F) and includes continuity and diode tests.
APPLICATION INFO
| Standard/Approvals | : cCSAus Certified|CE Marking|ECCN 3A992|N10140 Certified|RoHS Compliant|UL Listed |
