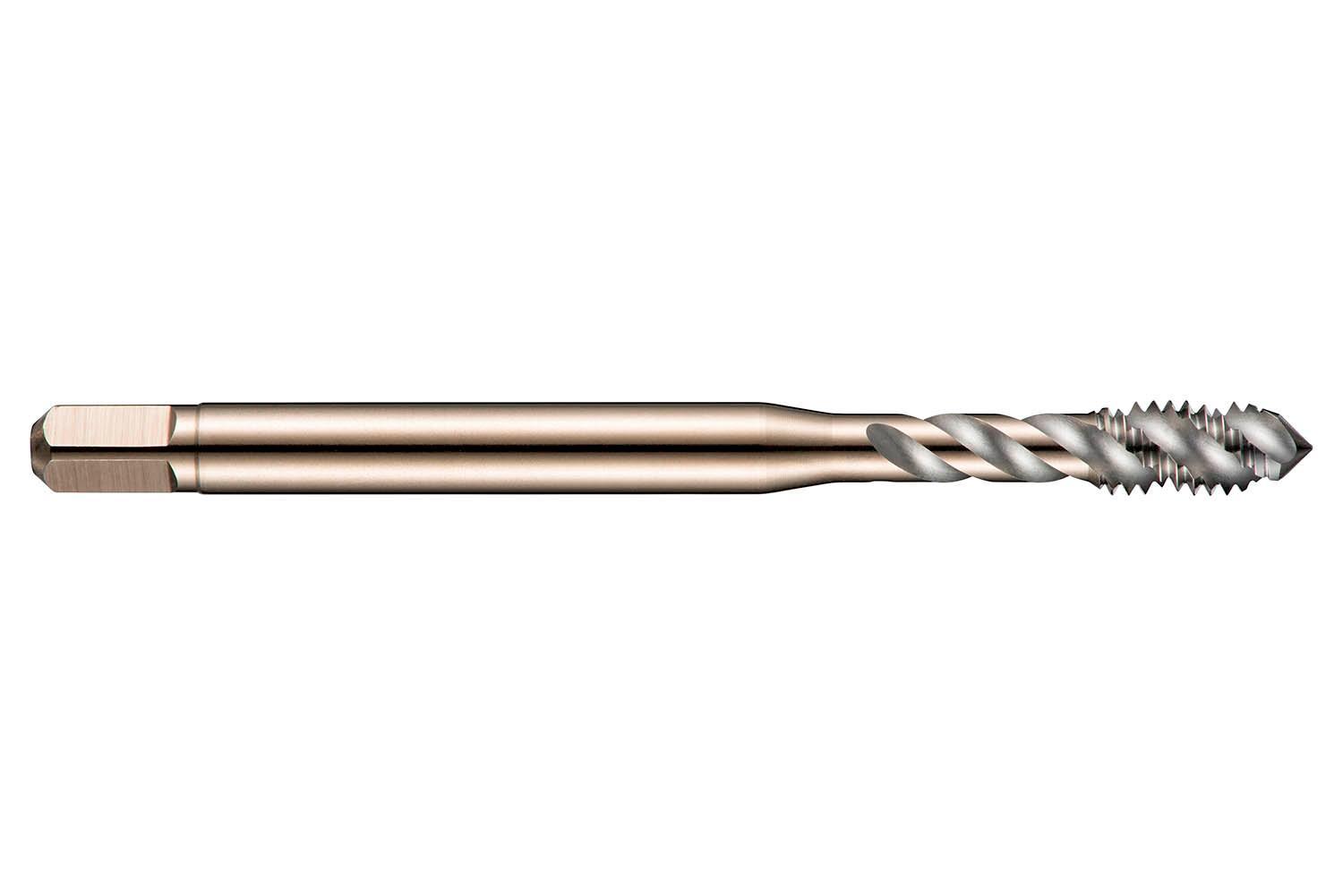

Dormer 5973811 E007 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-XS1
Dormer 5973811 E007 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-XS1
Dormer 5973811 E007 Spiral Flute Tap, Right Hand Cutting, M8x1.25 Thread, H6 Thread Limit, Semi-Bottoming Chamfer, Right Hand Flute Direction, 3 Flutes, Gold, HSS-XS1
- Brand: Dormer
- Mfr# : 5973811
- Item # : DPT 5973811
- UPC #: 732076058063
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Premium substrate for blind hole tapping in tough or abrasive materials
- Bronze oxide body and shank reduces rust and corrosion
- Reinforced shank
DESCRIPTION
Dormer Spiral Flute Tap, Series: E007, Measurement System: Metric, UNC, M8x1.25, Semi-Bottoming Chamfer, 3 Flutes, HSS-XS1, Gold, Class of Fit: 6H/D5, Right Hand Cutting, 0.456 in Thread Length, 2-23/32 in Overall Length, 0.318 in Shank Dia, Right Hand Flute Direction, H6 Thread Limit, Tough or Abrasive Materials Material Application, No Through Coolant (Yes/No)
SPECIFICATIONS
| Series | : E007 |
| Measurement System | : Metric |
| Thread Standard | : UNC |
| Thread Size | : M8x1.25 |
| Chamfer Type | : Semi-Bottoming |
| Number of Flutes | : 3 |
| Material | : HSS-XS1 |
| Finish/Coating | : Gold |
| Class of Fit | : 6H/D5 |
| Cutting Direction | : Right Hand |
| Thread Length | : 0.456 in |
| Overall Length | : 2-23/32 in |
| Shank Diameter | : 0.318 in |
| Flute Direction | : Right Hand |
| Thread Limit | : H6 |
| Material Application | : Tough or Abrasive Materials |
| Through Coolant (Yes/No) | : No |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified|CSA Approved |
| Application | : For multi applications |
| Country of Origin | : BR |
