DeWALT® Wedge-Bolt™ 07882-PWR 1-Piece Heavy Duty Screw Anchor, 3/8 in Dia, 3 in OAL, Hex Washer Head Drive, 316 Stainless Steel, 2 in D Min Embedment
DeWALT® Wedge-Bolt™ 07882-PWR 1-Piece Heavy Duty Screw Anchor, 3/8 in Dia, 3 in OAL, Hex Washer Head Drive, 316 Stainless Steel, 2 in D Min Embedment
DeWALT® Wedge-Bolt™ 07882-PWR 1-Piece Heavy Duty Screw Anchor, 3/8 in Dia, 3 in OAL, Hex Washer Head Drive, 316 Stainless Steel, 2 in D Min Embedment
- Brand: DeWalt®
- Mfr# : 07882-PWR
- Item # : BLD 07882-PWR
- UPC #: 075352078823
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
Specification Sheet
FEATURES
- High corrosion resistance of type 316 stainless steel
- Anchor can be installed through standard fixture holes
- Can be installed with an impact wrench or conventional hand socket
- Finished hex head provides attractive appearance and minimizes tripping hazard
- Ratchet teeth on underside of hex washer head lock against the fixture
- Consistent performance in high and low strength concrete

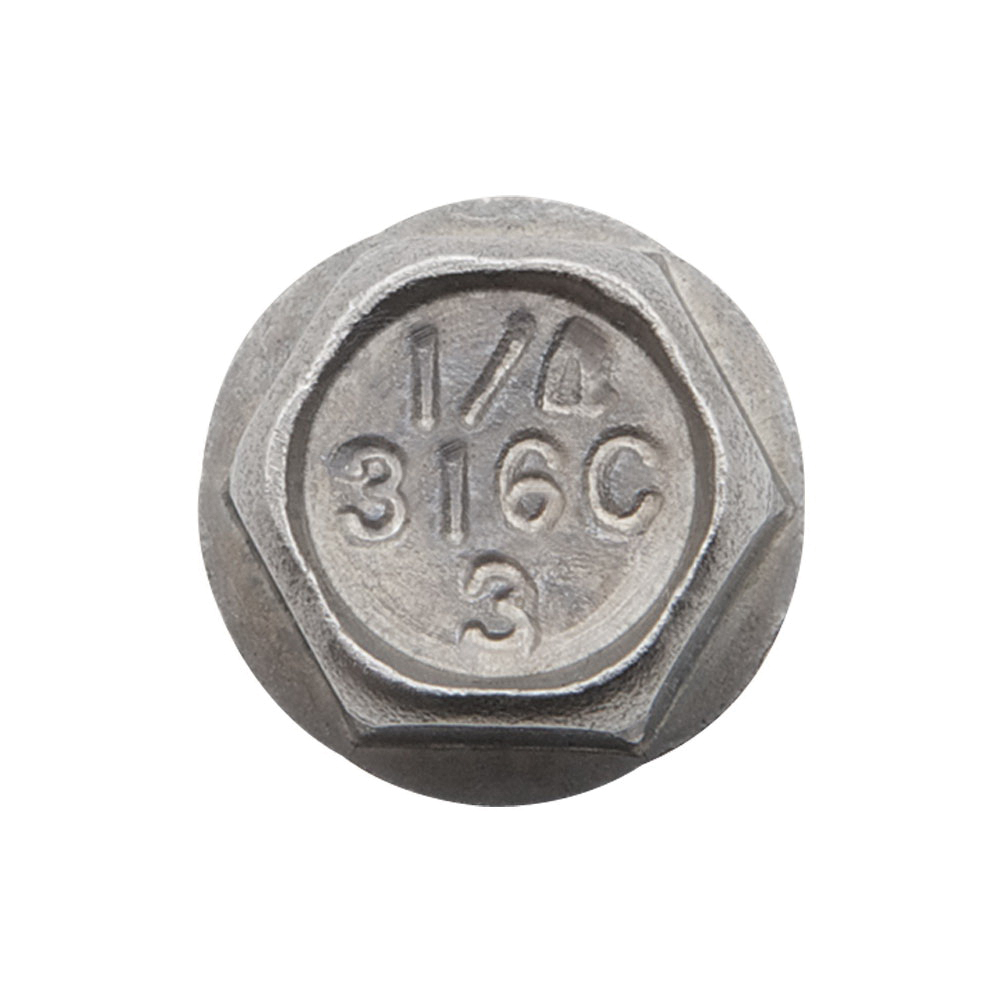

- Diameter, length and identifying marking stamped on head of each anchor
- Fast installation and immediate loading minimizes downtime
- Can be installed closer to the edge than traditional expansion anchors
DESCRIPTION
The 316 stainless steel Wedge-Bolt™ anchor is a 1-piece, heavy duty Screw Anchor with a finished hex head. It is simple to install, easy to identify, fully removable and vibration-resistant. The Wedge-Bolt™ has many unique features and benefits that make it well suited for many applications, both indoors and out. Optimum performance is obtained using a combination of patented design concepts. The steel threads along the anchor body self tap into the hole during installation and provide positive keyed engagement. The benefit to the designer is higher load capacities, while the benefit to the user is ease of installation. The Wedge-Bolt™ can be installed with either a powered impact wrench or conventional hand socket. 316 stainless steel Wedge-Bolt™ Screw Anchors are designed to be used with a matched tolerance Wedge-Bit™ for optimum performance. The Wedge-Bolt™ works in fixture clearance holes that are 1/16 in over nominal, which is typical of standard fixture holes used in steel fabrication.
DeWALT® Wedge-Bolt™ Screw Anchor, 1-Piece Heavy Duty, 3/8 in Diameter, 3 in Overall Length, Hex Washer Head Drive, 316 Stainless Steel, 2 in Minimum Embedment Depth, 3/8 in Drill, Applicable Materials: Brick Masonry, Grouted Concrete Masonry (CMU), Lightweight Concrete and Normal Weight Concrete, 2-1/4 in Thread Length, 21/64 in H Head
SPECIFICATIONS
| Type | : 1-Piece Heavy Duty |
| Diameter | : 3/8 in |
| Overall Length | : 3 in |
| Head Drive Type | : Hex Washer |
| Material | : 316 Stainless Steel |
| Minimum Embedment Depth | : 2 in |
| Drill Size | : 3/8 in |
| Applicable Materials | : Brick Masonry, Grouted Concrete Masonry (CMU), Lightweight Concrete and Normal Weight Concrete |
| Thread Length | : 2-1/4 in |
| Head Size | : 21/64 in H |
APPLICATION INFO
| Standard/Approvals | : AC106|AC193|ASTM E488 |
| Application | : Interior and Exterior Applications, Railing and Fencing, Repairs and Retrofits, Support Ledgers and Windows, Storage Facilities and Maintenance |
| Country of Origin | : TW |
