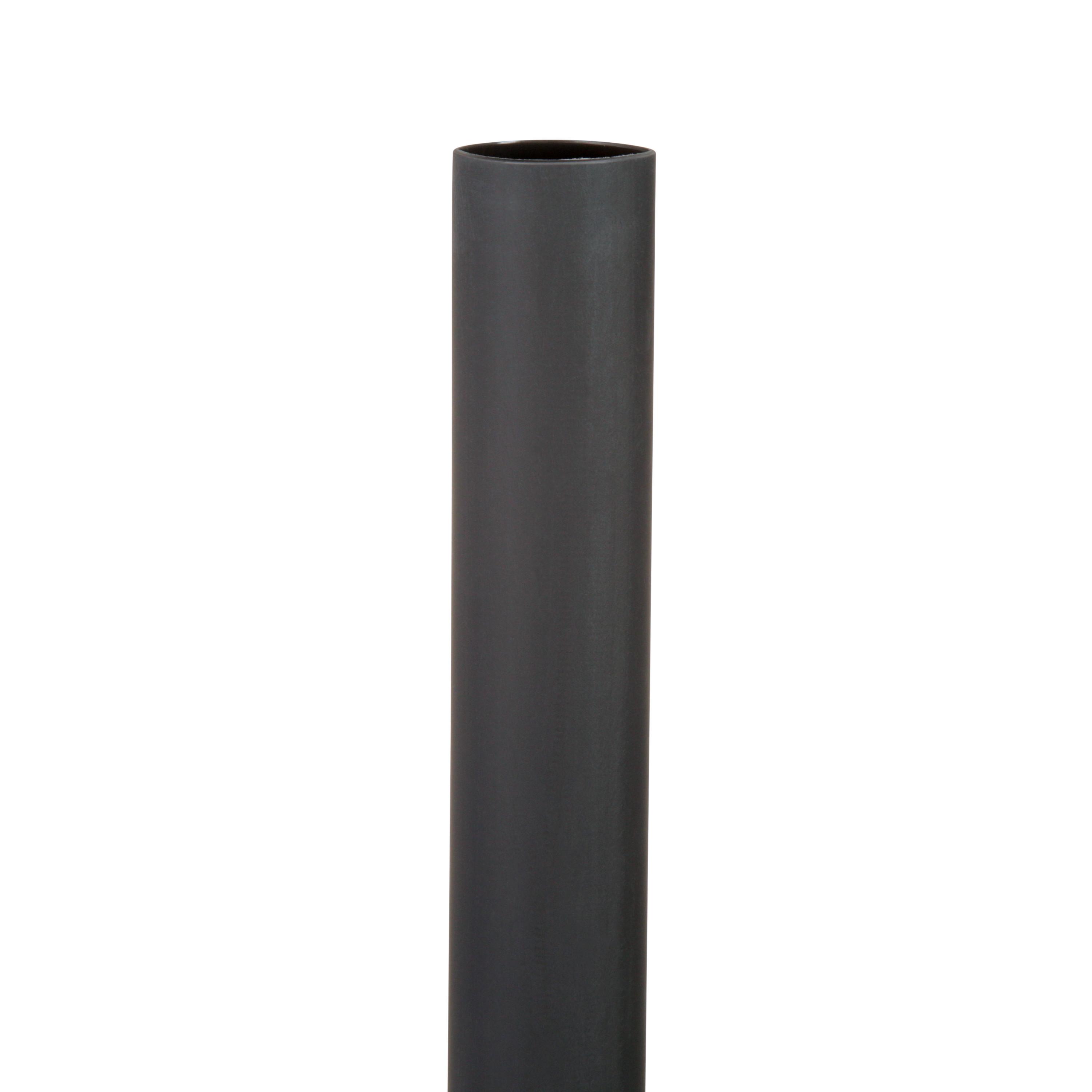

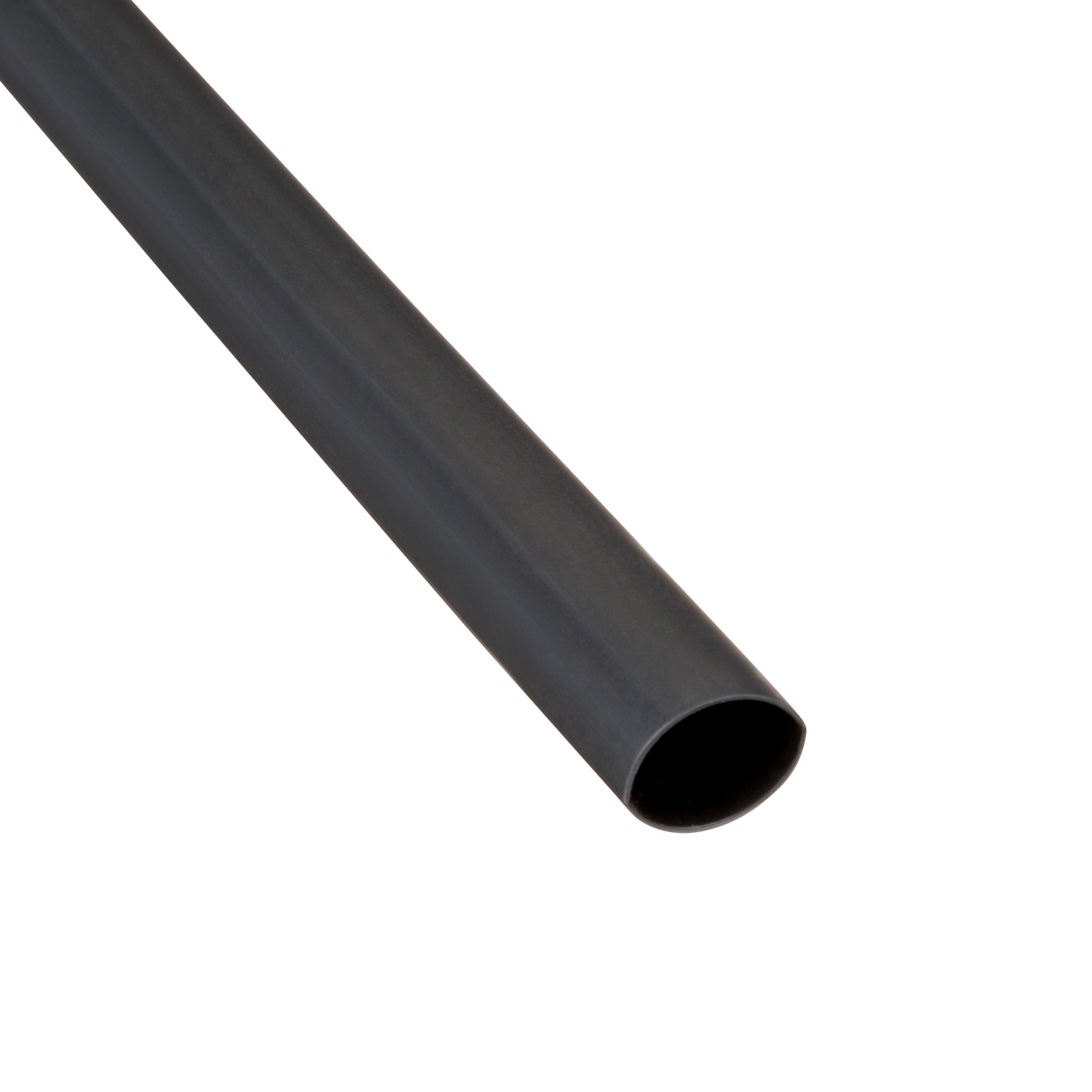

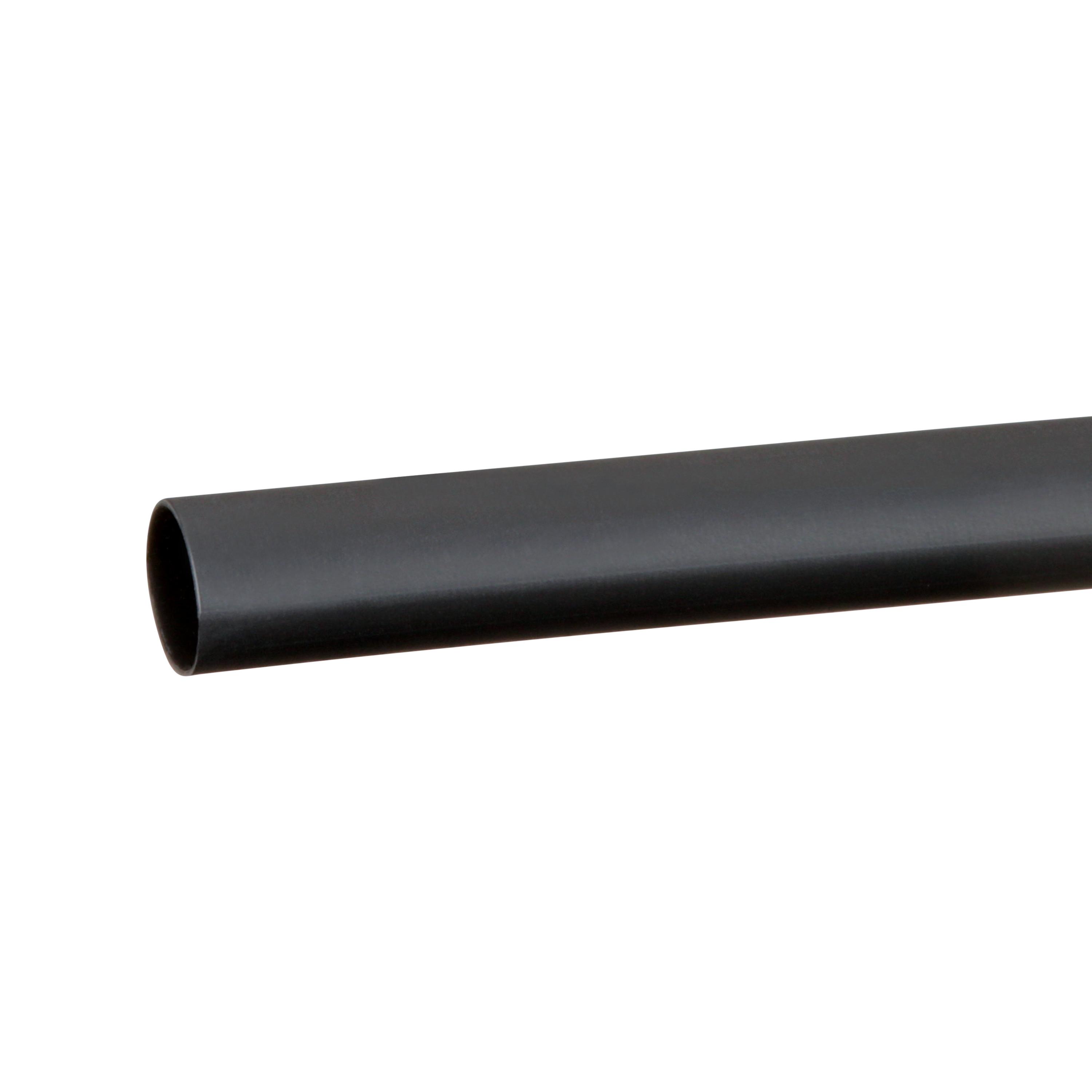

3M™ 7000133685 E30.750BK6P Tubing, 0.25 in ID Recovered, 6 in L, Polyolefin, Black
3M™ 7000133685 E30.750BK6P Tubing, 0.25 in ID Recovered, 6 in L, Polyolefin, Black
- Brand: 3M™
- Mfr# : 7000133685
- Item # : MMM 60068
- UPC #: 051128600689
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- SHRINK RATIO - Offers a 3:1 shrink ratio, when freely recovered, the tubing will shrink 33% of its as-supplied diameter
- DUAL-WALL DESIGN - A durable, flexible polyolefin outer wall resists abrasions while a meltable inner wall keeps out moisture
- OPERATING RANGE - This tubing functions in a temperature range of -55110 C (-67230 F), with a shrinking temperature minimum of 121 C (250 F)
- Dual-wall construction provides abrasion resistance and moisture-seal protection
- Offers the advantage of integral, adhesive-lined construction
- Withstands temperatures of -67 to 230 deg F (-55 to 110 deg C)
- Flame-retardant tubing is rated for 600V applications
DESCRIPTION
3M™ Heat Shrink Products offer the important advantages of simple installation, excellent performance, and long-term reliability. The materials chosen for these products are specifically developed to meet demanding performance requirements and are manufactured under stringent quality-assurance standards, with many products meeting or exceeding the requirements of most military, commercial, and industrial OEM specifications. Various 3M™ Heat Shrink Products have proven their effectiveness in some of the most demanding environments, including outer space, undersea, and underground. Count on a wide range of high-quality heat shrink tubing products from 3M for insulating, protecting, bundling, harnessing, and wire marking.
3M™, 7000133685, Tubing, Series: E30.750BK6P, 600 V, 0.75 in ID Expanded, 0.25 in ID Recovered, Dual Wall, 3:1 Shrink Ratio, 6 in Length, -55 to 110 deg C, 121 deg C Shrink, Polyolefin, Black
SPECIFICATIONS
| Type | : Adhesive Lined Flexible |
| Series | : E30.750BK6P |
| Voltage Rating | : 600 V |
| Inner Diameter Expanded | : 0.75 in |
| Inner Diameter Recovered | : 0.25 in |
| Wall Type | : Dual |
| Wall Thickness Recovered | : 0.085 in |
| Shrink Ratio | : 3:1 |
| Length | : 6 in |
| Temperature Rating | : -55 to 110 deg C |
| Shrink Temperature | : 121 deg C |
| Material | : Polyolefin |
| Color | : Black |
APPLICATION INFO
| Standard/Approvals | : UL File Number E-157227|OEM specifications||CSA Certified|RoHS 2011/65/EU Compliant|UL Recognized |
| Application | : Ideal for a variety of applications - Offers protection for automotive, truck, electronic components, wire splices, wire bundles and harness breakouts |
| Country of Origin | : US |
