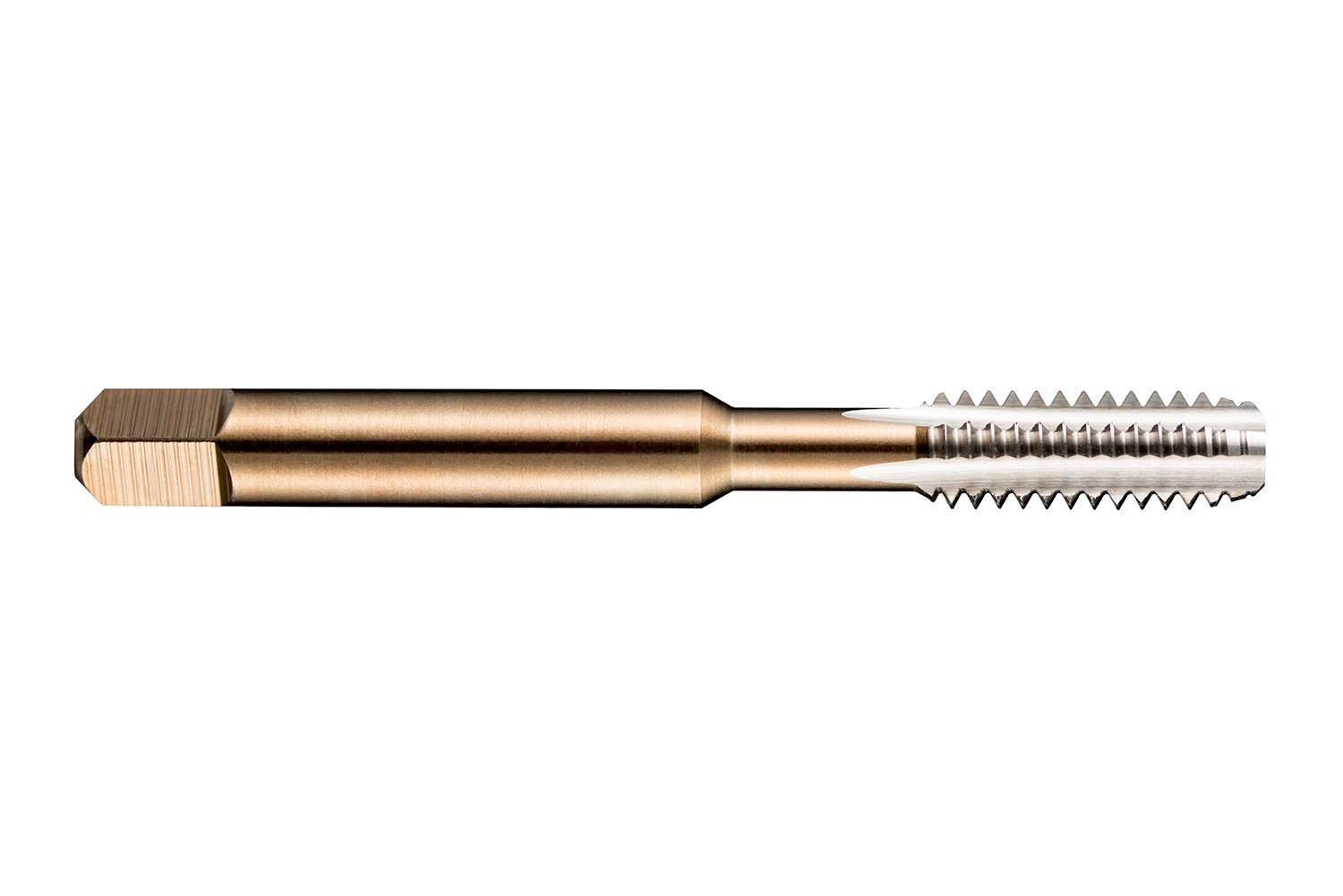

Dormer 5974280 E061 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Bright, HSS

Dormer 5974280 DPT 5974280

Dormer 5974280 E061 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Bright, HSS

Dormer 5974280 E061 General Purpose Straight Flute Hand Tap, Right Hand Cutting, 5/8-11 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Bright, HSS

  • Brand: Dormer
  • Mfr# : 5974280
  • Item # : DPT 5974280
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Union_Butterfield_1010300_Catalog.pdf

FEATURES

  • The most versatile taps for hand use or machine tapping in a wide variety of materials in through or blind hole applications
  • A medium alloyed high speed steel that has good machinability and good performance
  • HSS exhibits hardness, toughness and wear resistance characteristics that make it attractive in a wide range of applications

DESCRIPTION

Dormer Straight Flute Hand Tap, General Purpose, Series: E061, Measurement System: Imperial, UNC Thread Standard, 5/8-11 Thread, Plug Chamfer, 4 Flutes, HSS, Bright, Class of Fit: 2B/3B, Right Hand Cutting Direction, 0.9843 in Thread Length, 3-13/16 in Overall Length, 0.48 in Shank Diameter, Alloy Steel, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Copper, Copper Alloy, Hardened Steel, Plastic, Steel, Structural Steel and Thermosetting Plastics Material Application, H3 Thread Limit

SPECIFICATIONS

Type      :    General Purpose
Series      :    E061
Measurement System      :    Imperial
Thread Standard      :    UNC
Thread Size      :    5/8-11
Chamfer Type      :    Plug
Number of Flutes      :    4
Material      :    HSS
Finish/Coating      :    Bright
Class of Fit      :    2B/3B
Cutting Direction      :    Right Hand
Thread Length      :    0.9843 in
Overall Length      :    3-13/16 in
Shank Diameter      :    0.48 in
Material Application      :    Alloy Steel, Aluminum Alloy, Brass, Bronze, Carbon Steel, Cast Iron, Copper, Copper Alloy, Hardened Steel, Plastic, Steel, Structural Steel and Thermosetting Plastics
Thread Limit      :    H3

APPLICATION INFO

Standard/Approvals      :    ANSI Specified|CSA Approved
Application      :    For through or blind hole applications
Country of Origin      :    BR
