Brady® PermaSleeve® BM71-250-1-342 BMP®71 1-Sided Heat Shrink Wire Marker Sleeve, 16 to 8 AWG Wire, 1.015 in L x 1 in W, B-342 Polyolefin

Brady® BM71-250-1-342 BDY BM71-250-1-342

Brady® PermaSleeve® BM71-250-1-342 BMP®71 1-Sided Heat Shrink Wire Marker Sleeve, 16 to 8 AWG Wire, 1.015 in L x 1 in W, B-342 Polyolefin

Brady® PermaSleeve® BM71-250-1-342 BMP®71 1-Sided Heat Shrink Wire Marker Sleeve, 16 to 8 AWG Wire, 1.015 in L x 1 in W, B-342 Polyolefin

  • Brand: Brady®
  • Mfr# : BM71-250-1-342
  • Item # : BDY BM71-250-1-342
  • UPC #: 662820927679
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Technical Bulletin https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Brady_PSPT-094-1-WT_Technical_Bulletin.pdf

FEATURES

  • Heat shrinkable, with 3:1 shrink ratio, self-extinguishing, made of B-342 polyolefin material
  • Chemical, corrosion, fade, humidity, smear, smudge, UV, weather-resistant, full circle insulating sleeves
  • Thermal transfer print technology
  • Excellent cold weather performance
  • Matte finish
  • Brady PermaSleeve heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification
  • Fade-resistant and smudge-proof for superior aesthetic appearance
  • Cold resistant and flame-retardant with an operating temperature of -67 deg F to 275 deg F (-55 deg C to 135 deg C)

DESCRIPTION

Brady® PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification.

Brady® PermaSleeve® Wire Marker Sleeve, 1-Sided Heat Shrink, Series: BMP®71, 1.015 in Length, 1 in Width, 16 to 8 AWG Wire, White, B-342 Polyolefin, -94 to 267 deg F, For Use With: BMP®71 Label Printer

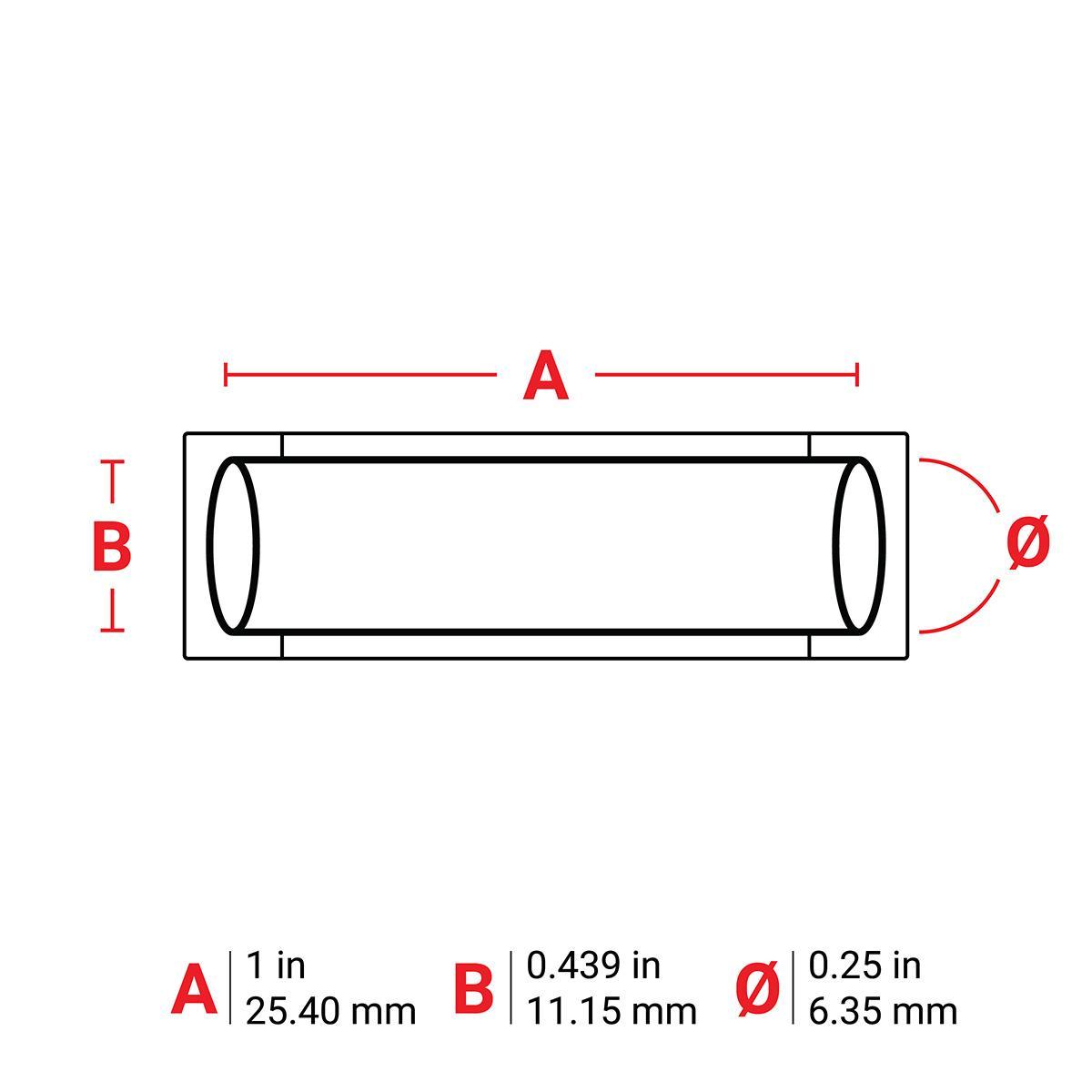

SPECIFICATIONS

Type      :    1-Sided Heat Shrink
Series      :    BMP®71
Length      :    1.015 in
Width      :    1 in
Wire Size      :    16 to 8 AWG
Color      :    White
Material      :    B-342 Polyolefin
Temperature Rating      :    -94 to 267 deg F
Suitable For Use With      :    BMP®71 Label Printer

APPLICATION INFO

Standard/Approvals      :    ASTM D2671|ASTM E162|ASTM E662|ASTM G155|SAE-DTL-23053/5 Class 1|SAE-AS-81531|MIL-STD-202|UL Listed|SAE-AMS-DTL-23053|UL Listed|PROP65: Cancer - www.P65warnings.ca.gov

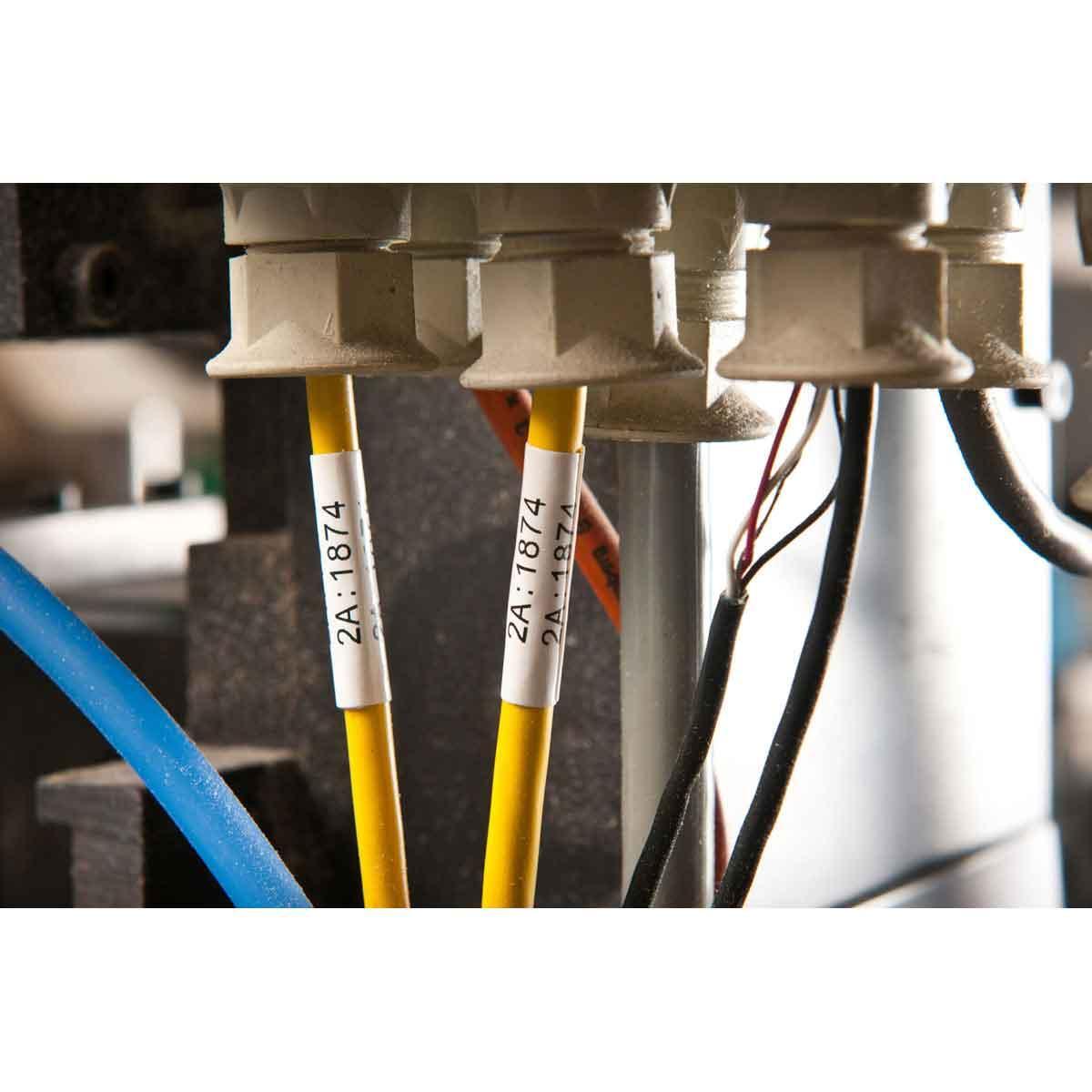

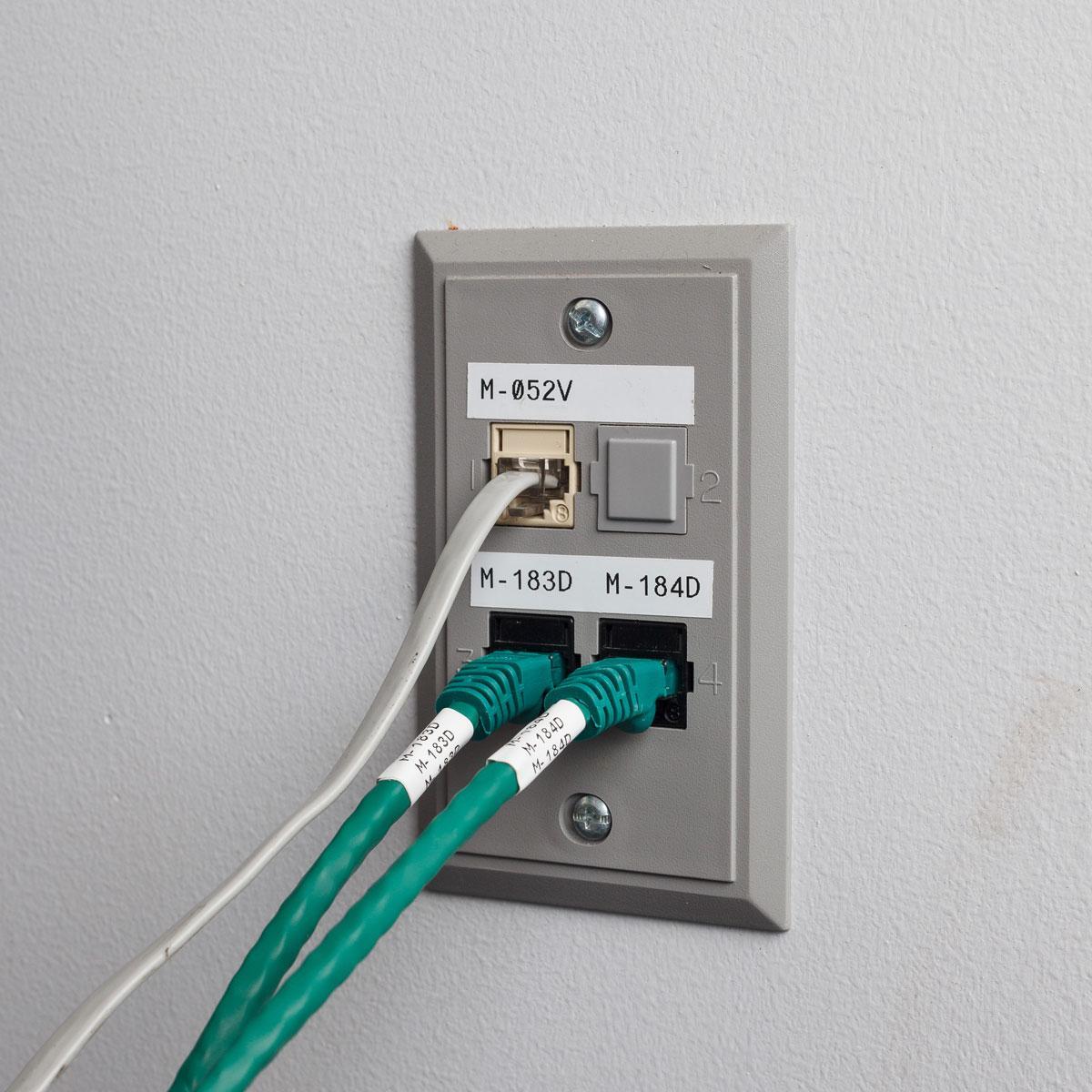

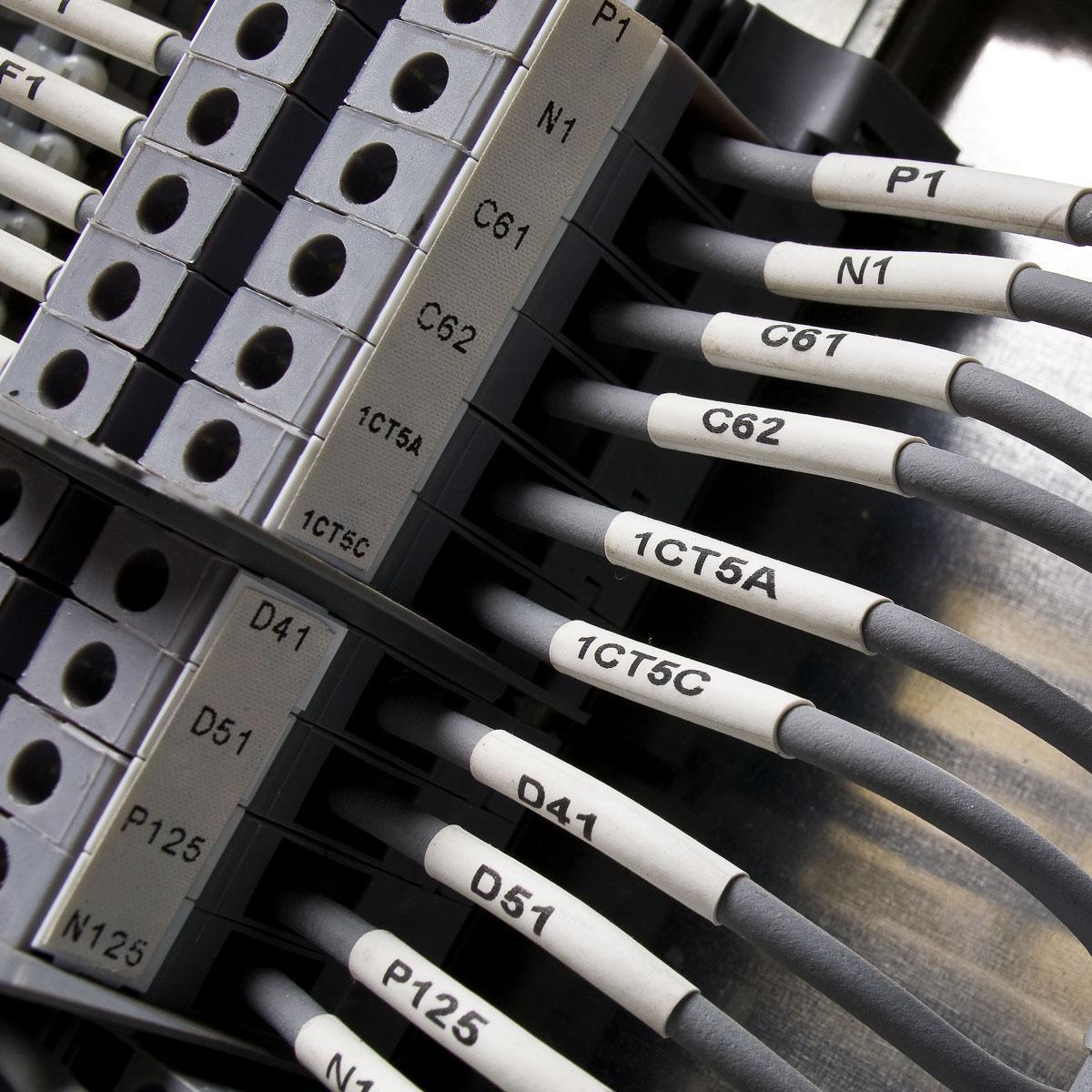

Application      :    Panel Identification, Panel Labeling, Cable and Wire Marking Applications
Country of Origin      :    US
