Milwaukee® 2761-22 Hydraulic Driver Kit, 1/4 in Hex Drive, 1000 in-lb Torque, 18 V, 4.33 in OAL

Milwaukee® 2761-22 Hydraulic Driver Kit, 1/4 in Hex Drive, 1000 in-lb Torque, 18 V, 4.33 in OAL

Milwaukee® 2761-22 Hydraulic Driver Kit, 1/4 in Hex Drive, 1000 in-lb Torque, 18 V, 4.33 in OAL


  • Brand: Milwaukee®
  • Mfr# : 2761-22
  • Item # : MIL 2761-22
  • UPC #: 045242602223
  • Min. Order Qty: :
  • Qty. Interval: :

loading
loading

  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_2761_22_Owners_User_Manual.pdf
  • pdf Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_2761_22_Service_Manual.pdf
  • video VIDEO LINK https://milwaukeetool.widen.net/view/video/zaxurrx9a4/M18-FUEL-SURGE-1-4-Hex-Hydraulic-Driver.mp4?u=uqymji

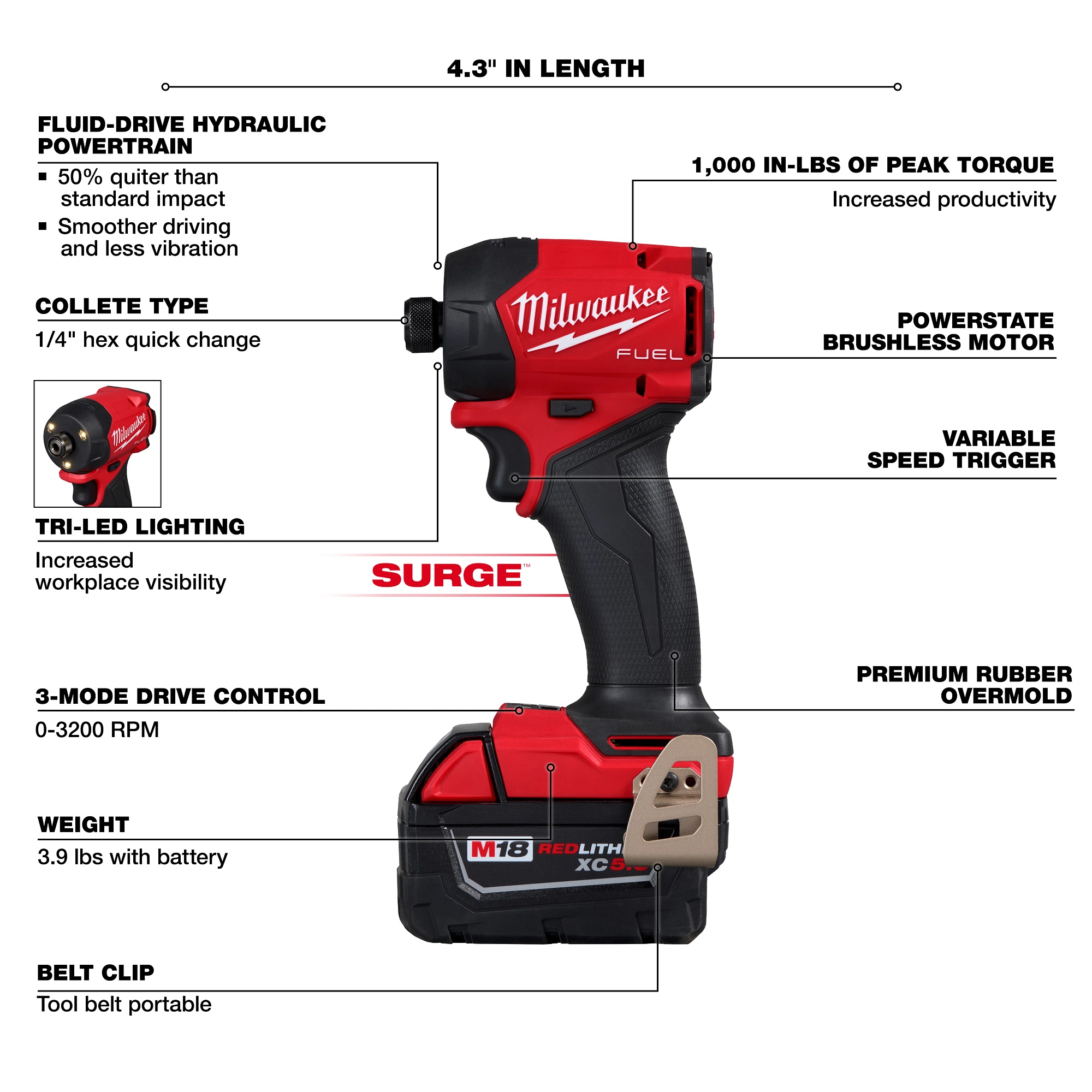

FEATURES

  • Smoother driving and 3X less vibration than a standard impact driver
  • FLUID-DRIVE Hydraulic Powertrain reduces metal on metal contact within the tool for quieter operation and a smoother driving experience
  • POWERSTATE brushless motor delivers 1000in-lbs of torque
  • Compact size (4.33) for access in tight spaces
  • 3-MODE DRIVE CONTROL provides greater control over speed and power
  • Tri-LED lighting for maximum workspace visibility
  • Single handed bit insertion

DESCRIPTION

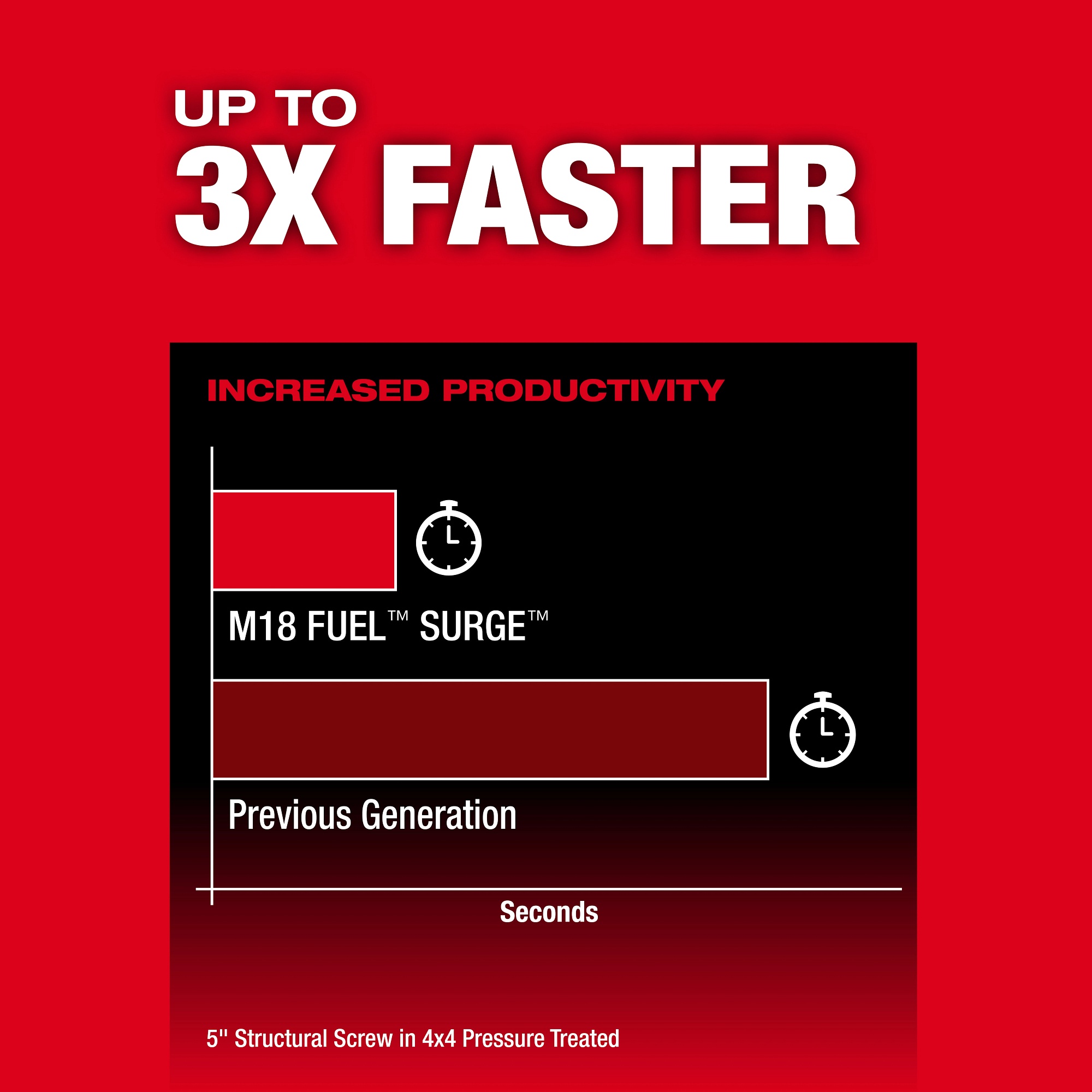

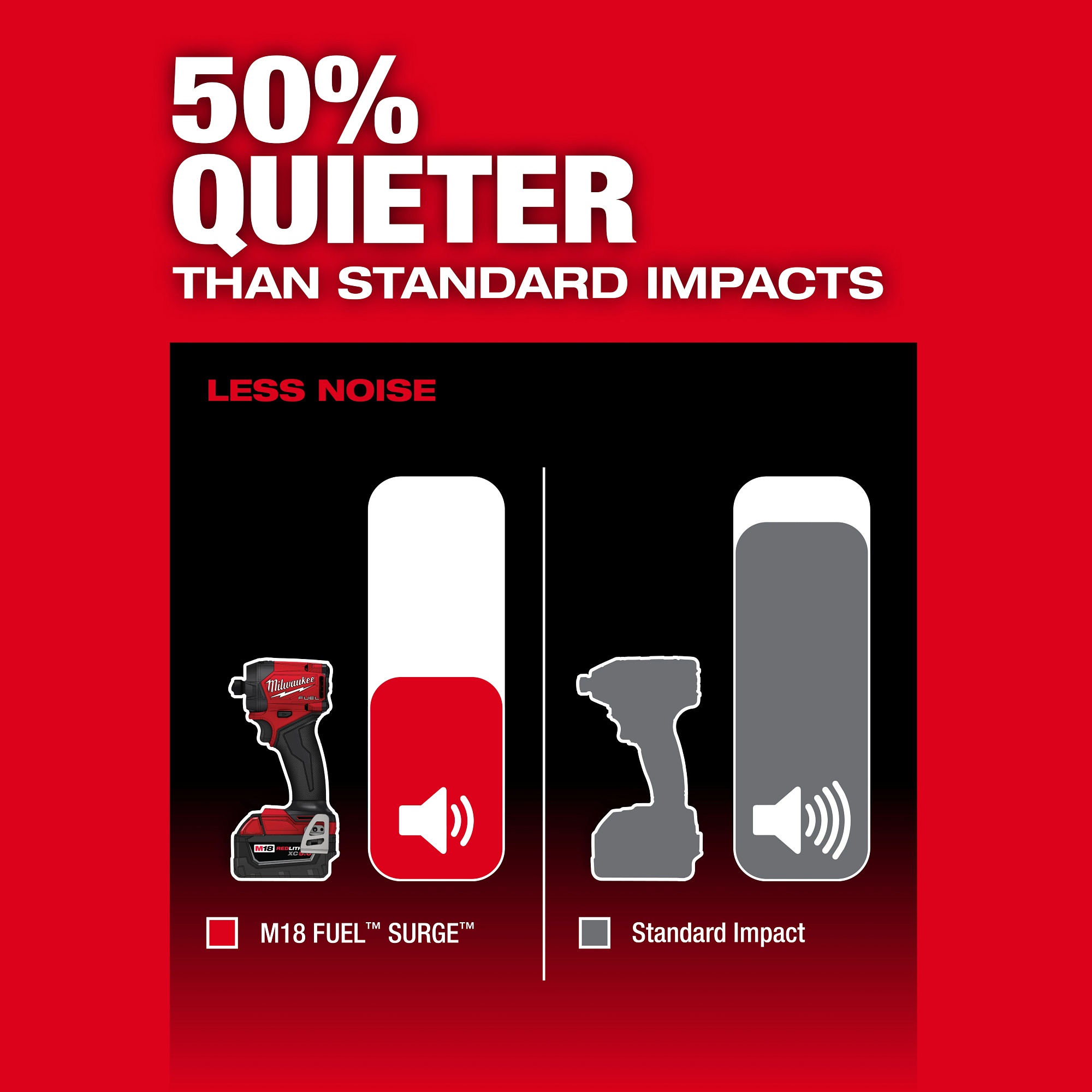

The MILWAUKEE® M18 FUEL SURGE 1/4 Hex Hydraulic Driver has been redesigned from the ground up to significantly increase productivity while maintaining industry-leading reductions in sound and vibration. Optimized for use in occupied spaces and to reduce end-user fatigue, the new M18 FUEL SURGE utilizes a redesigned FLUID-DRIVE Hydraulic Powertrain to deliver 50% quieter operation with smoother driving and 3X less vibration compared to standard impact drivers. The second-generation Hydraulic Driver leverages a POWERSTATE Brushless Motor to deliver up to 3X faster driving speeds than the previous generation and 1000in-lbs of torque for added capability. REDLINK PLUS Intelligence features advanced electronics that provide increased thermal capability for more back-to-back applications and protect the tool from damage caused by overheating. Reducing size and weight to improve access, the new tool is 0.7 shorter and 0.3 lbs lighter. The second-generation tool also includes Tri-LED lighting for increased workspace visibility. Continuing to lead in sound and vibration reduction, the second-generation M18 FUEL SURGE 1/4 Hex Hydraulic Driver now delivers greater speed and capability for increased productivity across a variety of applications

Milwaukee®, 2761-22, Hydraulic Driver Kit, Bare Tool/Kit: Kit, Hex Drive, 1/4 in Drive, 1000 in-lb Torque, 6300 ipm Impact Energy, 3200 rpm Speed, 18 V, Li-Ion Battery, Metal Housing Material, 4.33 in Overall Length, 7.78 in H x 2.46 in W Dimensions

SPECIFICATIONS

Bare Tool/Kit      :    Kit
Drive Type      :    Hex
Drive Size      :    1/4 in
Torque Rating      :    1000 in-lb
Impact Energy      :    6300 ipm
Speed      :    3200 rpm
Voltage Rating      :    18 V
Battery Type      :    Li-Ion
Housing Material      :    Metal
Overall Length      :    4.33 in
Dimensions      :    7.78 in H x 2.46 in W

APPLICATION INFO

Standard/Approvals      :    29CFR 1910.1200
Country of Origin      :    VN

Documents

  • pdf Owners/User Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_2761_22_Owners_User_Manual.pdf
  • pdf Service Manual https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Milwaukee_2761_22_Service_Manual.pdf
  • video VIDEO LINK https://milwaukeetool.widen.net/view/video/zaxurrx9a4/M18-FUEL-SURGE-1-4-Hex-Hydraulic-Driver.mp4?u=uqymji
