Milwaukee® 1680-20 Grounded Electric Drill, 1/2 in Keyed Chuck, 120 V AC, 450 to 1750 rpm Speed, 22 in OAL
Milwaukee® 1680-20 Grounded Electric Drill, 1/2 in Keyed Chuck, 120 V AC, 450 to 1750 rpm Speed, 22 in OAL
Milwaukee® 1680-20 Grounded Electric Drill, 1/2 in Keyed Chuck, 120 V AC, 450 to 1750 rpm Speed, 22 in OAL
- Brand: Milwaukee®
- Mfr# : 1680-20
- Item # : MIL 1680-20
- UPC #: 045242001972
- Min. Order Qty: :
- Qty. Interval: :
Full Engineering Drawing
FEATURES
- Powerful 13.0 Amotor, Delivers 450 RPM- 1,750 RPM with a clutch in low gear
- Reinforced nylon resin casing, Provides durability and less weight than metal with greater heat dissipation and resistance to chemicals
- Easy turn gear shift knob
DESCRIPTION

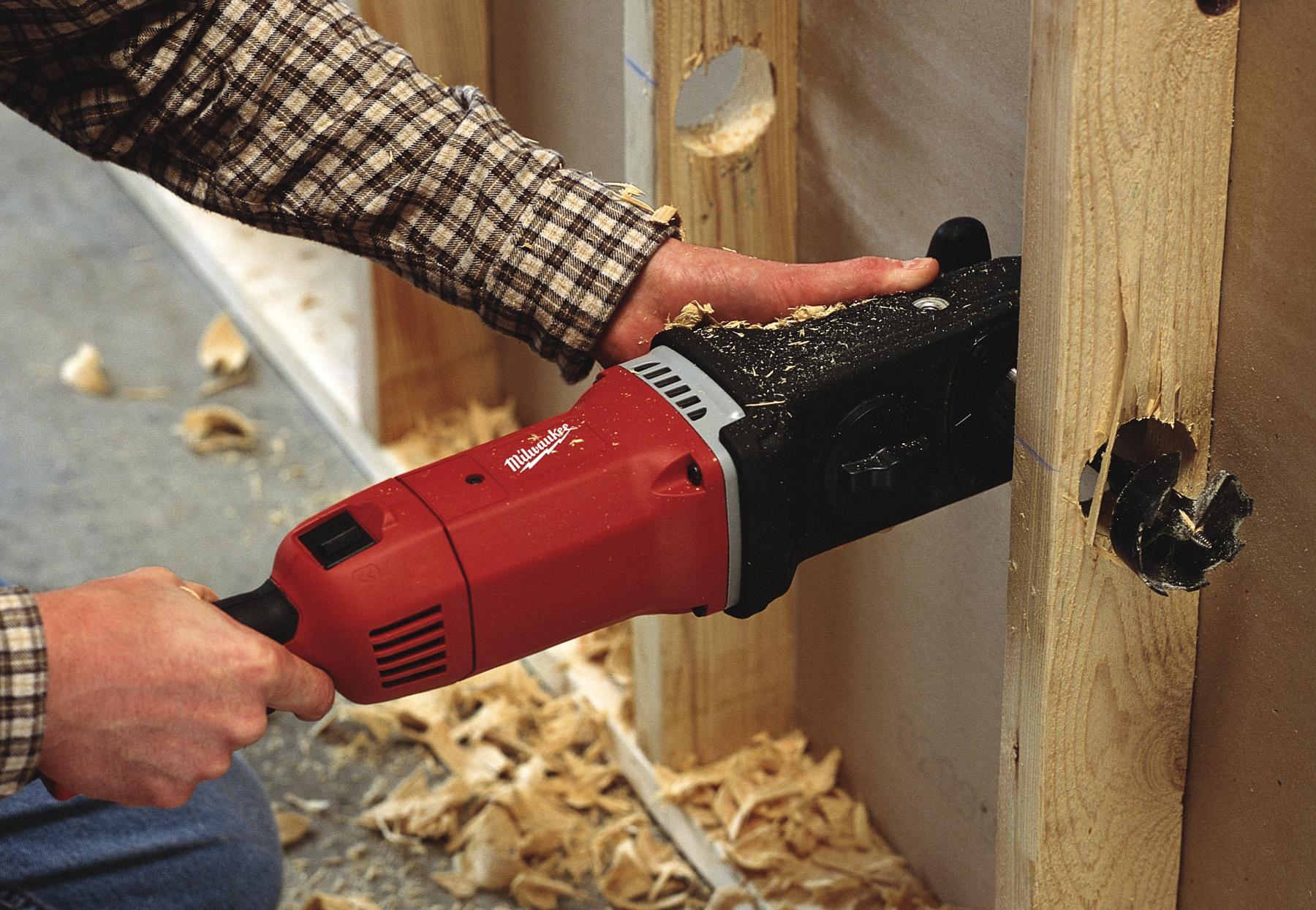

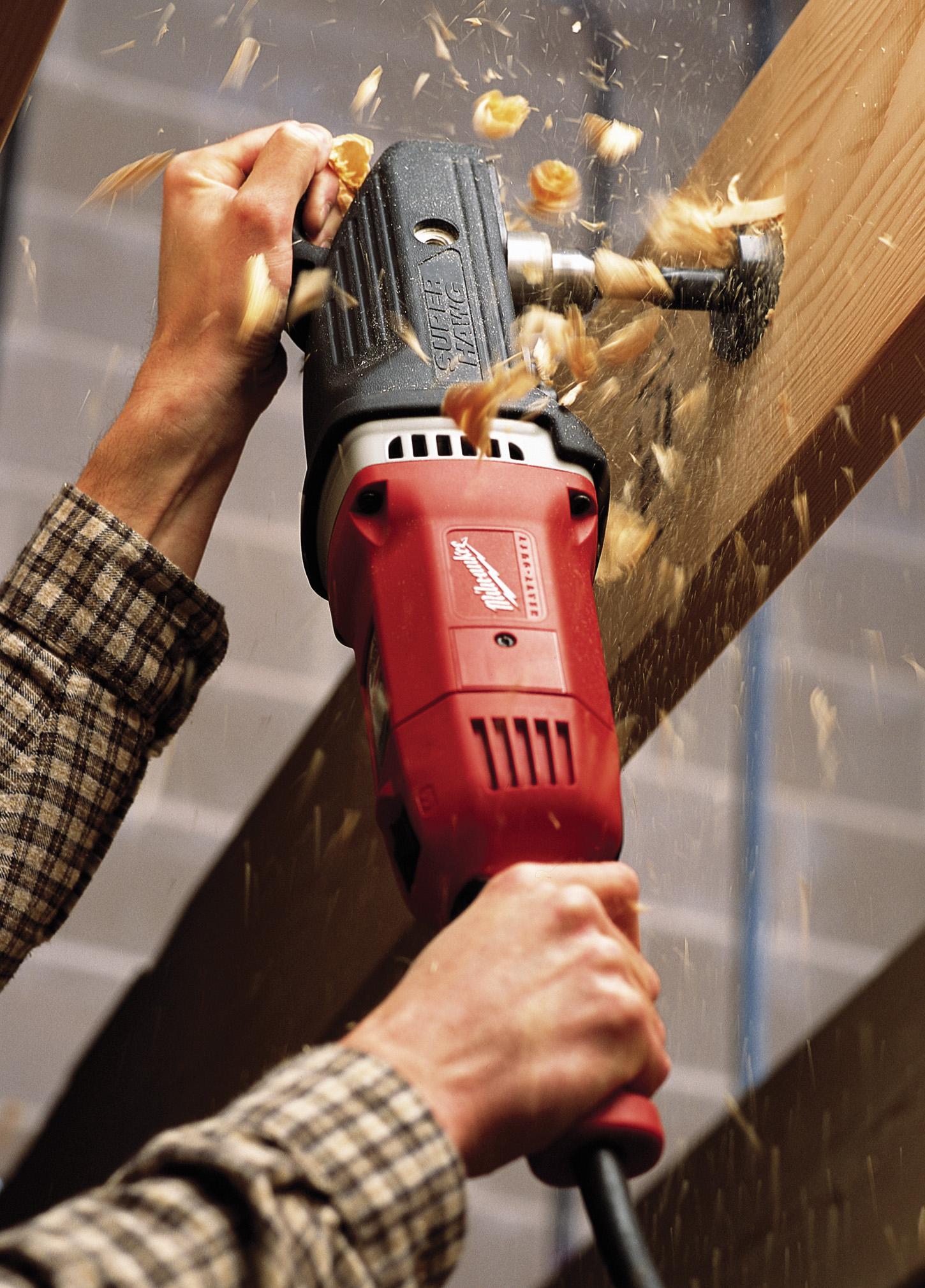

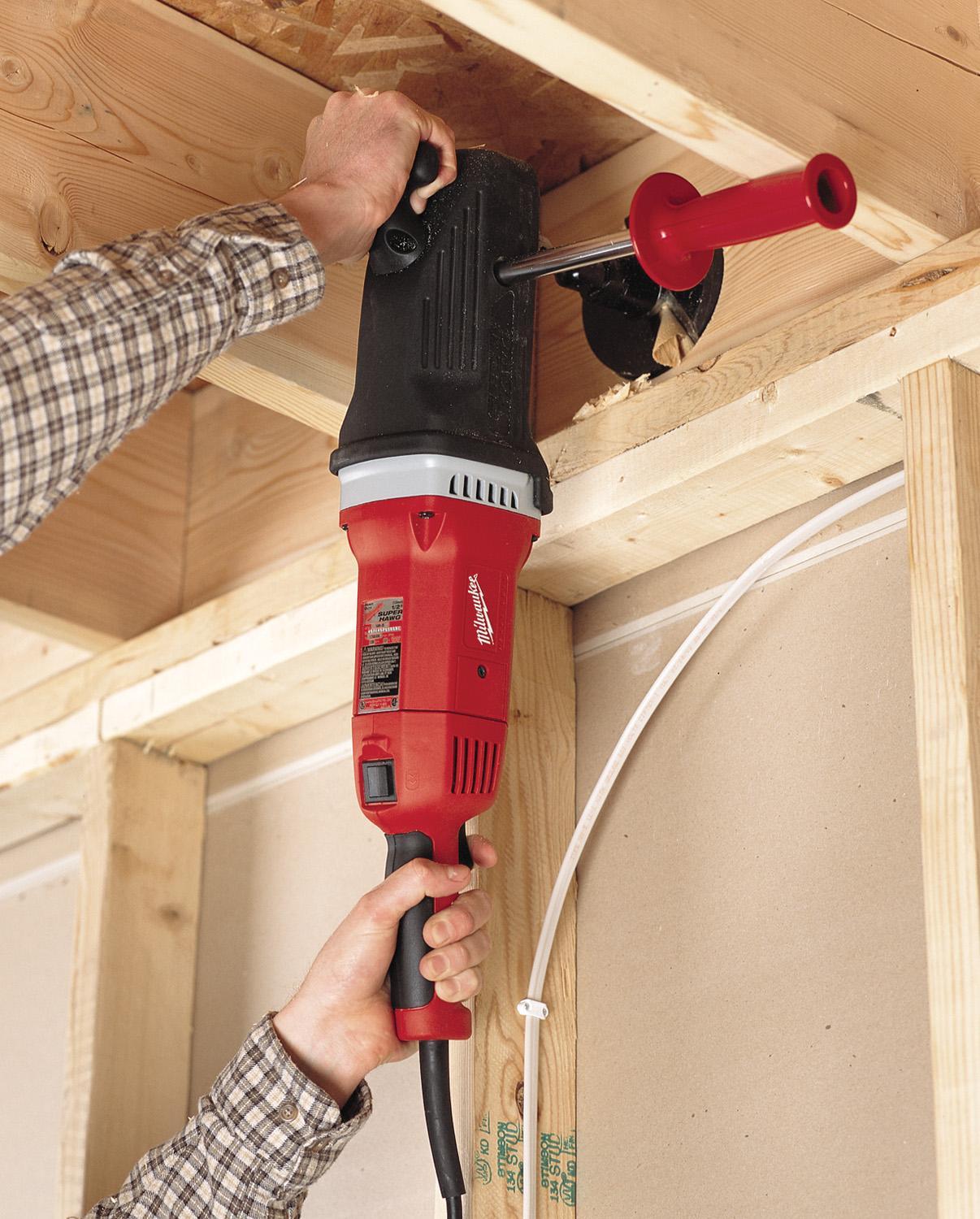

The 1/2 in. Super Hawg has power and speed for drilling holes of all sizes in wood frame construction. The 13 amp motor has two operating speeds of 1750 and 450 RPM with a clutch in the low gear range. Speed shifting is easy. The comfort grip Roto-Lok handle features 3 positions with 90 degree left-right rotation for maximum operator comfort for all applications.
Milwaukee® Electric Drill, Grounded, 1/2 in Chuck, Keyed Chuck, 450 to 1750 rpm Speed, 643 in-lb Torque, 120 V AC, 13 A, Metal Housing Material, In-Line Handle, Black/Gray/Red, Variable Speed Trigger Switch Control, 22 in Overall Length
SPECIFICATIONS
| Tool/Kit | : Kit |
| Type | : Grounded |
| Chuck Size | : 1/2 in |
| Chuck Type | : Keyed |
| Speed | : 450 to 1750 rpm |
| Torque Rating | : 643 in-lb |
| Voltage Rating | : 120 V AC |
| Amperage Rating | : 13 A |
| Housing Material | : Metal |
| Handle Type | : In-Line |
| Color | : Black/Gray/Red |
| Control Type | : Variable Speed Trigger Switch |
| Overall Length | : 22 in |
APPLICATION INFO
| Standard/Approvals | : CSA Certified|UL Listed |
| Application | : Drilling Holes of All Sizes in Wood Frame Construction |
| Country of Origin | : CN |
