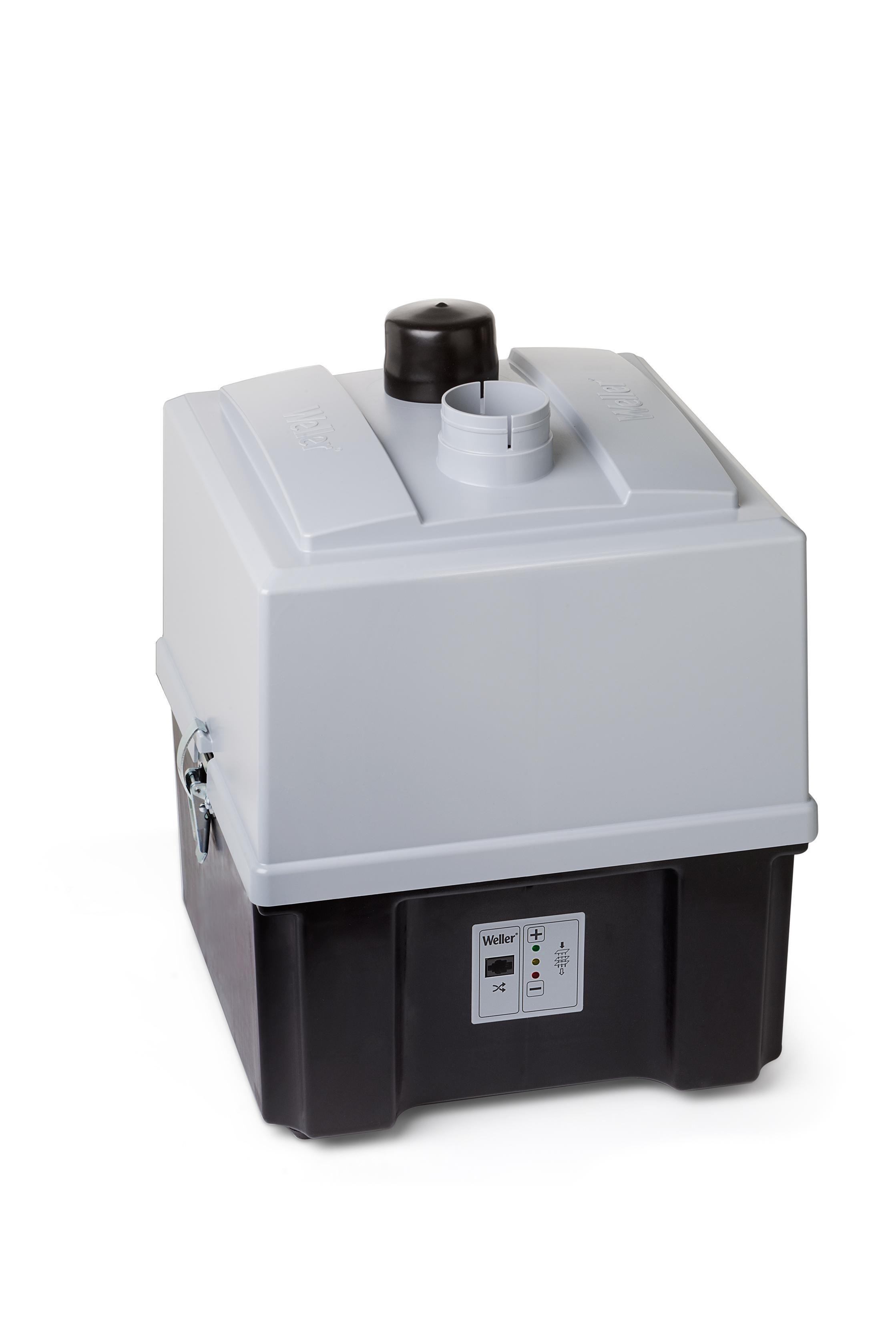

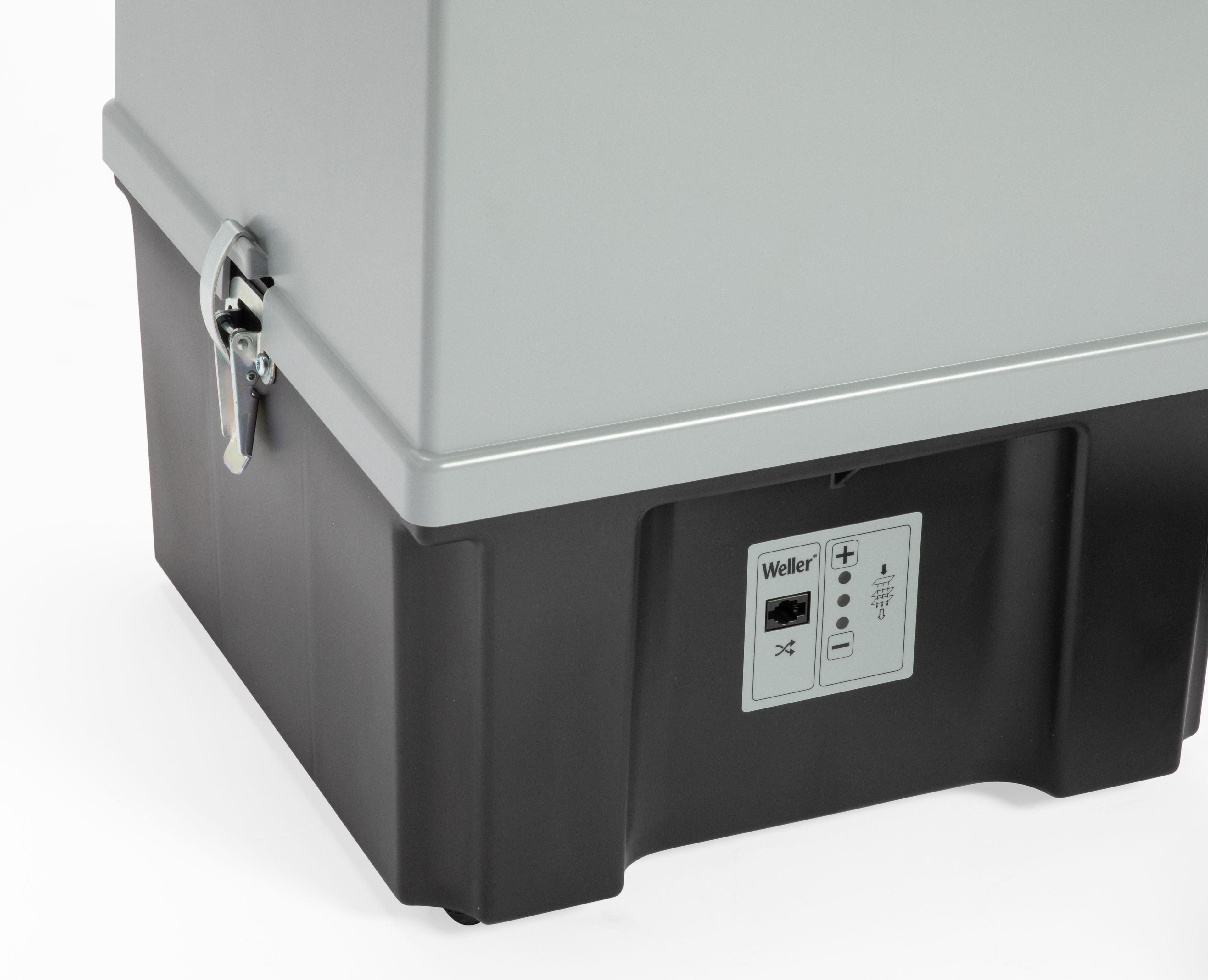

Weller® ZEROSMOGTLN Zero Smog® TL Fume Extraction Unit, 120 V AC, 1.25 A, 60 Hz, 10% Active Carbon Foam Filter Media, 190 Lpm Air Flow
Weller® ZEROSMOGTLN Zero Smog® TL Fume Extraction Unit, 120 V AC, 1.25 A, 60 Hz, 10% Active Carbon Foam Filter Media, 190 Lpm Air Flow
Weller® ZEROSMOGTLN Zero Smog® TL Fume Extraction Unit, 120 V AC, 1.25 A, 60 Hz, 10% Active Carbon Foam Filter Media, 190 Lpm Air Flow
- Brand: Weller®
- Mfr# : ZEROSMOGTLN
- Item # : CPO ZEROSMOGTLN
- UPC #: 037103310408
- Min. Order Qty: :
- Qty. Interval: :
Instruction/Installation Manual
FEATURES
- Fume extraction system purifies air up to 2 workplaces, included funnel nozzle for applications where a larger area needs to be covered and the funnel nozzle can be placed directly on the work bench
- Visual and audible filter-full alarm
- Quiet operation
- Easily operated and easy filter replacement
- Variable speed setting
- For connection to a WX / WT station a T0058768767 WT Hub is needed
- Exceptionally long service life due to maintenance free brushless EC turbine
DESCRIPTION
The Zero Smog TL fume extraction system is specifically designed for continuous operation in industrial environments. With its small footprint, it is perfect for use as a small central system and purifies air up to 2 workplaces. The maintenance free brushless EC turbine provides continuous fume extraction.
Weller® Fume Extraction Unit, Series: Zero Smog® TL, 120 V AC, 1.25 A, 60 Hz Frequency, 10% Active Carbon Foam Filter Media, 190 Lpm Air Flow, 13.1 in Width, 13 in Depth, 17-1/2 in Height
SPECIFICATIONS
| Series | : Zero Smog® TL |
| Voltage Rating | : 120 V AC |
| Amperage Rating | : 1.25 A |
| Frequency Rating | : 60 Hz |
| Filter Media | : 10% Active Carbon Foam |
| Air Flow Rate | : 190 Lpm |
| Width | : 13.1 in |
| Depth | : 13 in |
| Height | : 17-1/2 in |
APPLICATION INFO
| Standard/Approvals | : RoHS Compliant |
| Country of Origin | : HU |
