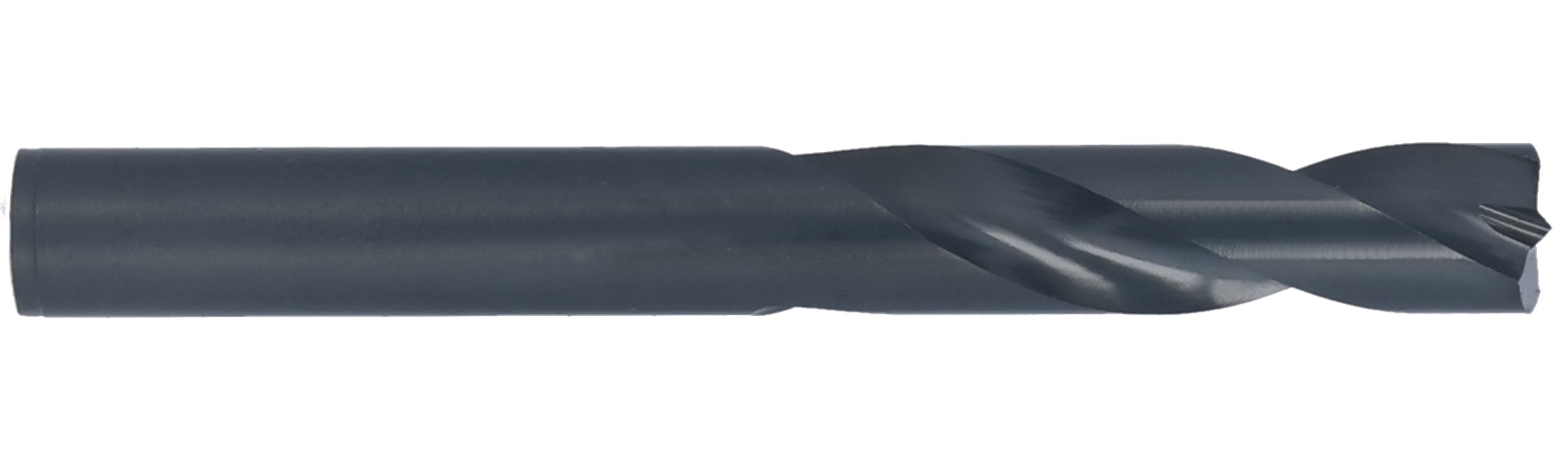

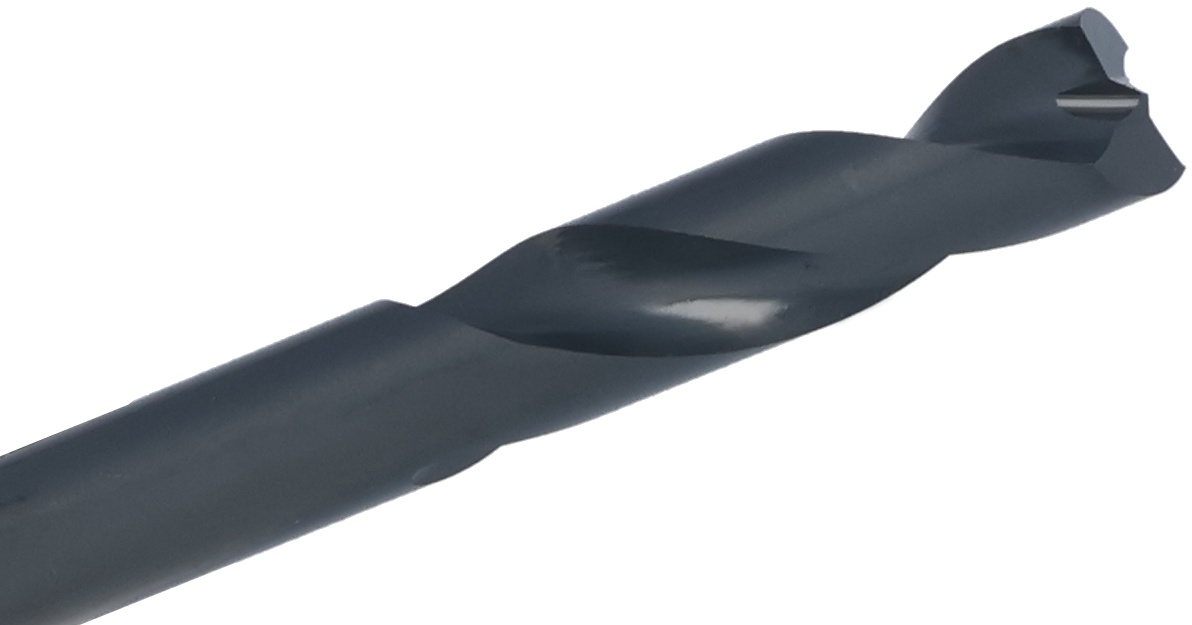

Cle-Line® C20989 2195 Welding Point Drill, 8 mm Dia, 79 mm OAL, M42 HSS-Co 8, Oxide Treated
Cle-Line® C20989 2195 Welding Point Drill, 8 mm Dia, 79 mm OAL, M42 HSS-Co 8, Oxide Treated
- Brand: Cle-Line®
- Mfr# : C20989
- Item # : GRE C20989
- UPC #: 697334209898
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Designed to drill rivet holes and other applications in thin sheet metal
DESCRIPTION
The CLE-LINE 2195 is a metric welding point cobalt drill with a straw oxide finish and straight shank, delivering reliable and precise drilling in materials such as cast iron, aluminum, and titanium. Designed for drilling rivet holes and other applications in thin sheet metal, it is ideal for hand-held use.
Cle-Line® Welding Point Drill, Series: 2195, 8 mm Diameter, 79 mm Overall Length, 37 mm Cutting Depth, 2 Flutes, Spiral Flute, 37 mm Flute Length, 8 mm Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, M42 HSS-Co 8 Cutting Edge, M42 HSS-Co 8, Oxide Treated, Applicable Materials: Sheet Metal
SPECIFICATIONS
| Series | : 2195 |
| Diameter | : 8 mm |
| Overall Length | : 79 mm |
| Cutting Depth | : 37 mm |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Flute Length | : 37 mm |
| Shank Size | : 8 mm |
| Shank Type | : Straight |
| Point Angle | : 135 deg |
| Point Type | : Split |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : M42 HSS-Co 8 |
| Material | : M42 HSS-Co 8 |
| Finish | : Oxide Treated |
| Applicable Materials | : Sheet Metal |
APPLICATION INFO
| Application | : For hand drilling |
| Country of Origin | : US |
