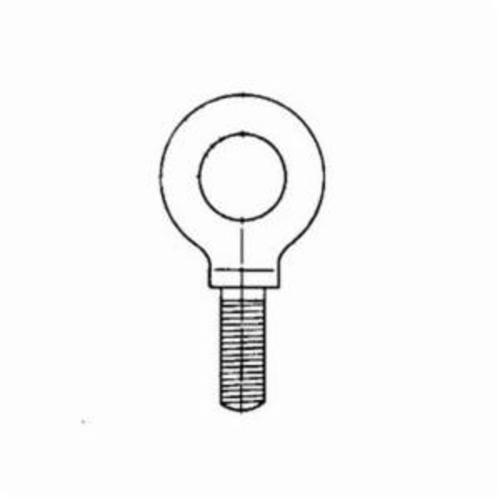

Armstrong® 89-022 Shoulder Pattern Eye Bolt, 5/16-18, 1-1/8 in L Shank, Carbon Steel
Armstrong® 89-022 Shoulder Pattern Eye Bolt, 5/16-18, 1-1/8 in L Shank, Carbon Steel
- Brand: Armstrong®
- Mfr# : 89-022
- Item # : ARM 89-022
- UPC #: 781412890228
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Maximum working loads were determined and actual lifts should be accomplished by using a very slow, steady pull
- Angular lifts place additional stress on a lifting eye and should be avoided
- Lifting eyes should never be ground, machined, metal stamped or altered in any way
- Lifting eyes capabilities can be affected by temperature
- Lifting eyes should be routinely inspected
- 225 lb at 30 deg of max load
- Shoulder pattern lifting eyes are recommended for use whenever possible since there is no guarantee that a load will not be subjected to an angular lift and forces
DESCRIPTION
Armstrong® Eye Bolt, Shoulder Pattern, Measurement System: Imperial, 5/16-18 Thread, 1-1/8 in Shank Length, Carbon Steel, 7/8 in ID Eye, 1-7/16 in OD Eye, UNC Thread, 800 lb Working Load, 1-1/8 in Thread Length, C1030 Grade
SPECIFICATIONS
| Type | : Shoulder Pattern |
| Measurement System | : Imperial |
| Diameter - Thread Size | : 5/16-18 |
| Shank Length | : 1-1/8 in |
| Material | : Carbon Steel |
| Inside Eye Diameter | : 7/8 in |
| Outside Eye Diameter | : 1-7/16 in |
| Thread Type | : UNC |
| Working Load | : 800 lb |
| Thread Length | : 1-1/8 in |
| Grade | : C1030 |
APPLICATION INFO
| Standard/Approvals | : ASME B18.15-2008 |
| Application | : Lifting |
| Country of Origin | : US |
