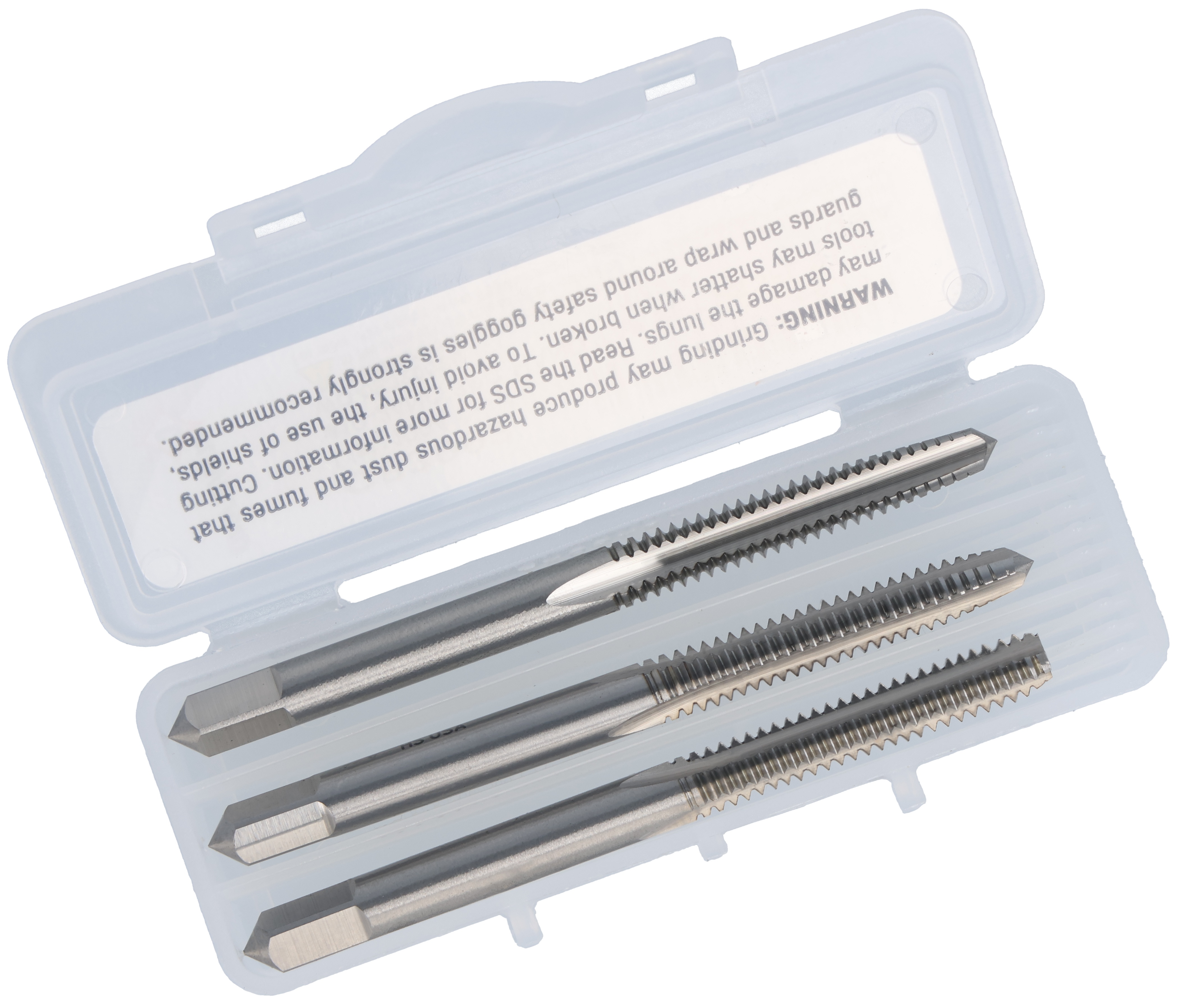

Cle-Line® C63204 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D3 Thread Limit
Cle-Line® C63204 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D3 Thread Limit
Cle-Line® C63204 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D3 Thread Limit
- Brand: Cle-Line®
- Mfr# : C63204
- Item # : GRE C63204
- UPC #: 697334632047
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
DESCRIPTION
Cle-Line® Hand Tap Set, Standard Straight Flute Straight Shank, Series: 0404M, Measurement System: Metric, 3 Piece, M3x0.5 Size, 15.88 mm Thread Length, 49.21 mm Overall Length, 3 Flutes, Right Hand Cutting Direction, 3.58 mm Shank Diameter, Bottoming/Plug/Taper Chamfer, D3 Thread Limit, 4.76 mm L x 2.79 mm W Square, HSS, Bright, Rose Plastic® UniBox Package Type
SPECIFICATIONS
| Type | : Standard Straight Flute Straight Shank |
| Series | : 0404M |
| Measurement System | : Metric |
| Number of Pieces | : 3 |
| Size | : M3x0.5 |
| Thread Length | : 15.88 mm |
| Overall Length | : 49.21 mm |
| Number of Flutes | : 3 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 3.58 mm |
| Chamfer | : Bottoming/Plug/Taper |
| Thread Limit | : D3 |
| Square Size | : 4.76 mm L x 2.79 mm W |
| Material | : HSS |
| Finish/Coating | : Bright |
| Package Type | : Rose Plastic® UniBox |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 302 |
| Application | : For maintenance applications |
