Cleveland® C41297 HG-4B Ball Nose Center Cutting General Purpose Single End End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Uncoated

Cleveland® C41297 GRE C41297

Cleveland® C41297 HG-4B Ball Nose Center Cutting General Purpose Single End End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Uncoated

Cleveland® C41297 HG-4B Ball Nose Center Cutting General Purpose Single End End Mill, 5/8 in Dia Cutter, 1-5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 3-3/4 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C41297
  • Item # : GRE C41297
  • UPC #: 697334412977
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
  • Multi-flute end mills have a heavy duty cross section for better rigidity
  • Increased number of flutes mean more cutting edges, providing more cutting action
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Applicable on alloy steel, tool steel, cast iron and copper alloys

DESCRIPTION

The CLEVELAND HG-4B general-purpose finisher tip features high-speed steel construction with a bright finish, a ball end, and a heavy cross-section, designed in ANSI sizes to provide enhanced rigidity and reliable machining performance.

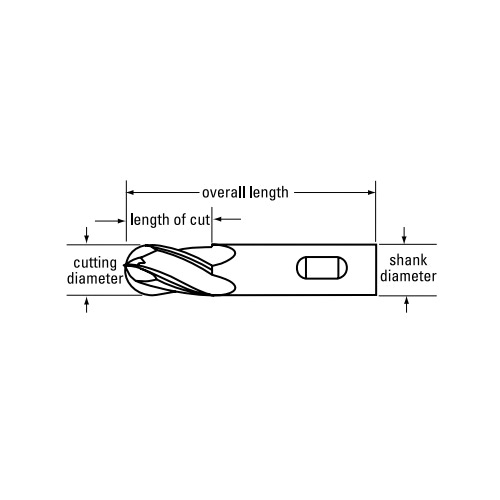

Cleveland® End Mill, Ball Nose Center Cutting General Purpose Single End, Series: HG-4B, 5/8 in Diameter Cutter, 3-3/4 in Overall Length, 1-5/8 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Uncoated

SPECIFICATIONS

Type      :    Ball Nose Center Cutting General Purpose Single End
Series      :    HG-4B
Cutter Diameter      :    5/8 in
Overall Length      :    3-3/4 in
Length of Cut      :    1-5/8 in
Number of Flutes      :    4
Flute Type      :    Spiral
Shank Diameter      :    5/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    HSS
Finish      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
Country of Origin      :    US
