Bassett B52803 MDE-2 Center Cutting Double End General Purpose Square End Stub Length End Mill, 3/32 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Bassett B52803 MCT B52803

Bassett B52803 MDE-2 Center Cutting Double End General Purpose Square End Stub Length End Mill, 3/32 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

Bassett B52803 MDE-2 Center Cutting Double End General Purpose Square End Stub Length End Mill, 3/32 in Dia Cutter, 3/16 in Length of Cut, 2 Flutes, 1/8 in Dia Shank, 1-1/2 in OAL, Uncoated

  • Brand: Bassett
  • Mfr# : B52803
  • Item # : MCT B52803
  • UPC #: 662355339930
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 10% Cobalt submicron grain carbide substrate
  • 30 deg right hand spiral, right hand cut helix designed for maximum chip clearance
  • Double end mills economically increase productivity
  • Applicable on stainless steel, cast iron, high temperature alloys, non-ferrous materials, low carbon steels and plastics

DESCRIPTION

Bassett End Mill, Center Cutting Double End General Purpose Square End Stub Length, Series: MDE-2, 3/32 in Diameter Cutter, 1-1/2 in Overall Length, 3/16 in Length of Cut, 2 Flutes, Spiral Flute, 1/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight Shank, Solid Carbide, Uncoated

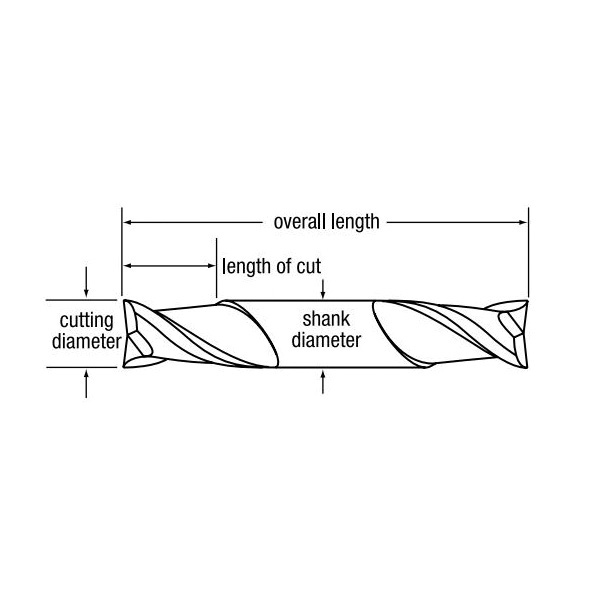

SPECIFICATIONS

Type      :    Center Cutting Double End General Purpose Square End Stub Length
Series      :    MDE-2
Cutter Diameter      :    3/32 in
Overall Length      :    1-1/2 in
Length of Cut      :    3/16 in
Number of Flutes      :    2
Flute Type      :    Spiral
Shank Diameter      :    1/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight
Material      :    Solid Carbide
Finish      :    Uncoated

APPLICATION INFO

Application      :    Plunging, Slotting and Heavy Peripheral Cuts
