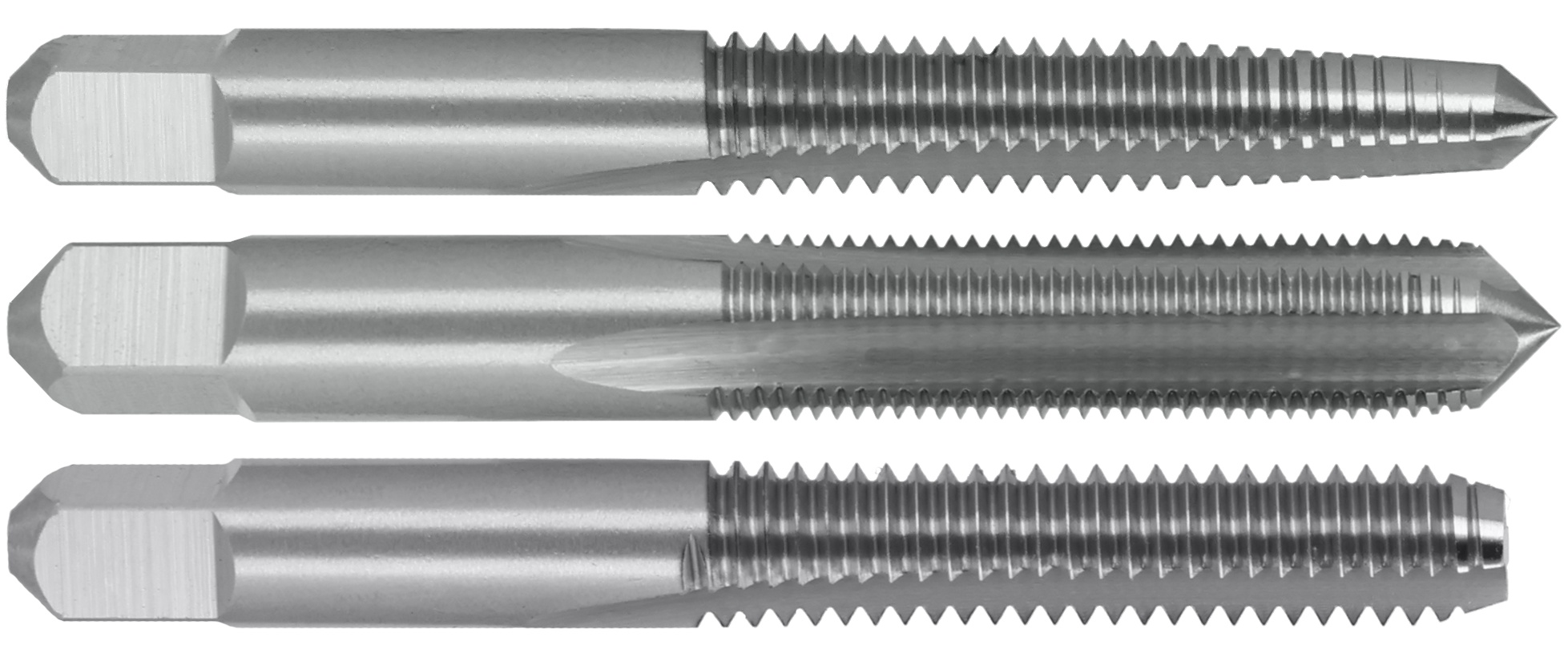

Cleveland® C54249 1004 Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D4 Thread Limit
Cleveland® C54249 1004 Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D4 Thread Limit
Cleveland® C54249 1004 Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D4 Thread Limit
- Brand: Cleveland®
- Mfr# : C54249
- Item # : GRE C54249
- UPC #: 697334542490
- Min. Order Qty: :
- Qty. Interval: :
DESCRIPTION
Cleveland® Hand Tap Set, Standard Straight Flute Straight Shank, Series: 1004, Measurement System: Metric, 3 Piece, M4x0.7 Size, 9.65 mm Thread Length, 54.1 mm Overall Length, 4 Flutes, Right Hand Cutting Direction, 4.27 mm Shank Diameter, Bottoming/Plug/Taper Chamfer, D4 Thread Limit, 6.35 mm L x 3.33 mm W Square, HSS, Bright, Rose Plastic® UniBox Package Type
SPECIFICATIONS
| Type | : Standard Straight Flute Straight Shank |
| Series | : 1004 |
| Measurement System | : Metric |
| Number of Pieces | : 3 |
| Size | : M4x0.7 |
| Thread Length | : 9.65 mm |
| Overall Length | : 54.1 mm |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 4.27 mm |
| Chamfer | : Bottoming/Plug/Taper |
| Thread Limit | : D4 |
| Square Size | : 6.35 mm L x 3.33 mm W |
| Material | : HSS |
| Finish/Coating | : Bright |

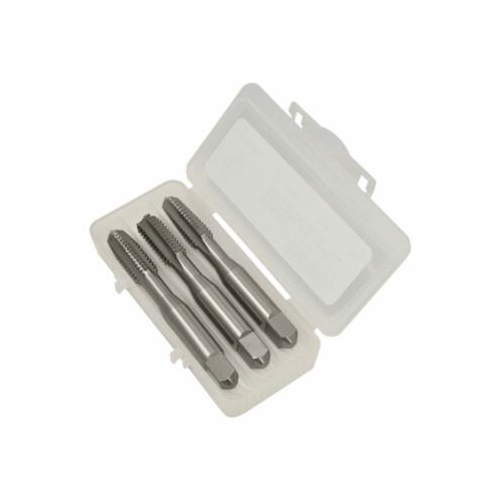

| Package Type | : Rose Plastic® UniBox |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 302 |
| Application | : For general purpose applications |
| Country of Origin | : US |
