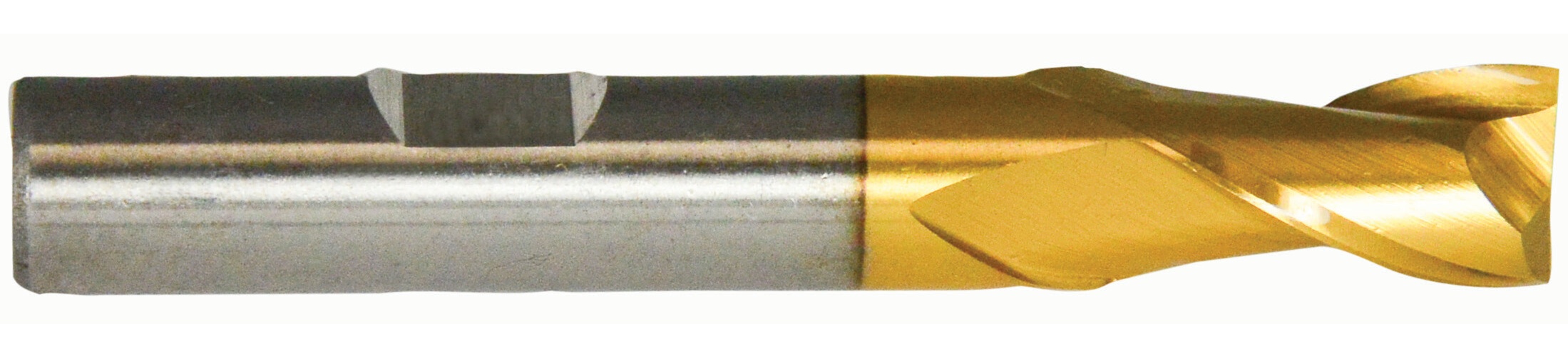

Cleveland® C39088 HG-2 Center Cutting General Purpose Single End Square End End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 4 in OAL, TiN
Cleveland® C39088 HG-2 Center Cutting General Purpose Single End Square End End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 4 in OAL, TiN
Cleveland® C39088 HG-2 Center Cutting General Purpose Single End Square End End Mill, 1/2 in Dia Cutter, 2 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 4 in OAL, TiN
- Brand: Cleveland®
- Mfr# : C39088
- Item # : GRE C39088
- UPC #: 697334390886
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Tip coated with TiN for a super hard surface with high lubricity
DESCRIPTION
The CLEVELAND HG-2-TN finisher tip features high-speed steel construction with a TiN coating and a square end, designed in ANSI sizes to ensure efficient and precise machining in steel and cast iron.
Cleveland® End Mill, Center Cutting General Purpose Single End Square End, Series: HG-2, 1/2 in Diameter Cutter, 4 in Overall Length, 2 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, TiN
SPECIFICATIONS
| Type | : Center Cutting General Purpose Single End Square End |
| Series | : HG-2 |
| Cutter Diameter | : 1/2 in |
| Overall Length | : 4 in |
| Length of Cut | : 2 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Shank Diameter | : 1/2 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : HSS |
| Finish | : TiN |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Finishing Applications |
| Country of Origin | : US |
