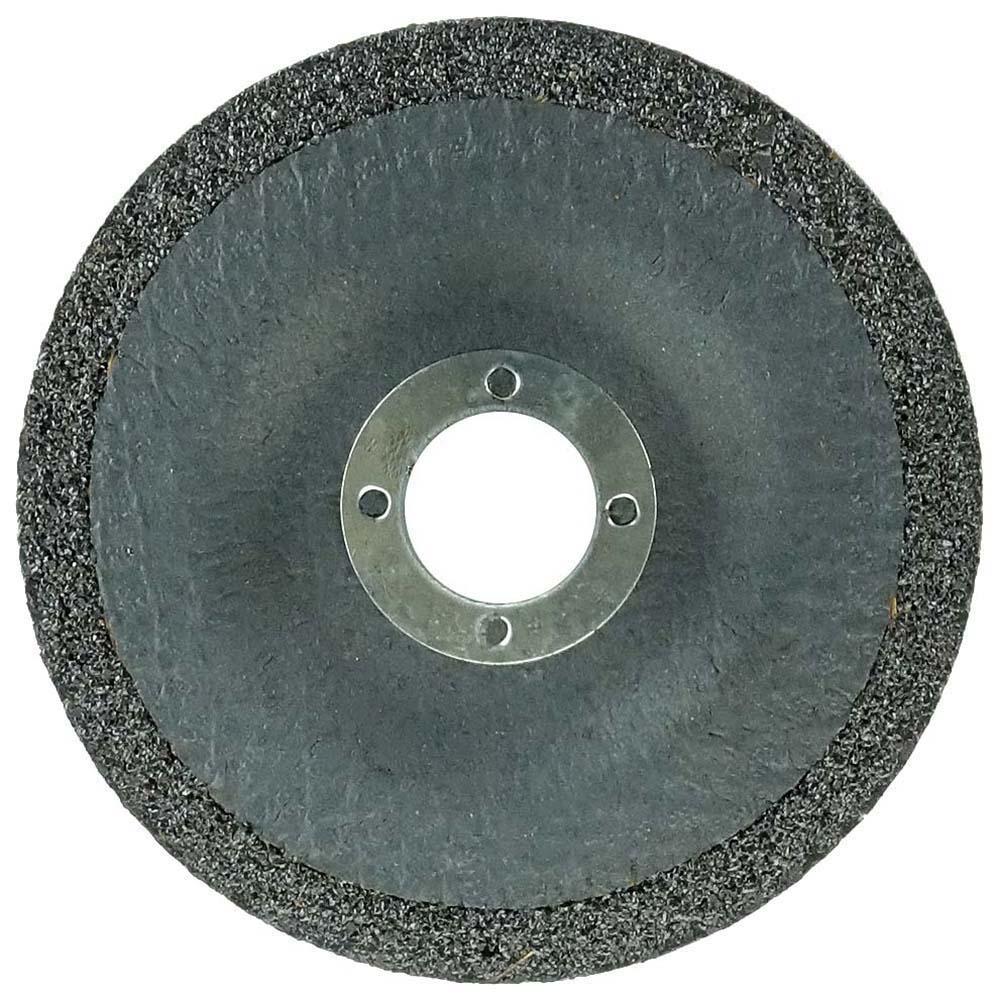

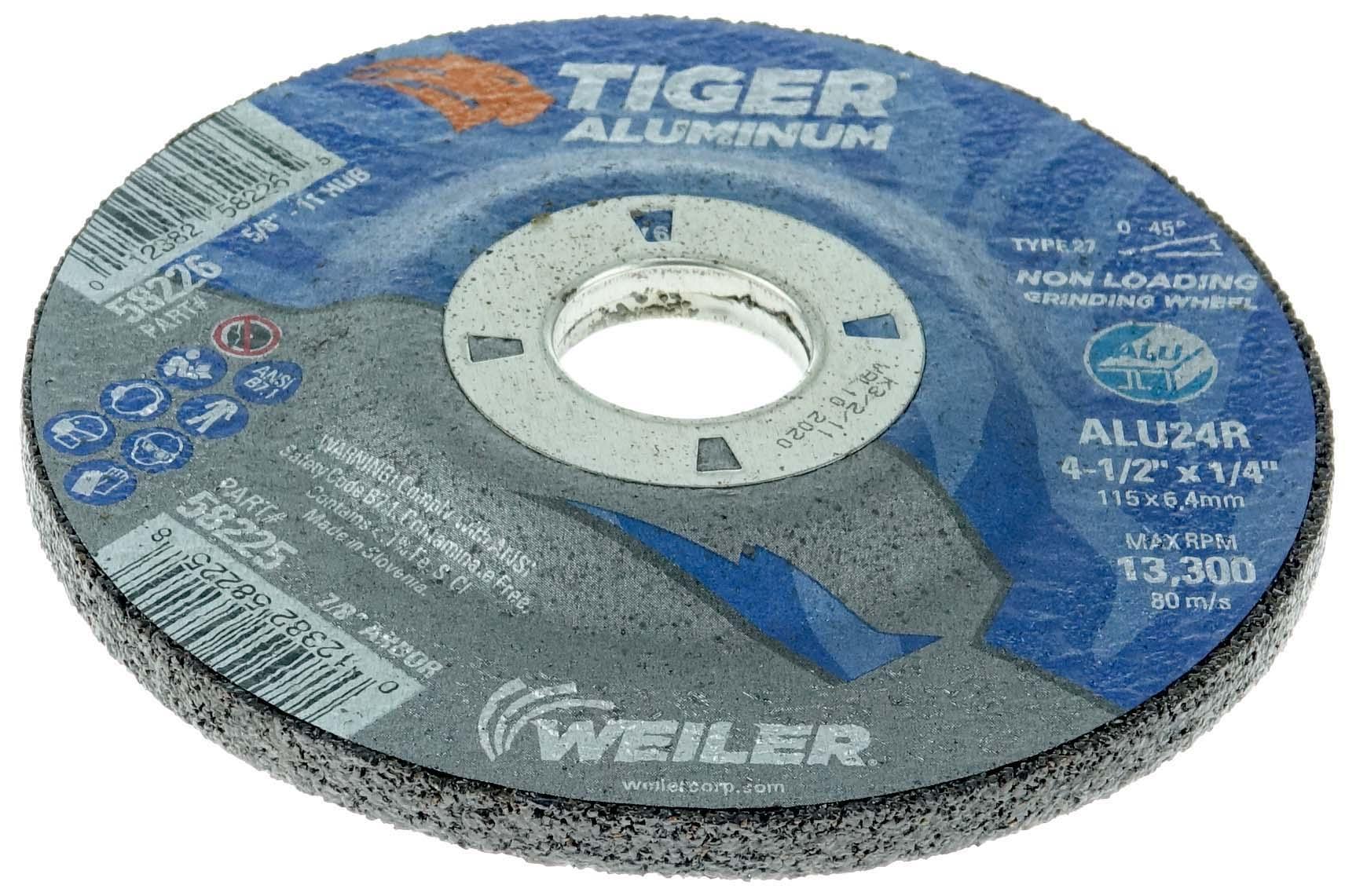

Tiger® Aluminum 58225 Contaminant-Free Non-Loading Performance Line Depressed Center Grinding Wheel, 4-1/2 in Dia 1/4 in THK, 7/8 in Center Hole, 24 Grit, Silicon Carbide/Aluminum Oxide Abrasive
Tiger® Aluminum 58225 Contaminant-Free Non-Loading Performance Line Depressed Center Grinding Wheel, 4-1/2 in Dia 1/4 in THK, 7/8 in Center Hole, 24 Grit, Silicon Carbide/Aluminum Oxide Abrasive
Tiger® Aluminum 58225 Contaminant-Free Non-Loading Performance Line Depressed Center Grinding Wheel, 4-1/2 in Dia 1/4 in THK, 7/8 in Center Hole, 24 Grit, Silicon Carbide/Aluminum Oxide Abrasive
- Brand: Tiger® Aluminum
- Mfr# : 58225
- Item # : WEI 58225
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Non-loading formula keeps the wheel from gumming up, allowing operators to get more work done in less time without compromising durability
- Silicon carbide and aluminum oxide blend delivers a consistently high cut rate throughout the life of the wheel
- Designed with fiberglass cut back from the edge to provide instant aggressive grinding right out of the box
- Triple fiberglass reinforcement provides added strength for aggressive stock removal
- Open arbor offers a cost-effective mounting option when using adapting nuts
- Best for use on aluminum
DESCRIPTION
Fabricators know aluminum can be a challenging metal to work with because of its low melting temperature and tendency to load and stop cutting. That's why Weiler designed a new line of cutting and grinding wheels that deliver a non-loading solution that maximizes cut rates, increasing productivity when working with aluminum. These wheels leverage a unique blend of abrasive grains and contaminant free additives that work to prevent loading, resulting in higher cut rates and long wheel life.
Tiger® Aluminum, 58225, Depressed Center Grinding Wheel, Contaminant-Free Non-Loading Performance Line, 4-1/2 in Wheel Diameter, 1/4 in Wheel, 7/8 in Center Hole, Arbor Connector, 24 Grit, Coarse Grade, Silicon Carbide/Aluminum Oxide Abrasive, Wheel Type Number: Type 27, 13300 rpm Maximum, Resin Bond, Applicable Materials: Aluminum, Reinforced: Yes
SPECIFICATIONS
| Type | : Contaminant-Free Non-Loading Performance Line |
| Wheel Diameter | : 4-1/2 in |
| Wheel Thickness | : 1/4 in |
| Center Hole Size | : 7/8 in |
| Connector Type | : Arbor |
| Grit | : 24 |
| Grade | : Coarse |
| Abrasive Material | : Silicon Carbide/Aluminum Oxide |
| Wheel Type Number | : Type 27 |
| Maximum Speed | : 13300 rpm |
| Bond Type | : Resin |
| Applicable Materials | : Aluminum |
| Wheel Hardness | : R |
| Reinforced | : Yes |
APPLICATION INFO
| Application | : Aluminum Cutting, Grinding, Heavy Stock Removal, Weld Removal, Weld Blending, Edge Beveling, Chamfering, Scale Removal and Torch-Cut Softening |
| Country of Origin | : SI |
