CDI Torque Products® 1001-I-ETT Electronic Torque Tester, 10 to 100 in-lb Turbidity, LCD Display

CDI Torque Products® 1001-I-ETT CDI 1001-I-ETT

CDI Torque Products® 1001-I-ETT Electronic Torque Tester, 10 to 100 in-lb Turbidity, LCD Display

CDI Torque Products® 1001-I-ETT Electronic Torque Tester, 10 to 100 in-lb Turbidity, LCD Display

  • Brand: CDI Torque Products®
  • Mfr# : 1001-I-ETT
  • Item # : CDI 1001-I-ETT
  • UPC #: 662459264213
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List
  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CDI_Torque_Products_1001_I_ETT_Catalog.pdf

FEATURES

  • Accuracy - (+/-) 0.5 Percent of indicated value, cw and ccw, from 10 Percent to 100 Percent of full scale + 1 increment or least significant digit
  • Unique neck design allows the operator to see the LCD display when testing long torque wrenches
  • Four modes of operation - peak mode, power tool mode, first peak mode, and track mode
  • Auto/manual display reset
  • Designed to be a sturdy low-cost tester, ETT can be placed on the wall in the factory, on a portable cart or on a bench allowing operators to test torque wrenches or power tools without having to leave their station
  • Reads bi-directionally (cw and ccw)
  • Integral transducer and sturdy housing allow mounting in virtually any position
  • Dual scale (English/Nm or English/cNm, dNm)
  • Use joint simulator with Power Tools
  • Rechargeable NiCad batteries

DESCRIPTION

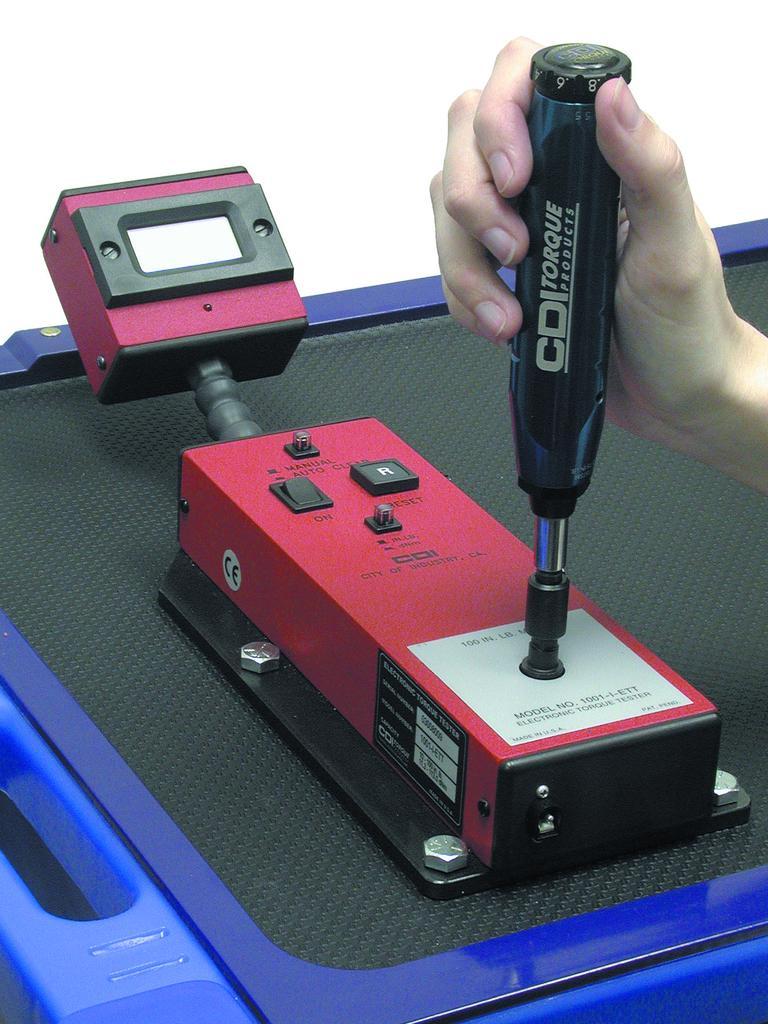

The ETT (Electronic Torque Tester) is CDI's portable torque tester. Unlike a torque calibration system, which can be used to generate a torque wrench certification, the ETT is a portable, battery powered stand-alone torque tester. It can also be used on AC power. Its primary use is to check the accuracy of dial and click type torque wrenches andtorque screwdrivers to maintain their accuracy in between calibrations. With the addition of a joint rate simulator, ETT can also check stall and clutch type pneumatic and electronic torque tools. It should not be used with any impact or pulse type tools. There are eight models with torque ranges from 10 inch ounces up to 600 foot pounds.

CDI Torque Products® Electronic Torque Tester, 10 to 100 in-lb Turbidity, LCD Display

SPECIFICATIONS

Turbidity Range      :    10 to 100 in-lb
Display Type      :    LCD

APPLICATION INFO

Country of Origin      :    US

Documents

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CDI_Torque_Products_1001_I_ETT_Catalog.pdf
