Cleveland® C42058 HD-2 Center Cutting Double End General Purpose Square End End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, Uncoated
Cleveland® C42058 HD-2 Center Cutting Double End General Purpose Square End End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, Uncoated
Cleveland® C42058 HD-2 Center Cutting Double End General Purpose Square End End Mill, 1/4 in Dia Cutter, 1/2 in Length of Cut, 2 Flutes, 3/8 in Dia Shank, 3-3/8 in OAL, Uncoated
- Brand: Cleveland®
- Mfr# : C42058
- Item # : GRE C42058
- UPC #: 697334420583
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
DESCRIPTION
The CLEVELAND HD-2 center cutting finisher tip features high-speed steel construction with a bright finish and 2 flutes, designed with a 30° helix and square end to deliver optimal performance in general-purpose milling.

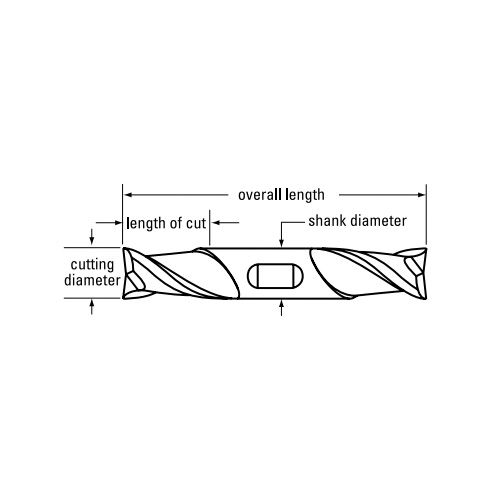

Cleveland® End Mill, Center Cutting Double End General Purpose Square End, Series: HD-2, 1/4 in Diameter Cutter, 3-3/8 in Overall Length, 1/2 in Length of Cut, 2 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Uncoated
SPECIFICATIONS
| Type | : Center Cutting Double End General Purpose Square End |
| Series | : HD-2 |
| Cutter Diameter | : 1/4 in |
| Overall Length | : 3-3/8 in |
| Length of Cut | : 1/2 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Shank Diameter | : 3/8 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : HSS |
| Finish | : Uncoated |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Finishing Applications |
| Country of Origin | : US |
