Cleveland® C64041 965B General Purpose Straight Flute Pipe Tap, 1/2-14 Thread
Cleveland® C64041 965B General Purpose Straight Flute Pipe Tap, 1/2-14 Thread
- Brand: Cleveland®
- Mfr# : C64041
- Item # : GRE C64041
- UPC #: 697334640417
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Ground thread for economical tapping
DESCRIPTION

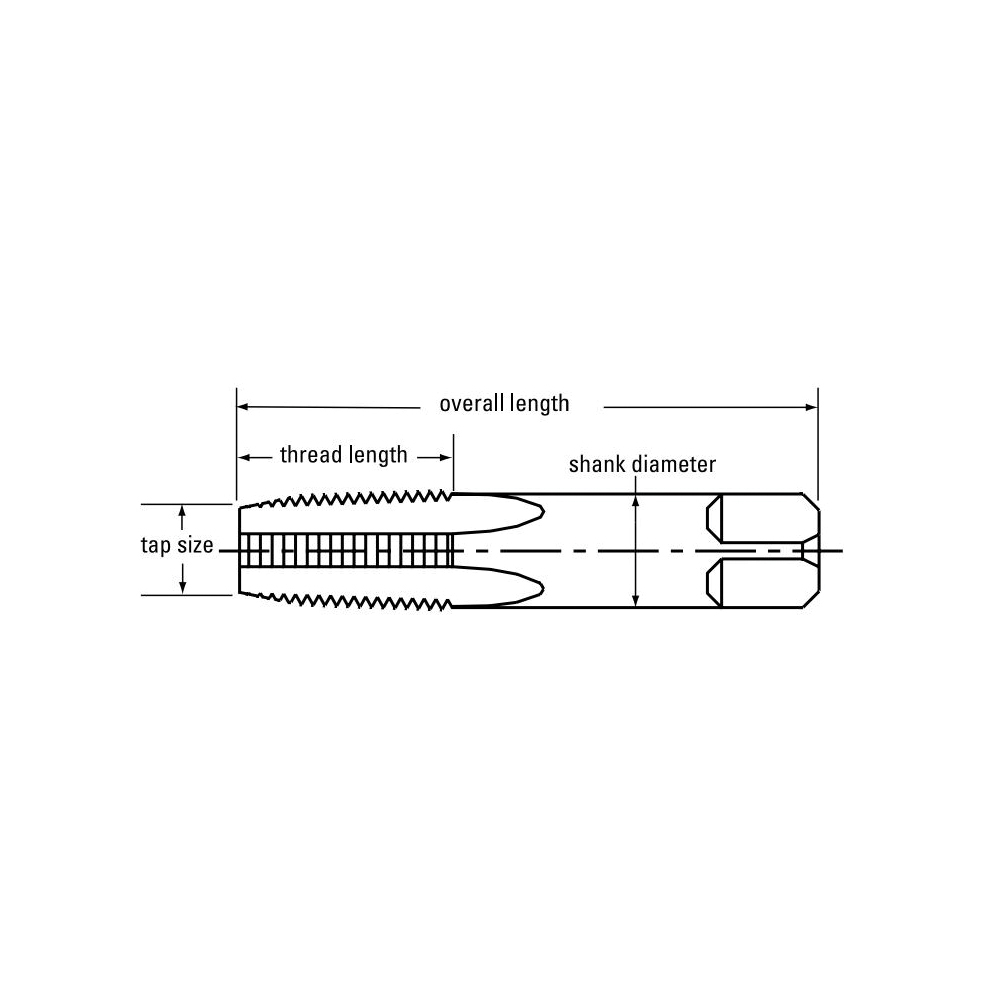

Cleveland® Pipe Tap, General Purpose Straight Flute, Series: 965B, Measurement System: Imperial, 1/2-14 Thread, NPT Thread Standard, Semi-Bottoming Chamfer, 1-3/8 in Thread Length, 3-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 11/16 in Shank Diameter, 0.515 in Square, HSS, Bright, Medium Hook
SPECIFICATIONS
| Type | : General Purpose Straight Flute |
| Series | : 965B |
| Measurement System | : Imperial |
| Thread Size | : 1/2-14 |
| Thread Standard | : NPT |
| Chamfer Type | : Semi-Bottoming |
| Thread Length | : 1-3/8 in |
| Overall Length | : 3-1/8 in |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 11/16 in |
| Square Size | : 0.515 in |
| Material | : HSS |
| Finish/Coating | : Bright |
| Hook Type | : Medium |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 311 |
| Application | : For thread cutting and blind hole applications |
| Country of Origin | : US |
