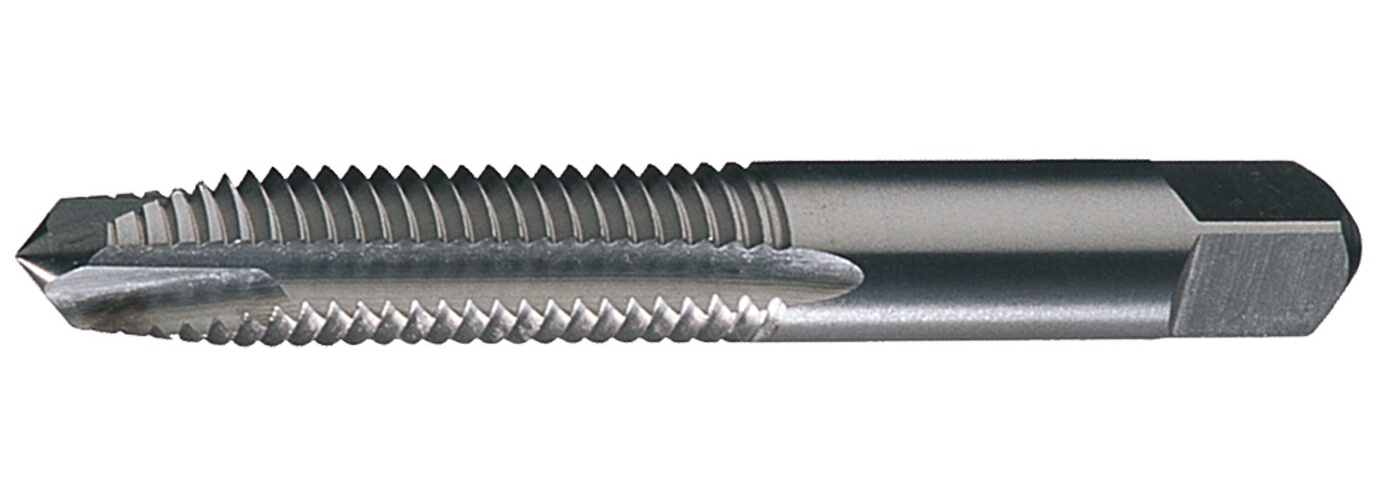

Cle-Line® C00796 411 Standard Spiral Point Machine Tap, Right Hand Cutting, 7/16-14 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Uncoated, HSS
Cle-Line® C00796 411 Standard Spiral Point Machine Tap, Right Hand Cutting, 7/16-14 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Uncoated, HSS
Cle-Line® C00796 411 Standard Spiral Point Machine Tap, Right Hand Cutting, 7/16-14 Thread, H3 Thread Limit, Plug Chamfer, 3 Flutes, Uncoated, HSS
- Brand: Cle-Line®
- Mfr# : C00796
- Item # : GRE C00796
- UPC #: 697334007968
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
DESCRIPTION
The CLE-LINE 0411 spiral point tap features high-speed steel (HSS) construction with a bright finish and plug chamfer, delivering efficient threading performance in through holes for steel, cast iron, and aluminum.
Cle-Line® Spiral Point Machine Tap, Standard, Series: 411, Measurement System: Imperial, Ground/UNC Thread Standard, 7/16-14 Thread, Plug Chamfer, 3 Flutes, HSS, Uncoated, Right Hand Cutting Direction, 1-7/16 in Thread Length, 3.1562 in Overall Length, 0.323 in Shank Diameter, 0.4062 in Shank Length, Cast Iron, Steel and Non-Ferrous Materials Material Application, H3 Thread Limit
SPECIFICATIONS
| Type | : Standard |
| Series | : 411 |
| Measurement System | : Imperial |
| Thread Standard | : UNC |
| Thread Size | : 7/16-14 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Cutting Direction | : Right Hand |
| Thread Length | : 1-7/16 in |
| Overall Length | : 3.1562 in |
| Shank Diameter | : 0.323 in |
| Shank Length | : 0.4062 in |
| Material Application | : Cast Iron, Steel and Non-Ferrous Materials |
| Thread Limit | : H3 |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 302 |
| Application | : For through hole and maintenance applications |
| Country of Origin | : US |
