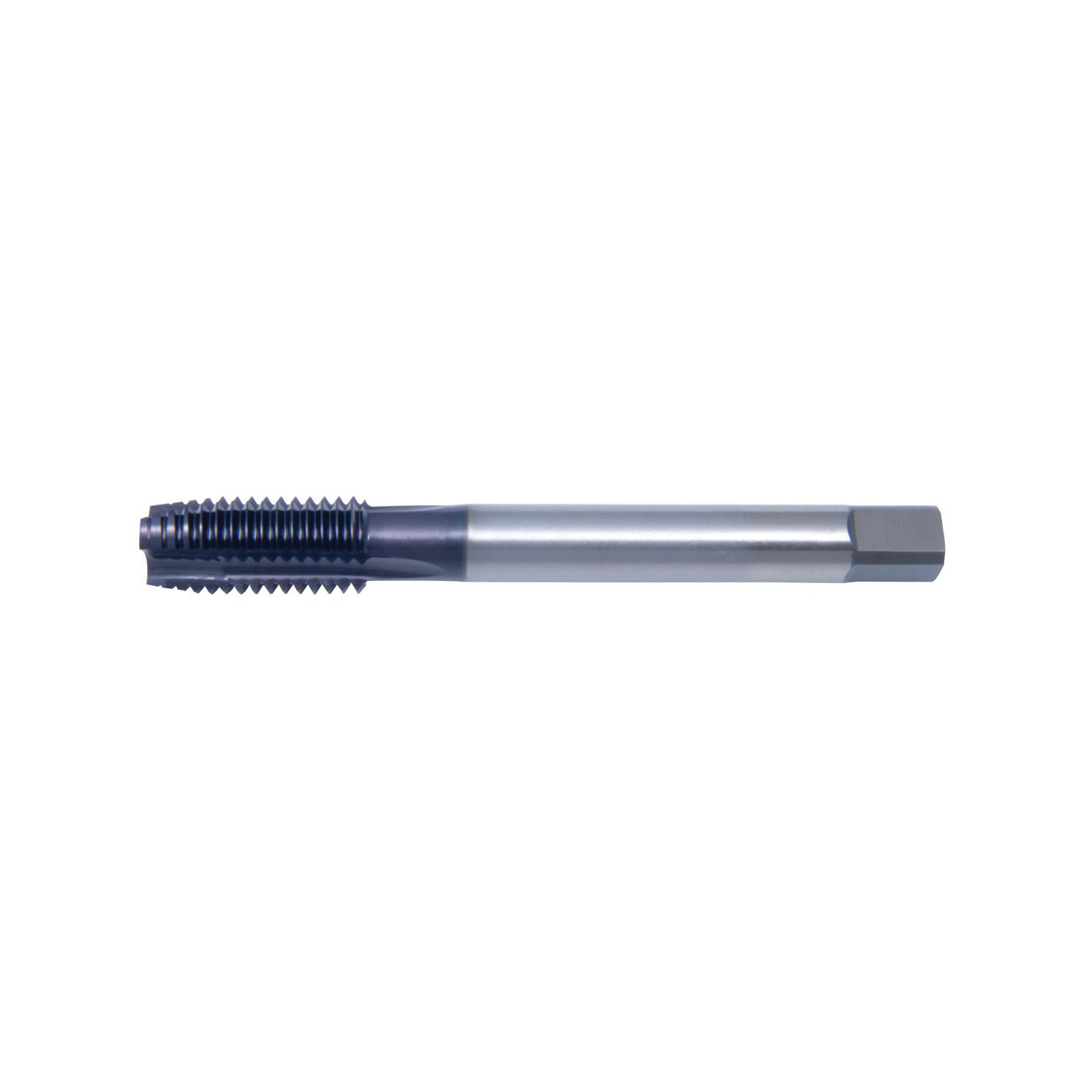

Cleveland® C96045 PER-960SP High Performance Spiral Point Machine Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, AlTiN/TiSiXN, HSS-E
Cleveland® C96045 PER-960SP High Performance Spiral Point Machine Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, AlTiN/TiSiXN, HSS-E
Cleveland® C96045 PER-960SP High Performance Spiral Point Machine Tap, Right Hand Cutting, M12x1.75 Thread, Plug Chamfer, 3 Flutes, AlTiN/TiSiXN, HSS-E
- Brand: Cleveland®
- Mfr# : C96045
- Item # : GRE C96045
- UPC #: 697334960454
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Ground Thread
DESCRIPTION
The CLEVELAND PER-960SP is a premium HSS spiral point thread mill with a hardlube finish, designed for durable and precise threading in thru holes in steel, stainless steel, and cast iron.

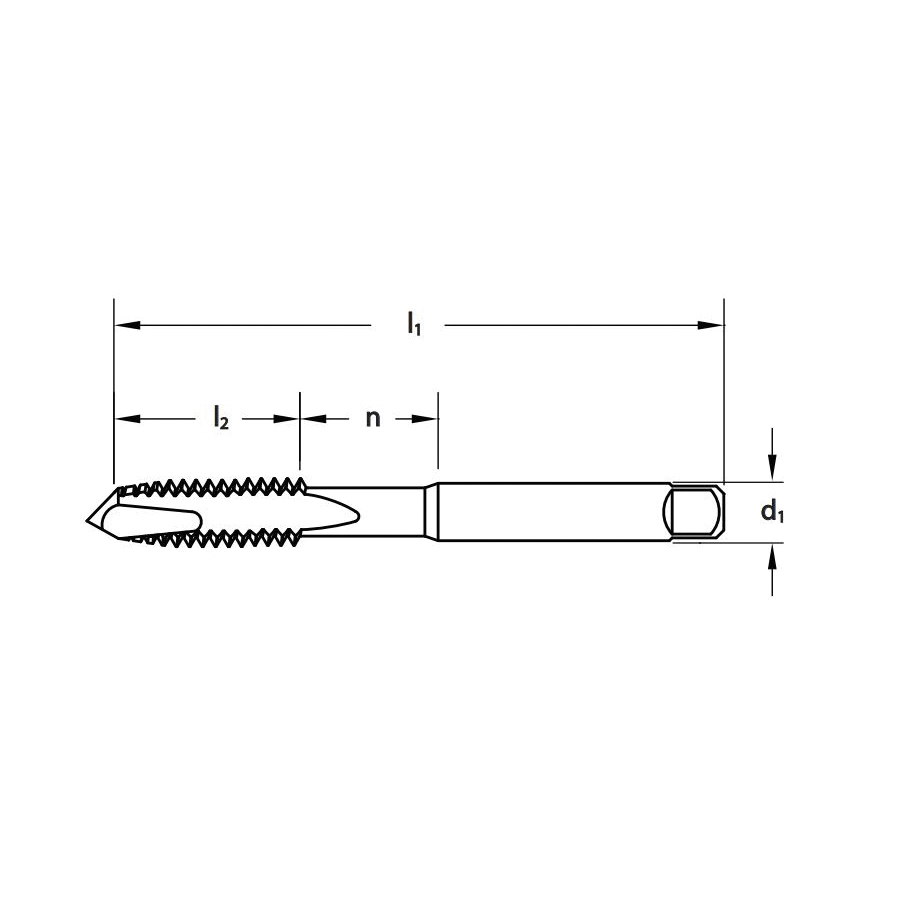

Cleveland® Spiral Point Machine Tap, High Performance, Series: PER-960SP, Measurement System: Metric, Ground/Coarse Thread Standard, M12x1.75 Thread, Plug Chamfer, 3 Flutes, HSS-E, AlTiN/TiSiXN, Class of Fit: 6H, Right Hand Cutting Direction, 29 mm Thread Length, 110 mm Overall Length, 9.32 mm Shank Diameter, 11.18 mm Shank Length, Steel and Stainless Steel Material Application
SPECIFICATIONS
| Type | : High Performance |
| Series | : PER-960SP |
| Measurement System | : Metric |
| Thread Standard | : M |
| Thread Size | : M12x1.75 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : AlTiN/TiSiXN |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 29 mm |
| Overall Length | : 110 mm |
| Shank Diameter | : 9.32 mm |
| Shank Length | : 11.18 mm |
| Material Application | : Steel and Stainless Steel |
APPLICATION INFO
| Standard/Approvals | : DIN Rated|ANSI/ASME Specified |
| Application | : For through hole applications |
| Country of Origin | : US |
