Cleveland® C32767 HGC-4B Ball Nose Center Cutting General Purpose Single End End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiN

Cleveland® C32767 GRE C32767

Cleveland® C32767 HGC-4B Ball Nose Center Cutting General Purpose Single End End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiN

Cleveland® C32767 HGC-4B Ball Nose Center Cutting General Purpose Single End End Mill, 3/8 in Dia Cutter, 3/4 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 2-1/2 in OAL, TiN

  • Brand: Cleveland®
  • Mfr# : C32767
  • Item # : GRE C32767
  • UPC #: 697334327677
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • High red hardness for high heat conditions
  • Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
  • Multi-flute end mills have a heavy duty cross section for better rigidity
  • Increased number of flutes mean more cutting edges, providing more cutting action
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • TiN (titanium nitride) coating in gold color intended for aggressive machining
  • TiN coating increase machining speed 25 to 30% versus bright speeds
  • Applicable on titanium alloys, nickel alloys, cobalt alloys and stainless stee

DESCRIPTION

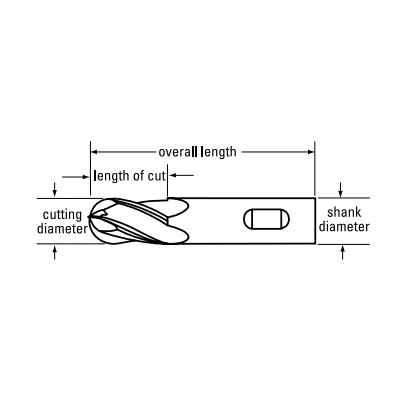

Cleveland® End Mill, Ball Nose Center Cutting General Purpose Single End, Series: HGC-4B, 3/8 in Diameter Cutter, 2-1/2 in Overall Length, 3/4 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, Cobalt 8/M42 HSS, TiN

SPECIFICATIONS

Type      :    Ball Nose Center Cutting General Purpose Single End
Series      :    HGC-4B
Cutter Diameter      :    3/8 in
Overall Length      :    2-1/2 in
Length of Cut      :    3/4 in
Number of Flutes      :    4
Flute Type      :    Spiral
Shank Diameter      :    3/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    Cobalt 8/M42 HSS
Finish      :    TiN

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
