Cle-Line® Edge Hog® C17601 1845 Imperial Carbide Burr, Flat End, Cylindrical Head, 3/32 in Dia Head, 7/16 in L of Cut, 1-1/2 in OAL, Single Cut
Cle-Line® Edge Hog® C17601 1845 Imperial Carbide Burr, Flat End, Cylindrical Head, 3/32 in Dia Head, 7/16 in L of Cut, 1-1/2 in OAL, Single Cut
Cle-Line® Edge Hog® C17601 1845 Imperial Carbide Burr, Flat End, Cylindrical Head, 3/32 in Dia Head, 7/16 in L of Cut, 1-1/2 in OAL, Single Cut
- Brand: Cle-Line®
- Mfr# : C17601
- Item # : GRE C17601
- UPC #: 697334176015
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Right hand spiral cut produces a smooth finish
DESCRIPTION

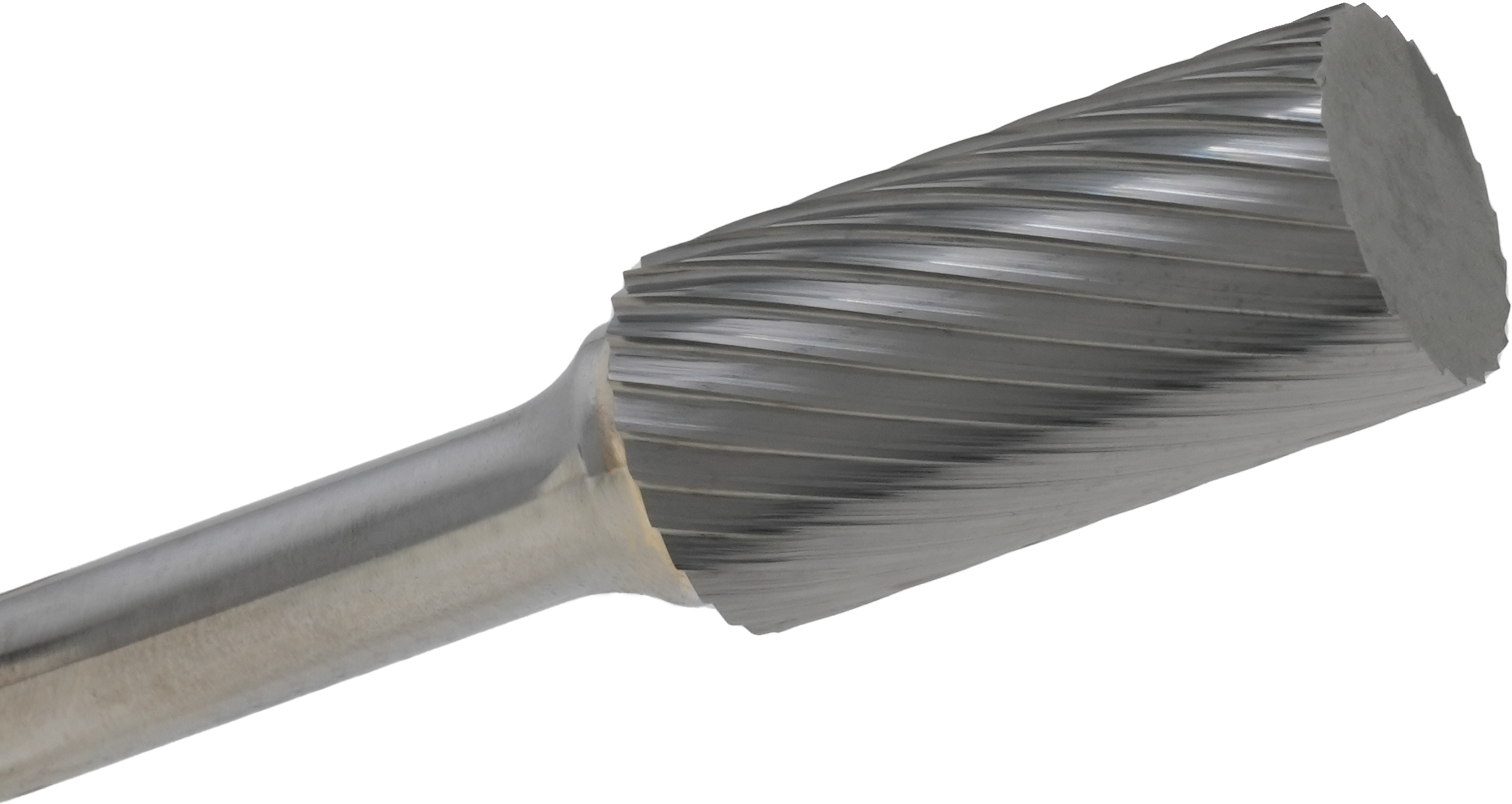

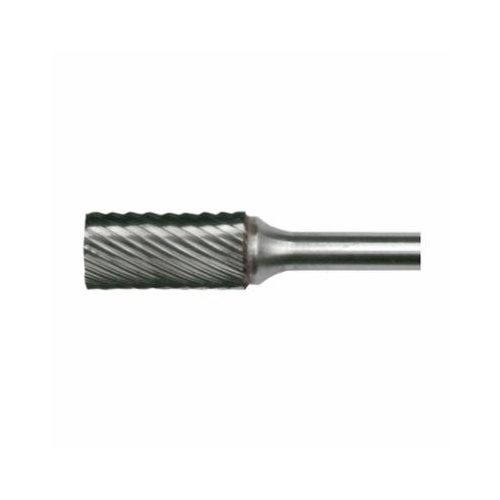

The CLE-LINE 1845 is a single-cut cylindrical bur without end cut, engineered for precision and superior finish quality on steel, cast iron, and non-ferrous materials, with a geometry that provides excellent control and clean cutting action for fine finishing, shaping, and deburring in demanding metalworking applications.
Cle-Line® Edge Hog® Carbide Burr, Imperial, Series: 1845, Flat End, 3/32 in Diameter Head, 7/16 in Length of Cut, 1-1/2 in Overall Length, Cylindrical Head Shape, Single Cut, 1/8 in Shank Diameter, Solid Carbide Head, Bright Head Coating, Applicable Materials: Cast Iron, Plastic, Steel, Ferrous and Non-Ferrous Metals, Industry Specification: SA-42
SPECIFICATIONS
| Type | : Imperial |
| Series | : 1845 |
| End Type | : Flat |
| Head Diameter | : 3/32 in |
| Length of Cut | : 7/16 in |
| Overall Length | : 1-1/2 in |
| Head Shape | : Cylindrical |
| Cut Type | : Single |
| Shank Diameter | : 1/8 in |
| Head Material | : Solid Carbide |
| Head Coating | : Bright |
| Applicable Materials | : Cast Iron, Plastic, Steel, Ferrous and Non-Ferrous Metals |
| Industry Specification | : SA-42 |
APPLICATION INFO
| Standard/Approvals | : PROP65: This product contains Cobalt and/or Nickel and/or Lead a chemical known to the state of California to cause cancer, or birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov |
| Application | : General Purpose Applications |
| Country of Origin | : US |
