Williams® JHW5E05H1GR Electric Hydraulic Pump With Pendant Switch, 1/2 hp, 2 Stages, 293 cu-in/min 1st Stage, 18 cu-in/min 2nd Stage Flow Rate, 350 psi (1st Stage)/10000 psi (2nd Stage) Pressure
Williams® JHW5E05H1GR Electric Hydraulic Pump With Pendant Switch, 1/2 hp, 2 Stages, 293 cu-in/min 1st Stage, 18 cu-in/min 2nd Stage Flow Rate, 350 psi (1st Stage)/10000 psi (2nd Stage) Pressure
Williams® JHW5E05H1GR Electric Hydraulic Pump With Pendant Switch, 1/2 hp, 2 Stages, 293 cu-in/min 1st Stage, 18 cu-in/min 2nd Stage Flow Rate, 350 psi (1st Stage)/10000 psi (2nd Stage) Pressure
- Brand: Williams®
- Mfr# : JHW5E05H1GR
- Item # : WIL JHW5E05H1GR
- UPC #: 662459923424
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
FEATURES
- 2-speed opertation allows for faster cylinder advance
- Internal filter keeps contamination from damagign pump
DESCRIPTION

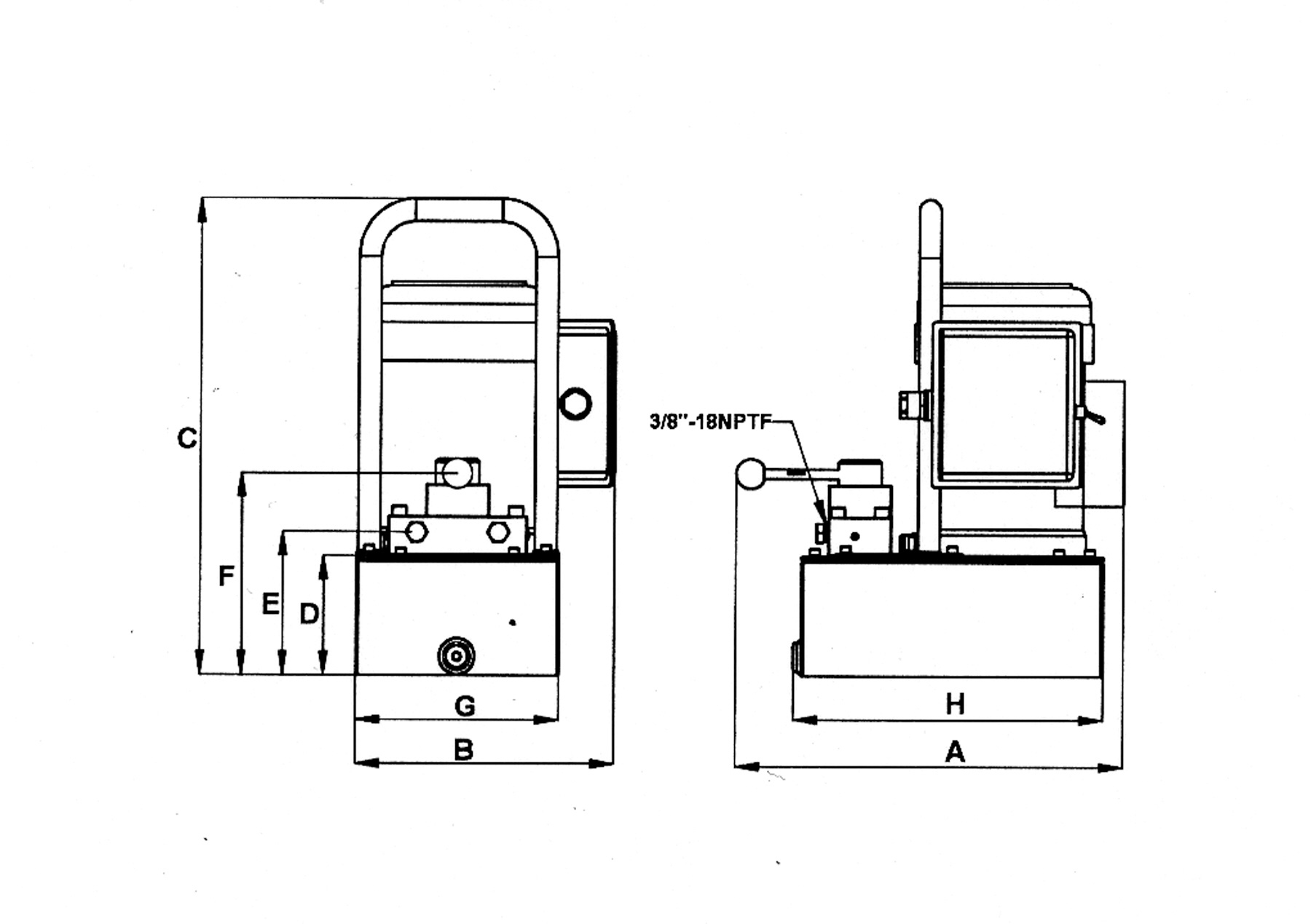

Williams® Electric Hydraulic Pump, 2 Stage, 1/2 hp, 293 cu-in/min 1st Stage, 18 cu-in/min 2nd Stage, 350 psi (1st Stage)/10000 psi (2nd Stage), 115 V AC, 9 A, 3/8-18 NPTF Pressure Port, 14.92 in Overall Length, 10.28 in Overall Width, 19.1 in Overall Height
SPECIFICATIONS
| Number of Stages | : 2 |
| Horsepower | : 1/2 hp |
| Flow Rate | : 293 cu-in/min 1st Stage, 18 cu-in/min 2nd Stage |
| Pressure Rating | : 350 psi (1st Stage)/10000 psi (2nd Stage) |
| Voltage Rating | : 115 V AC |
| Amperage Rating | : 9 A |
| Pressure Port | : 3/8-18 NPTF |
| Overall Length | : 14.92 in |
| Overall Width | : 10.28 in |
| Overall Height | : 19.1 in |
APPLICATION INFO
| Standard/Approvals | : OSHA Compliant |
| Application | : For on site construction as well as maintenance |
| Country of Origin | : TW |
