Cleveland® PM-Plus™ C43215 PM-4 Center Cutting Single End Square End High Performance End Mill, 5/8 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 2-3/4 in OAL, Uncoated
Cleveland® PM-Plus™ C43215 PM-4 Center Cutting Single End Square End High Performance End Mill, 5/8 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 2-3/4 in OAL, Uncoated
Cleveland® PM-Plus™ C43215 PM-4 Center Cutting Single End Square End High Performance End Mill, 5/8 in Dia Cutter, 5/8 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 2-3/4 in OAL, Uncoated
- Brand: Cleveland®
- Mfr# : C43215
- Item # : GRE C43215
- UPC #: 697334432159
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Tip coated with TiN for a super hard surface with high lubricity
DESCRIPTION
The CLEVELAND PM-4 Single End Finisher Tip is made from powder metal and features a TiN coating and multiple flutes for smooth finishing in steel applications. With ANSI sizes and a 37° helix, it enhances productivity and performance.

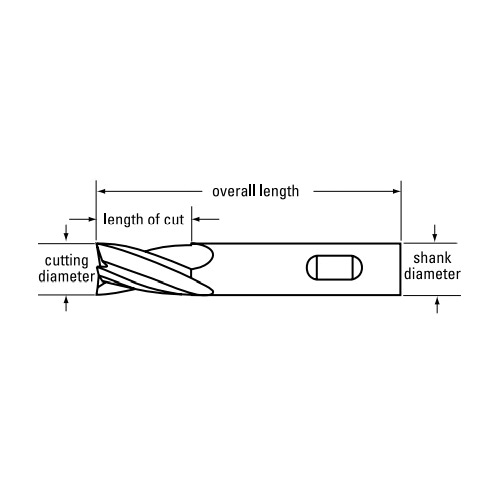

Cleveland® PM-Plus™ High Performance End Mill, Center Cutting Single End Square End, Series: PM-4, 5/8 in Diameter Cutter, 2-3/4 in Overall Length, 5/8 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 37 deg Helix Angle, Straight/Weldon Flat Shank, PM HSS-E, Uncoated
SPECIFICATIONS
| Type | : Center Cutting Single End Square End |
| Series | : PM-4 |
| Cutter Diameter | : 5/8 in |
| Overall Length | : 2-3/4 in |
| Length of Cut | : 5/8 in |
| Number of Flutes | : 4 |
| Flute Type | : Spiral |
| Shank Diameter | : 5/8 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 37 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : PM HSS-E |
| Finish | : Uncoated |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : Finishing Applications |
| Country of Origin | : US |
