Cleveland® C24257 657 Taper Pin Reamer, #2 Taper Pin, 0.2008 in Dia Reamer, 0.1605 in Dia Small End, Straight Flute, Straight Shank
Cleveland® C24257 657 Taper Pin Reamer, #2 Taper Pin, 0.2008 in Dia Reamer, 0.1605 in Dia Small End, Straight Flute, Straight Shank
Cleveland® C24257 657 Taper Pin Reamer, #2 Taper Pin, 0.2008 in Dia Reamer, 0.1605 in Dia Small End, Straight Flute, Straight Shank
- Brand: Cleveland®
- Mfr# : C24257
- Item # : GRE C24257
- UPC #: 697334242574
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Designed to turn a straight hole into a tapered hole for standard taper pins
- Straight flute design is recommended for most materials and applications
- Left hand spiral, right hand cut helical flute design is recommended for applications where the reamer tends to wedge itself
- Square on shank for use with tap wrench in hand reaming applications
DESCRIPTION

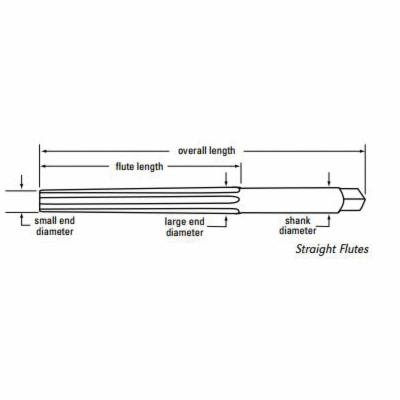

Cleveland® Taper Pin Reamer, Series: 657, Taper Pin Size/Number: #2, 0.2008 in Dia Reamer, 0.1605 in Small End Diameter, 3.188 in Overall Length, Straight Shank, 0.2031 in Shank Diameter, 6 Flutes, Straight Flute, 1.938 in Flute Length, HSS, Uncoated, Right Hand Cutting Direction, Applicable Materials: Alloy Steel/Aluminum/Carbon Steel/Tool Steel
SPECIFICATIONS
| Series | : 657 |
| Taper Pin Size/Number | : #2 |
| Reamer Diameter | : 0.2008 in |
| Small End Diameter | : 0.1605 in |
| Overall Length | : 3.188 in |
| Shank Type | : Straight |
| Shank Diameter | : 0.2031 in |
| Number of Flutes | : 6 |
| Flute Type | : Straight |
| Flute Length | : 1.938 in |
| Material | : HSS |
| Finish | : Uncoated |
| Cutting Direction | : Right Hand |
| Applicable Materials | : Alloy Steel/Aluminum/Carbon Steel/Tool Steel |
APPLICATION INFO
| Country of Origin | : US |
