Cleveland® PM-Plus™ C41123 PMRF-C Center Cutting Fine Single End Square End High Performance End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated

Cleveland® C41123 GRE C41123

Cleveland® PM-Plus™ C41123 PMRF-C Center Cutting Fine Single End Square End High Performance End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated

Cleveland® PM-Plus™ C41123 PMRF-C Center Cutting Fine Single End Square End High Performance End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C41123
  • Item # : GRE C41123
  • UPC #: 697334411239
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • PM Plus™ high performance end mills deliver superior performance
  • 8% Cobalt substrate
  • High vanadium for high red hardness means exceptional toughness and high shock resistance
  • Run at higher feeds than conventional HSS or cobalt end mills
  • Provide excellent heat and wear resistance
  • Freer cutting minimizes heat build-up
  • Give excellent finish
  • Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
  • Multi-flute end mills have a heavy duty cross section for better rigidity
  • Increased number of flutes mean more cutting edges, providing more cutting action
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Increase machining speeds to achieve optimum performance when using Cleveland coatings
  • Applicable on alloy steel, stainless steel and titanium alloys

DESCRIPTION

The CLEVELAND PMRF-C Rougher Tip is made from powder metal and features a bright finish and fine pitch for precise steel machining. With a high helix and ANSI sizes, it delivers smooth, accurate, and efficient performance.

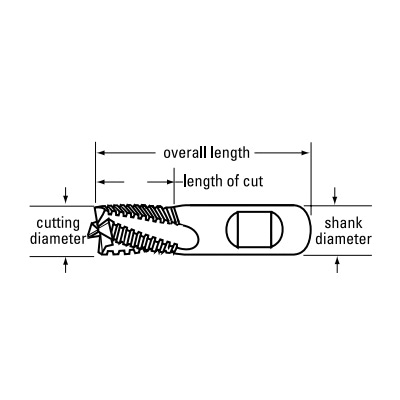

Cleveland® PM-Plus™ High Performance End Mill, Center Cutting Fine Single End Square End, Series: PMRF-C, 1/2 in Diameter Cutter, 3-1/4 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, PM HSS-E, Uncoated

SPECIFICATIONS

Type      :    Center Cutting Fine Single End Square End
Series      :    PMRF-C
Cutter Diameter      :    1/2 in
Overall Length      :    3-1/4 in
Length of Cut      :    1-1/4 in
Number of Flutes      :    4
Flute Type      :    Spiral
Shank Diameter      :    1/2 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    PM HSS-E
Finish      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    Roughing Applications
Country of Origin      :    US
