Williams® JHW6CL30T02 Low Profile Single Acting Cylinder, 30 ton Capacity, 2.87 in Bore, 2.44 in L Stroke, 4.61 in Retract, 2-1/2 in Dia Rod, 9245 psi Pressure
Williams® JHW6CL30T02 Low Profile Single Acting Cylinder, 30 ton Capacity, 2.87 in Bore, 2.44 in L Stroke, 4.61 in Retract, 2-1/2 in Dia Rod, 9245 psi Pressure
Williams® JHW6CL30T02 Low Profile Single Acting Cylinder, 30 ton Capacity, 2.87 in Bore, 2.44 in L Stroke, 4.61 in Retract, 2-1/2 in Dia Rod, 9245 psi Pressure
- Brand: Williams®
- Mfr# : JHW6CL30T02
- Item # : WIL JHW6CL30T02
- UPC #: 662459923141
- Min. Order Qty: :
- Qty. Interval: :
Instruction/Installation Manual
VIDEO LINK
FEATURES
- Compact design for use in confined spaces
- Rod wiper helps seal out dirt and contamination
- Specially designed return spring ensures a quick retraction and extends the life of the spring
- Industrial hard chrome plated ram helps prevent scratching and corrosion
- Plunger end is grooved to reduce load slippage
- Coupler is tilted upward for added clearance
- Maximum working pressure - 10,000 psi/700 bar
DESCRIPTION

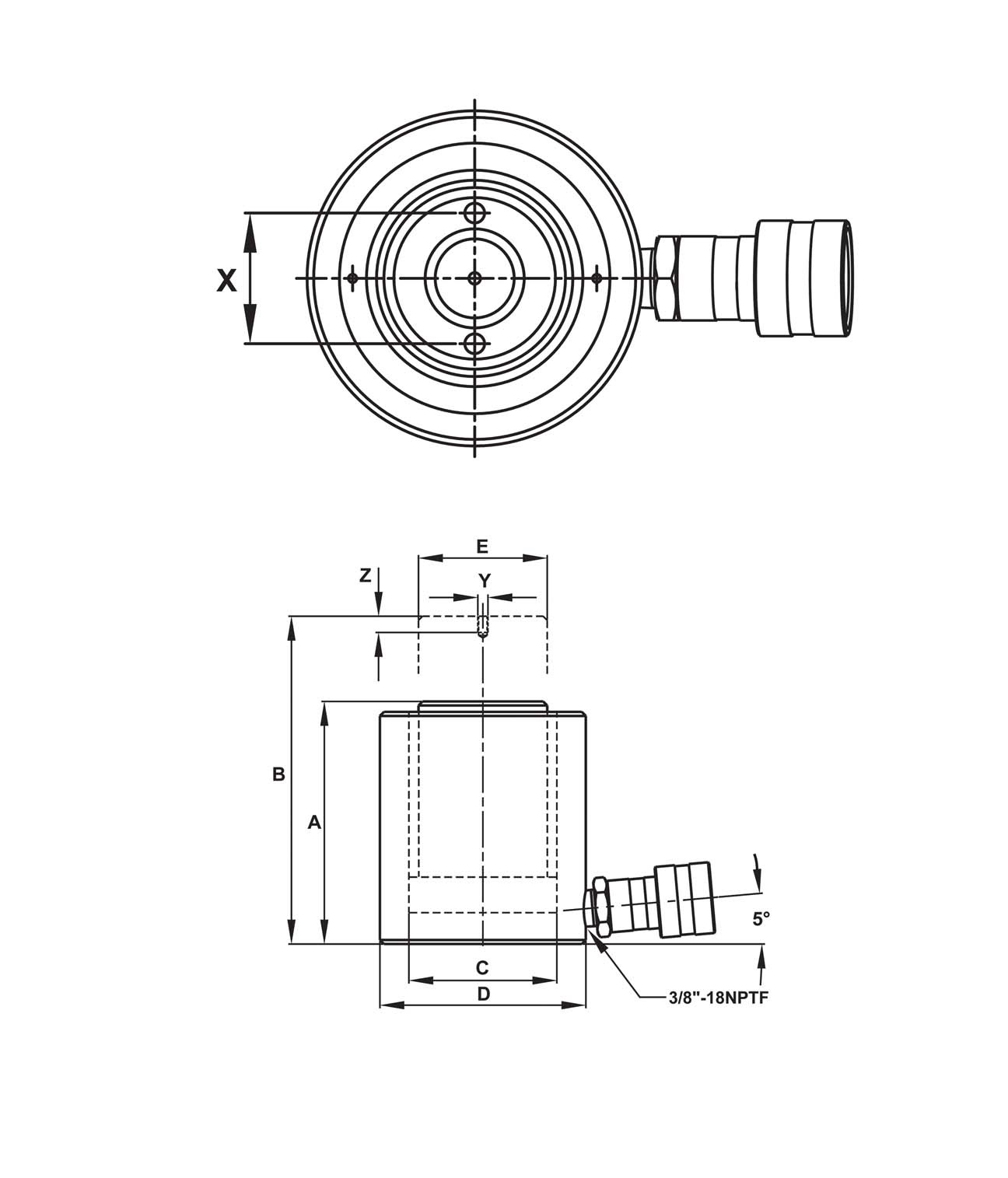

Williams® Cylinder, Low Profile Single Acting, Series: 6CL, 30 ton, 2.87 in Bore, 2.44 in Stroke, 4.61 in Retract, 3/8-18 NPTF, 2-1/2 in Rod Dia, 9245 psi, 4 in OD x 7.05 in L Dimensions
SPECIFICATIONS
| Type | : Low Profile Single Acting |
| Series | : 6CL |
| Capacity | : 30 ton |
| Bore Size | : 2.87 in |
| Stroke Length | : 2.44 in |
| Retract | : 4.61 in |
| Port Size | : 3/8-18 NPTF |
| Rod Diameter | : 2-1/2 in |
| Pressure Rating | : 9245 psi |
| Dimensions | : 4 in OD x 7.05 in L |
APPLICATION INFO
| Country of Origin | : TW |
