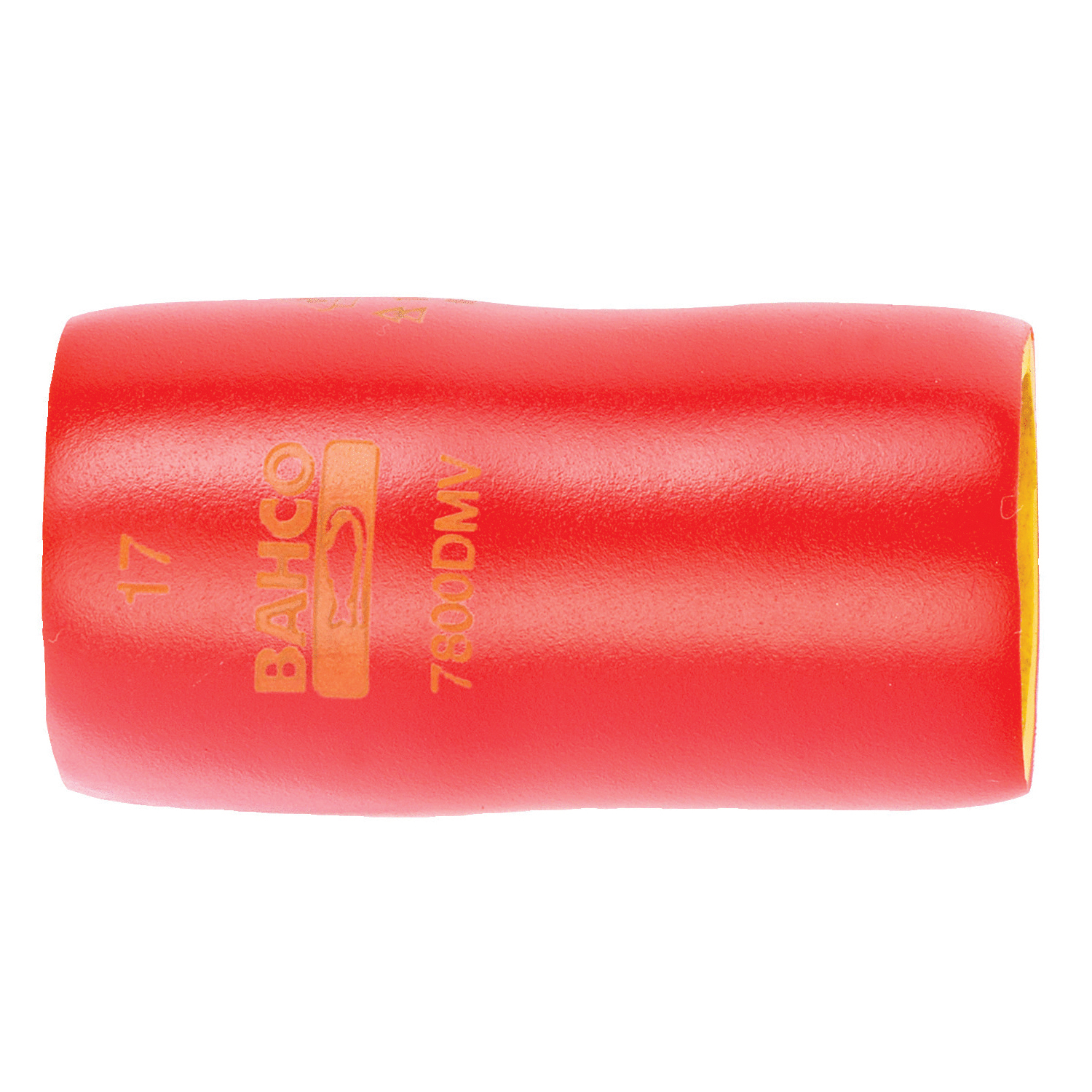

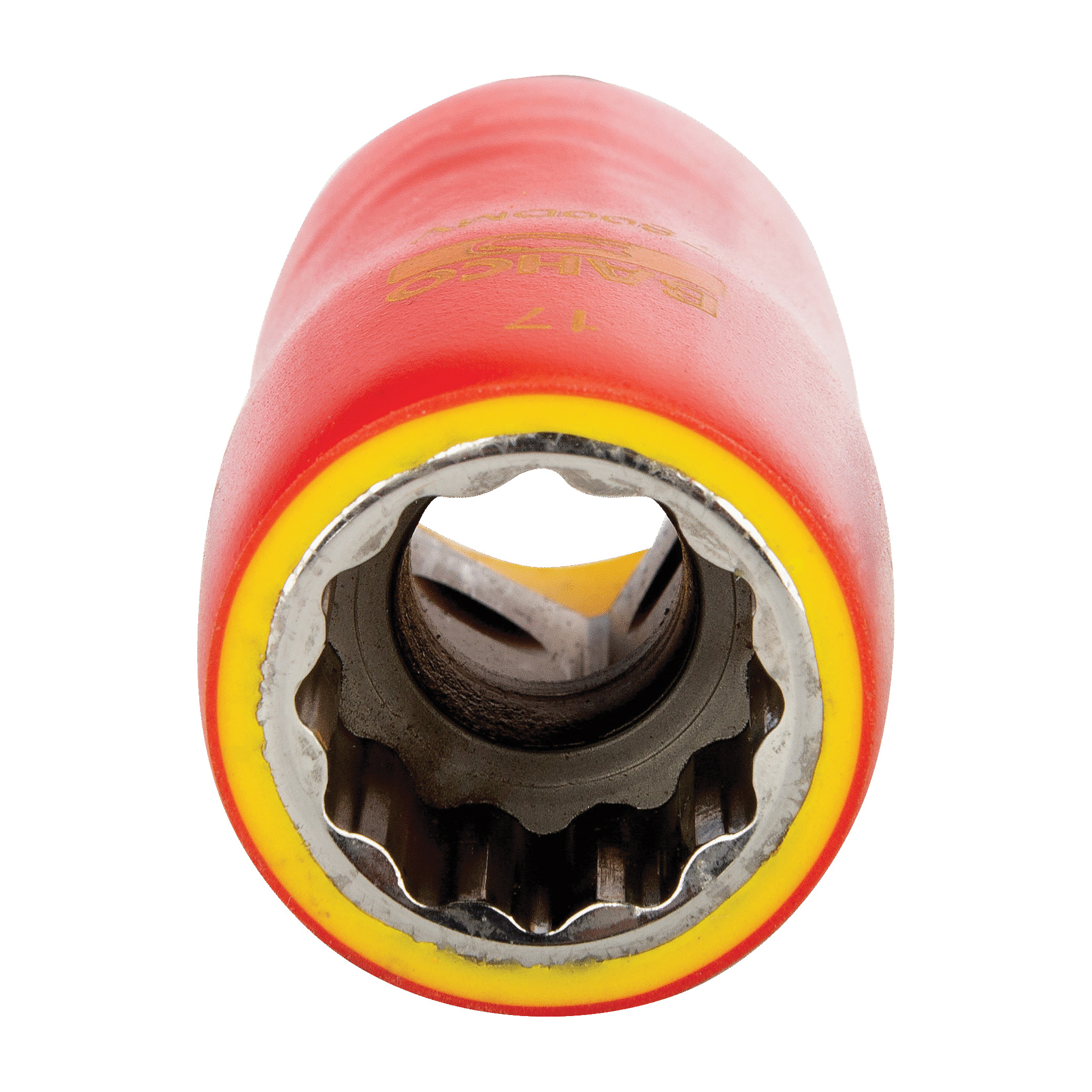

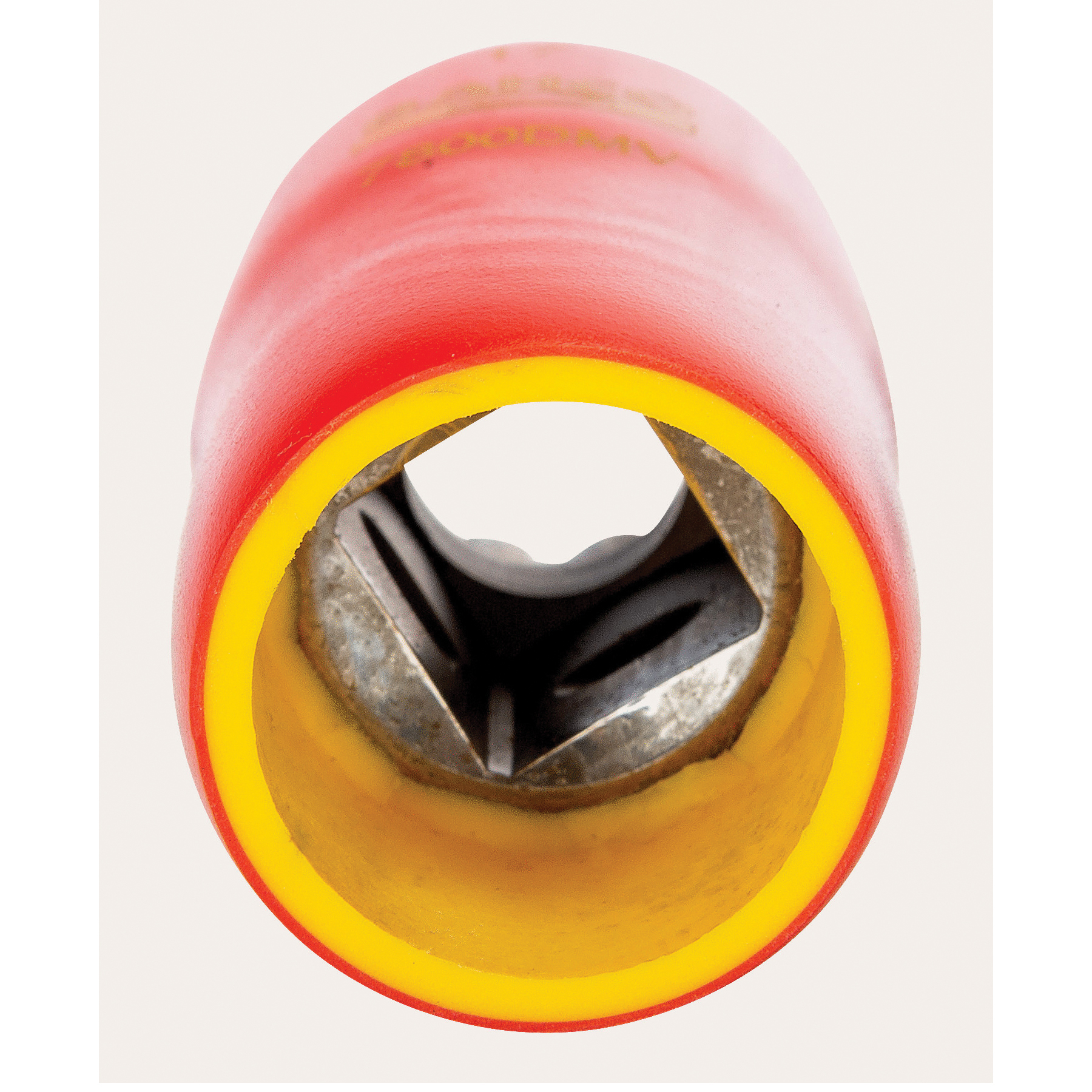

Bahco® BAH78DMV17 Insulated Socket, 17 mm, 12 Points
Bahco® BAH78DMV17 Insulated Socket, 17 mm, 12 Points
- Brand: Bahco®
- Mfr# : BAH78DMV17
- Item # : WIL BAH78DMV17
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- 2 layer coating insulation with different colors
- 12 point Dynamic Drive Profile
- Both square and 12 point openings according to the tolerance and torque requirements
DESCRIPTION
Bahco® Socket, Insulated, No Impact Rated, Measurement System: Metric, 17 mm Drive, 50 mm Overall Length, 28.2 mm Drive End Width, 24 mm Socket End Width, 12 Points, 17.8 mm Bolt Clearance Depth, Alloy Steel, Polished Chrome
SPECIFICATIONS
| Type | : Insulated |
| Impact Rated | : No |
| Measurement System | : Metric |
| Drive Size | : 17 mm |
| Overall Length | : 50 mm |
| Drive End Width | : 28.2 mm |
| Socket End Width | : 24 mm |
| Number of Points | : 12 |
| Bolt Clearance Depth | : 17.8 mm |
| Material | : Alloy Steel |
| Finish | : Polished Chrome |
APPLICATION INFO
| Standard/Approvals | : DIN 3124/3120|IEC 60900|VDE Approved |
| Country of Origin | : US |
