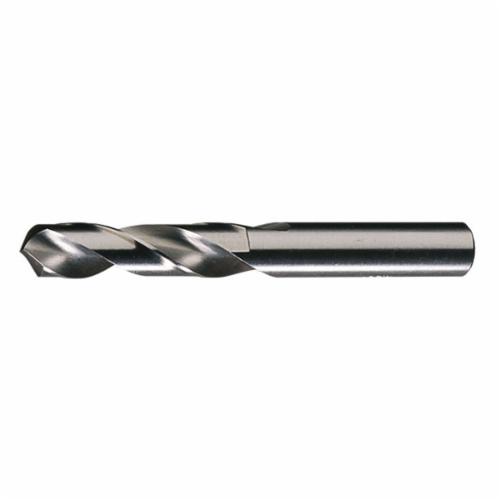

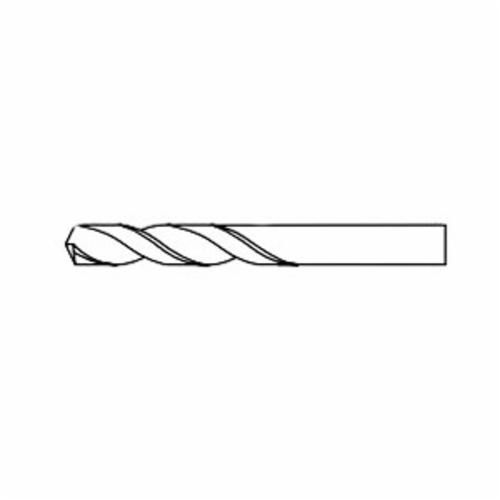

Cleveland® C04594 2120 General Purpose Screw Machine Drill, 29/64 in Drill - Fraction, 0.4531 in Drill - Decimal Inch, HSS, Uncoated
Cleveland® C04594 2120 General Purpose Screw Machine Drill, 29/64 in Drill - Fraction, 0.4531 in Drill - Decimal Inch, HSS, Uncoated
Cleveland® C04594 2120 General Purpose Screw Machine Drill, 29/64 in Drill - Fraction, 0.4531 in Drill - Decimal Inch, HSS, Uncoated
- Brand: Cleveland®
- Mfr# : C04594
- Item # : GRE C04594
- UPC #: 697334045946
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Short length design for improved accuracy and rigidity
DESCRIPTION
Cleveland® Screw Machine Drill, General Purpose, Series: 2120, Imperial, 29/64 in Drill - Fraction, 0.4531 in Drill - Decimal Inch, 3-9/16 in Overall Length, 2-1/8 in Cutting Depth, 2 Flutes, Right Spiral Flute, 2-1/8 in Flute Length, 29/64 in Dia x 1-7/16 in L Shank, Straight Shank, 118 deg Point, Radial Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Uncoated, Applicable Materials: Alloy Steel, Aluminum, Brass, Carbon Steel, Cast Iron and Copper Alloys
SPECIFICATIONS
| Type | : General Purpose |
| Series | : 2120 |
| Drill Diameter Measurement System | : Imperial |
| Drill Size - Fraction | : 29/64 in |
| Drill Size - Decimal Inch | : 0.4531 in |
| Overall Length | : 3-9/16 in |
| Cutting Depth | : 2-1/8 in |
| Number of Flutes | : 2 |
| Flute Type | : Right Spiral |
| Flute Length | : 2-1/8 in |
| Shank Size | : 29/64 in Dia x 1-7/16 in L |
| Shank Type | : Straight |
| Point Angle | : 118 deg |
| Point Type | : Radial |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : HSS |
| Material | : HSS |
| Finish | : Uncoated |
| Applicable Materials | : Alloy Steel, Aluminum, Brass, Carbon Steel, Cast Iron and Copper Alloys |
APPLICATION INFO
| Standard/Approvals | : ASME B94.11M|ANSI Specified |
