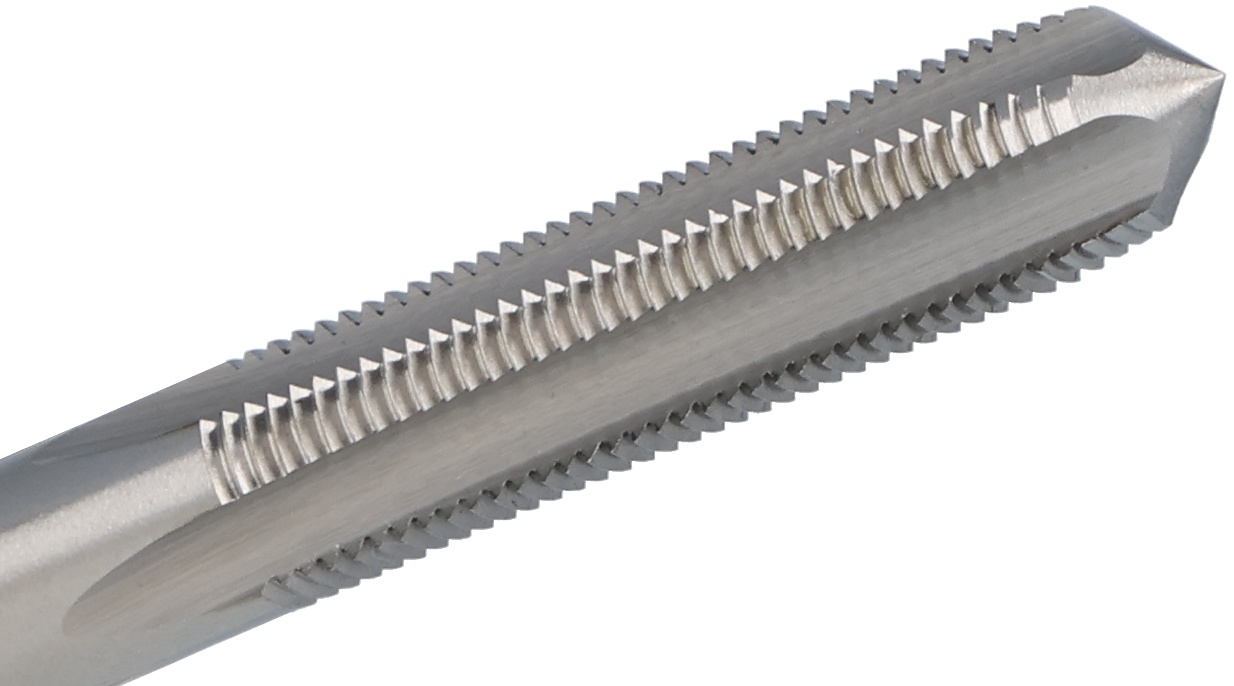

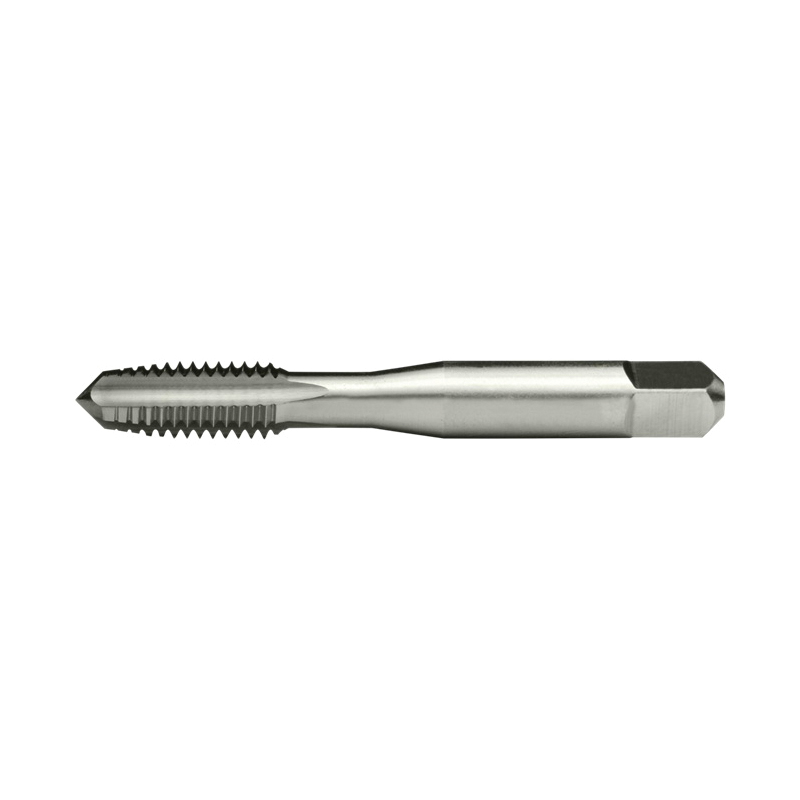

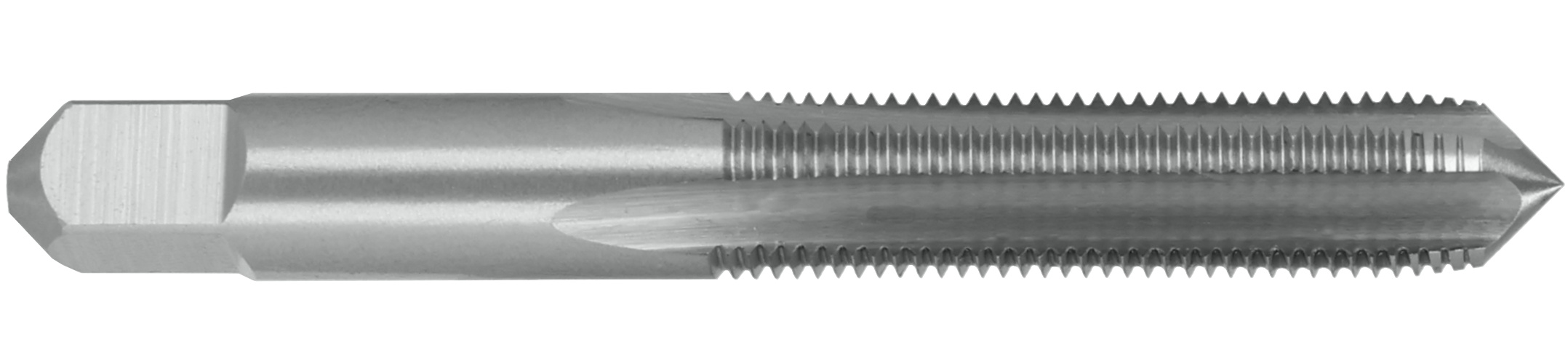

Cleveland® C60748 1002L General Purpose Straight Flute Hand Tap, Left Hand Cutting, 1/4-20 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Uncoated, HSS
Cleveland® C60748 1002L General Purpose Straight Flute Hand Tap, Left Hand Cutting, 1/4-20 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Uncoated, HSS
Cleveland® C60748 1002L General Purpose Straight Flute Hand Tap, Left Hand Cutting, 1/4-20 Thread, H3 Thread Limit, Plug Chamfer, 4 Flutes, Uncoated, HSS
- Brand: Cleveland®
- Mfr# : C60748
- Item # : GRE C60748
- UPC #: 697334607489
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Bright finish adds lubricity and is ideal for drilling in non-ferrous materials like aluminum
- Left handed flutes and cutting edges allow for counter-clockwise drilling
DESCRIPTION
The CLEVELAND 1002L straight-flute left-hand tap features high-speed steel (HSS) construction with a bright finish and plug chamfer, delivering reliable threading performance for through holes in steel, aluminum, and non-ferrous materials.
Cleveland® Straight Flute Hand Tap, General Purpose, Series: 1002L, Measurement System: Imperial, Ground/UNC Thread Standard, 1/4-20 Thread, Plug Chamfer, 4 Flutes, HSS, Uncoated, Class of Fit: 2B, Left Hand Cutting Direction, 0.63 in Thread Length, 2-1/2 in Overall Length, 0.255 in Shank Diameter, Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials Material Application, H3 Thread Limit
SPECIFICATIONS
| Type | : General Purpose |
| Series | : 1002L |
| Measurement System | : Imperial |
| Thread Standard | : UNC |
| Thread Size | : 1/4-20 |
| Chamfer Type | : Plug |
| Number of Flutes | : 4 |
| Material | : HSS |
| Finish/Coating | : Uncoated |
| Class of Fit | : 2B |
| Cutting Direction | : Left Hand |

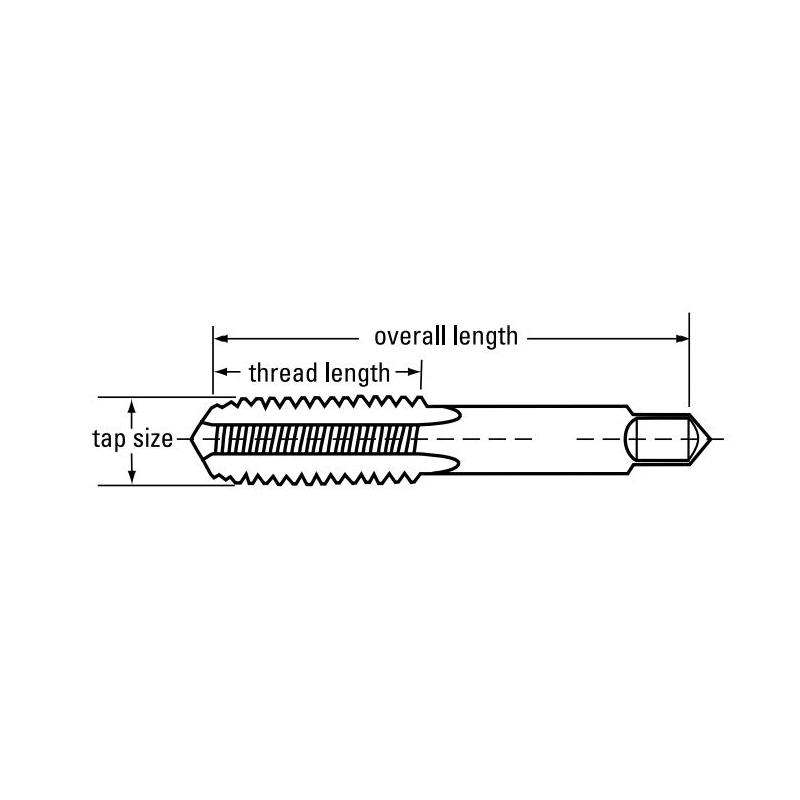

| Thread Length | : 0.63 in |
| Overall Length | : 2-1/2 in |
| Shank Diameter | : 0.255 in |
| Material Application | : Cast Iron, Steel, Stainless Steel and Non-Ferrous Materials |
| Thread Limit | : H3 |
APPLICATION INFO
| Standard/Approvals | : USCTI 302A |
| Application | : For blind hole applications |
| Country of Origin | : US |
