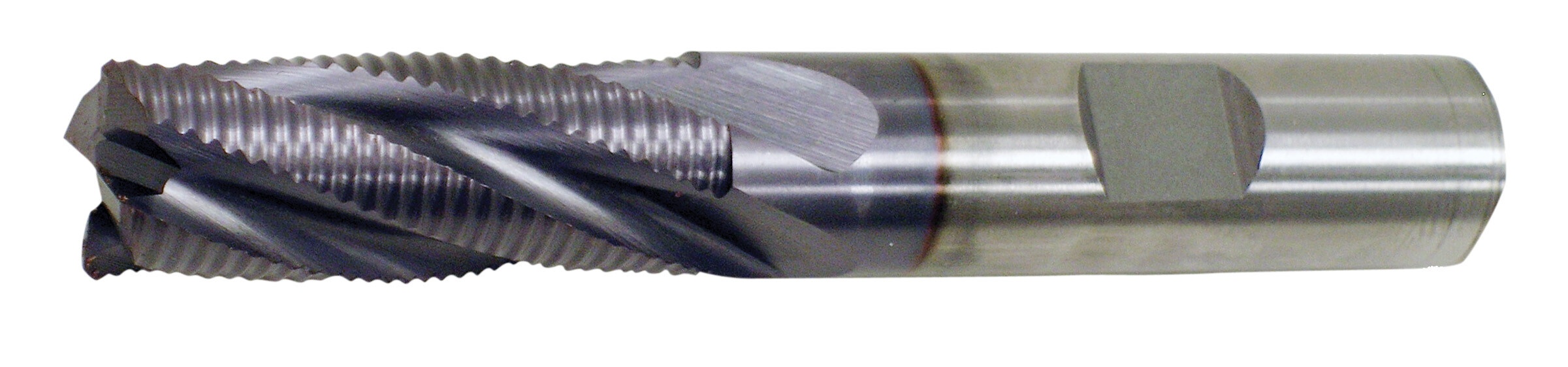

Cleveland® C30980 RG-6 Center Cutting Fine Heavy Duty Single End Square End End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, TiCN
Cleveland® C30980 RG-6 Center Cutting Fine Heavy Duty Single End Square End End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, TiCN
Cleveland® C30980 RG-6 Center Cutting Fine Heavy Duty Single End Square End End Mill, 1/2 in Dia Cutter, 1-1/4 in Length of Cut, 4 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, TiCN
- Brand: Cleveland®
- Mfr# : C30980
- Item # : GRE C30980
- UPC #: 697334309802
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- TiCN coating for extreme hardness and smoother operation
- Made with premium grade cobalt HSS to drill harder materials
- Cobalt drills can drill approximately 30% faster than HSS drills
DESCRIPTION
The CLEVELAND RG6-TC is a roughing end mill featuring an M42 cobalt substrate, TiNC coating, and fine pitch geometry, ensuring precise and efficient machining. It includes a 30° helix, square end design, and ANSI sizing for broad compatibility. Its center-cutting capability enables rapid plunge cutting, while the heavy cross-section provides high rigidity. Designed with high red hardness, it delivers reliable performance in high-heat conditions.

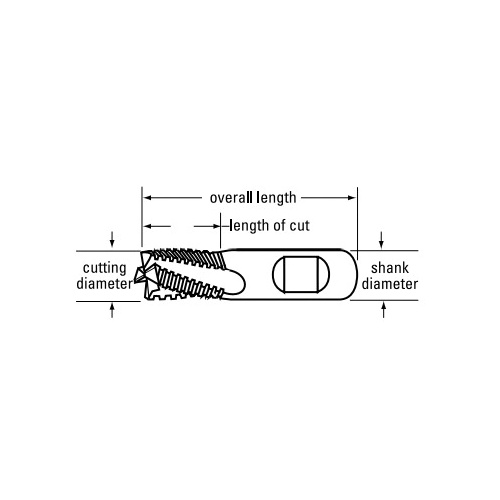

Cleveland® End Mill, Center Cutting Fine Heavy Duty Single End Square End, Series: RG-6, 1/2 in Diameter Cutter, 3-1/4 in Overall Length, 1-1/4 in Length of Cut, 4 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, Cobalt 8/M42 HSS, TiCN
SPECIFICATIONS
| Type | : Center Cutting Fine Heavy Duty Single End Square End |
| Series | : RG-6 |
| Cutter Diameter | : 1/2 in |
| Overall Length | : 3-1/4 in |
| Length of Cut | : 1-1/4 in |
| Number of Flutes | : 4 |
| Flute Type | : Spiral |
| Shank Diameter | : 1/2 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : Cobalt 8/M42 HSS |
| Finish | : TiCN |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Roughing Applications |
| Country of Origin | : US |
