Cleveland® C46114 1001 General Purpose Single End Countersink, 1/2 in Dia Body, 1/4 in Dia Shank, 1 Flutes, 82 deg Included, HSS

Cleveland® C46114 GRE C46114

Cleveland® C46114 1001 General Purpose Single End Countersink, 1/2 in Dia Body, 1/4 in Dia Shank, 1 Flutes, 82 deg Included, HSS

Cleveland® C46114 1001 General Purpose Single End Countersink, 1/2 in Dia Body, 1/4 in Dia Shank, 1 Flutes, 82 deg Included, HSS

  • Brand: Cleveland®
  • Mfr# : C46114
  • Item # : GRE C46114
  • UPC #: 697334461142
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • The pre-drilled hole for countersinking should not be less than 10% of the countersink diameter
  • Use single flute countersinks for smaller holes
  • Run countersinks at 50 to 66% of recommended drill speeds

DESCRIPTION

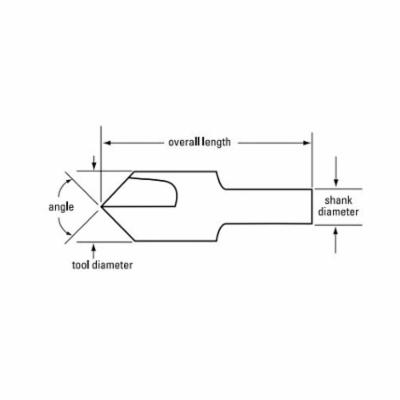

Cleveland® Countersink, General Purpose Single End, Series: 1001, 1/2 in Diameter Body, 2 in Overall Length, Straight Shank, 1/4 in Shank Diameter, 1 Flutes, Right Hand Cutting Direction, 82 deg Included Angle, 41 deg Centerline Angle, HSS, Oxide Treated

SPECIFICATIONS

Type      :    General Purpose Single End
Series      :    1001
Body Diameter      :    1/2 in
Overall Length      :    2 in
Shank Type      :    Straight
Shank Diameter      :    1/4 in
Number of Flutes      :    1
Cutting Direction      :    Right Hand
Included Angle      :    82 deg
Centerline Angle      :    41 deg
Material      :    HSS
Finish      :    Oxide Treated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Purpose Drilling Applications
