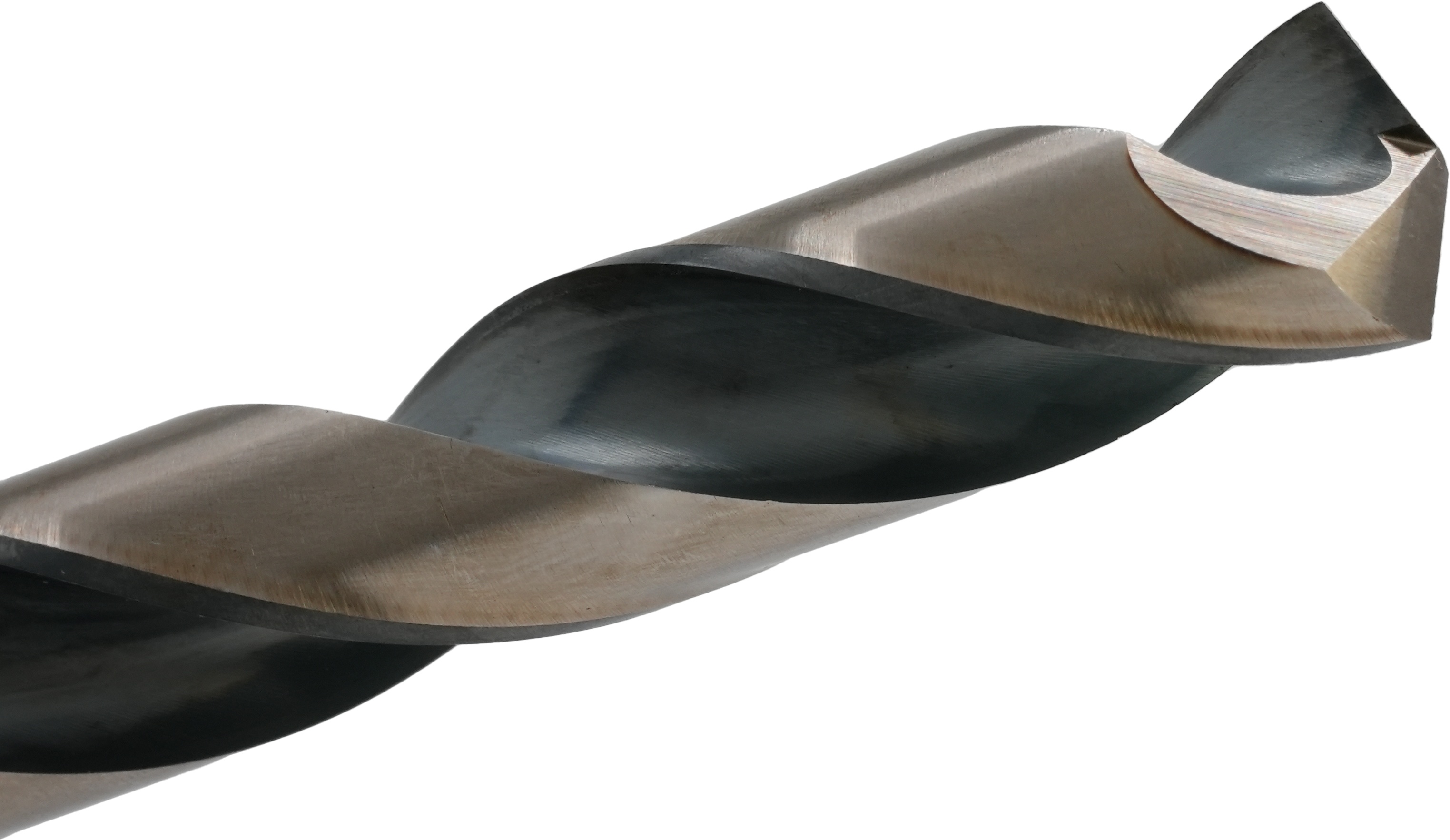

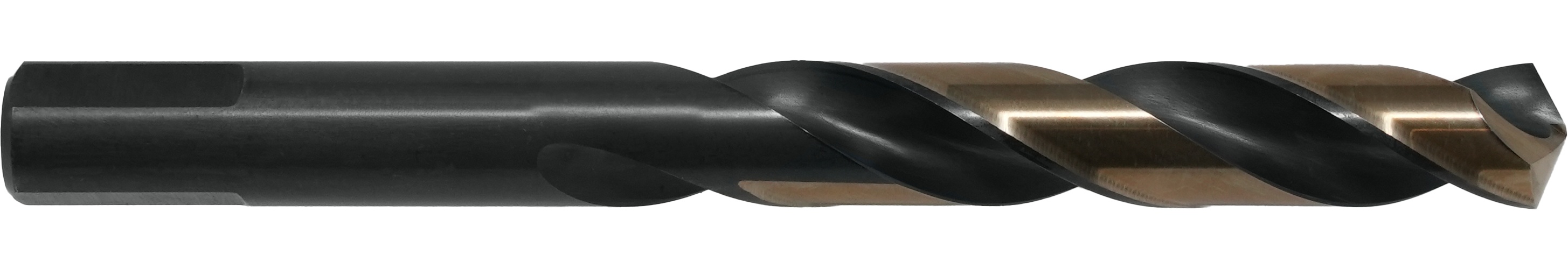

Cle-Line® C23841 1875R Heavy Duty Mechanics Drill, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, HSS, Oxide Treated

Cle-Line® C23841 GRE C23841

Cle-Line® C23841 1875R Heavy Duty Mechanics Drill, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, HSS, Oxide Treated

Cle-Line® C23841 1875R Heavy Duty Mechanics Drill, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, HSS, Oxide Treated

  • Brand: Cle-Line®
  • Mfr# : C23841
  • Item # : GRE C23841
  • UPC #: 697334238416
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 135 deg split point for faster and easier drill penetration
  • Black and gold finish for increased lubricity and longer drill life
  • Offers superior rigidity in portable drilling
  • Nitride surface treatment offers tough, protective layer for increased hardness and longer tool life
  • Spiral flutes are constructed with a higher flute angle to remove chips more easily

DESCRIPTION

Cle-Line® Mechanics Drill, Heavy Duty, Series: 1875R, 15/64 in Drill - Fraction, 0.2344 in Drill - Decimal Inch, 3-3/8 in Overall Length, 2-1/16 in Cutting Depth, 2 Flutes, Spiral Flute, 2-1/16 in Flute Length, 15/64 in Shank, Straight Shank, 135 deg Point, Split Point, Right Hand Cutting Direction, HSS Cutting Edge, HSS, Oxide Treated, Applicable Materials: Low Carbon/Stainless Steel/Ferrous Metal

SPECIFICATIONS

Type      :    Heavy Duty
Series      :    1875R
Drill Size - Fraction      :    15/64 in
Drill Size - Decimal Inch      :    0.2344 in
Overall Length      :    3-3/8 in
Cutting Depth      :    2-1/16 in
Number of Flutes      :    2
Flute Type      :    Spiral
Flute Length      :    2-1/16 in
Shank Size      :    15/64 in
Shank Type      :    Straight
Point Angle      :    135 deg
Point Type      :    Split
Cutting Direction      :    Right Hand
Cutting Edge Material      :    HSS
Material      :    HSS
Finish      :    Oxide Treated
Applicable Materials      :    Low Carbon/Stainless Steel/Ferrous Metal
