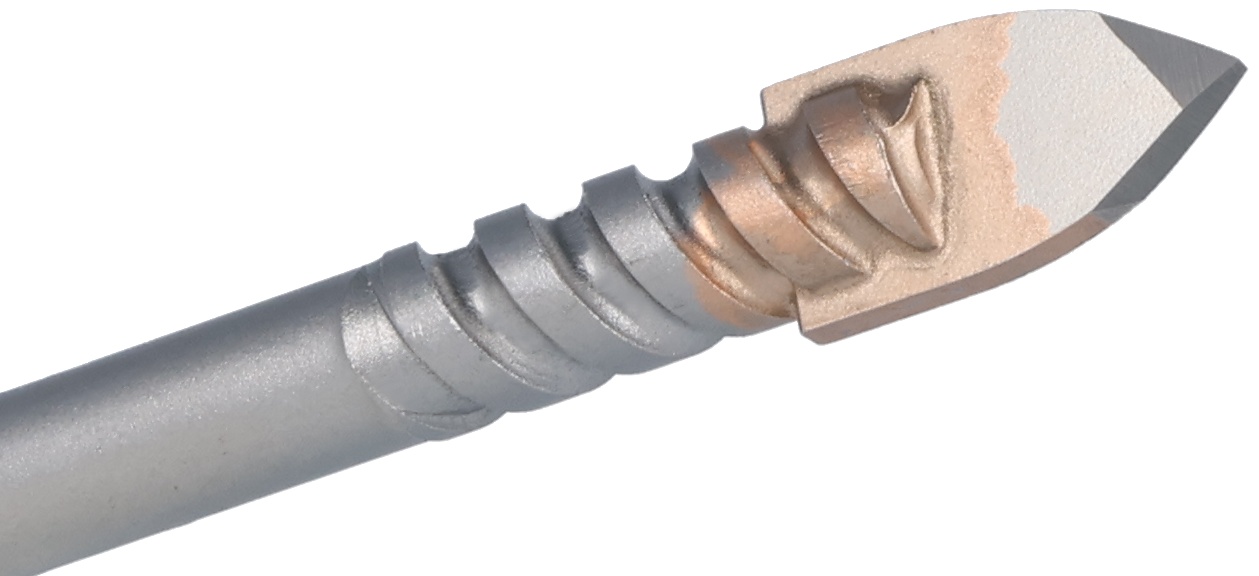

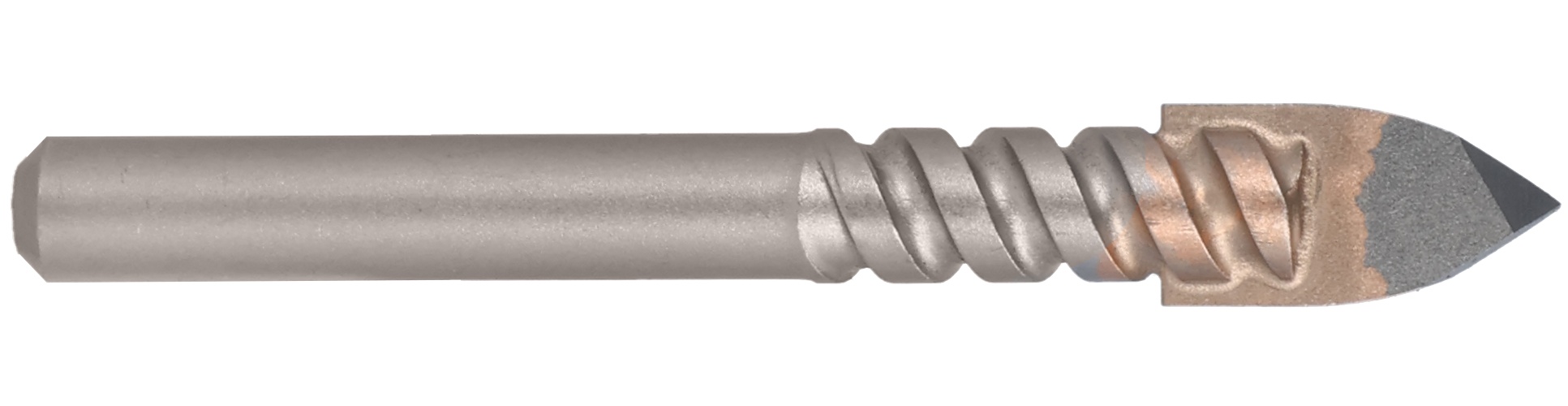

Cle-Line® C20722 1822 Glass and Tile Drill, 3/8 in Drill, 60 deg Point, Straight Shank, 3-7/8 in OAL, Spear Cutting
Cle-Line® C20722 1822 Glass and Tile Drill, 3/8 in Drill, 60 deg Point, Straight Shank, 3-7/8 in OAL, Spear Cutting
Cle-Line® C20722 1822 Glass and Tile Drill, 3/8 in Drill, 60 deg Point, Straight Shank, 3-7/8 in OAL, Spear Cutting
- Brand: Cle-Line®
- Mfr# : C20722
- Item # : GRE C20722
- UPC #: 697334207221
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- New harder carbide grade
- 4-sided diamond style design with aggressive cutting edges
- Copper paste brazing
- Fast spiral with tightened pitch
- Improved drill length
- Aggressive tip improves accuracy and continuous precision
- Drills through tiles up to class 3
- Better resistance to high temperature when drilling
- Ideal for deep materials
DESCRIPTION
Cle-Line® Glass and Tile Drill, Series: 1822, 3/8 in Drill, Spear Cutting, 3-7/8 in Overall Length, Straight Shank, 60 deg Point, Radial Point, Right Hand Cutting Direction, Carbide Cutting Edge, HSS, Bright, Applicable Materials: Glass, Mirror, China and Ceramic Tile
SPECIFICATIONS
| Series | : 1822 |
| Drill Size | : 3/8 in |
| Drill Bit Cutting Shape | : Spear |
| Overall Length | : 3-7/8 in |
| Shank Type | : Straight |
| Point Angle | : 60 deg |
| Point Type | : Radial |
| Cutting Direction | : Right Hand |
| Cutting Edge Material | : Carbide |
| Material | : HSS |
| Finish | : Bright |
| Applicable Materials | : Glass, Mirror, China and Ceramic Tile |
APPLICATION INFO
| Standard/Approvals | : USCTI Standard |
