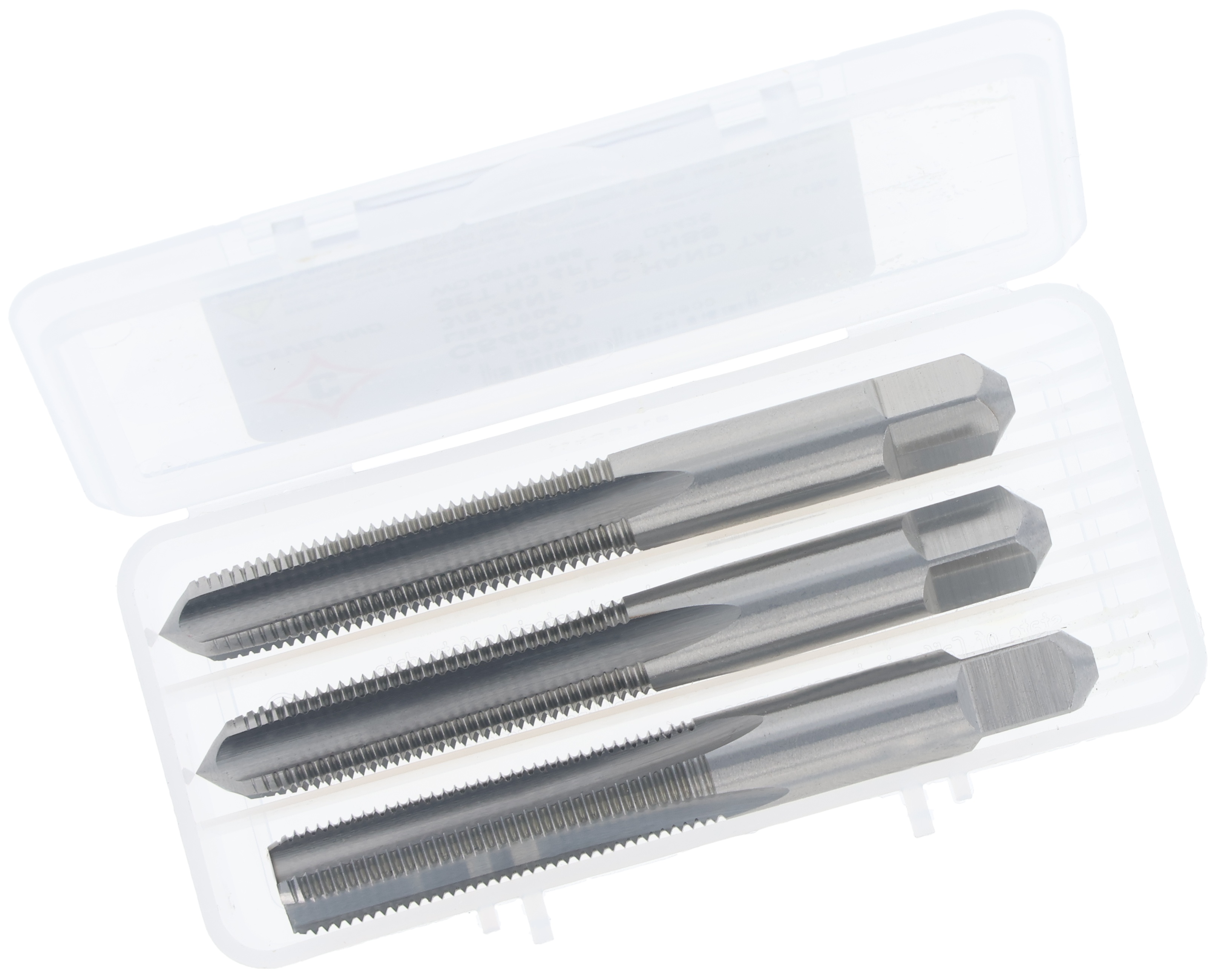

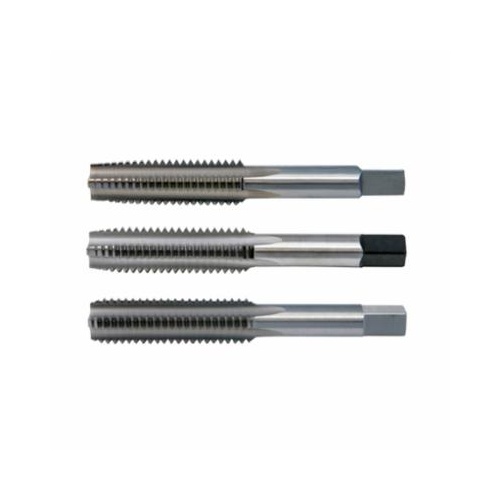

Cle-Line® C63236 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D6 Thread Limit
Cle-Line® C63236 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D6 Thread Limit
Cle-Line® C63236 0404M Standard Straight Flute Straight Shank Hand Tap Set, Right Hand Cutting, Bottoming/Plug/Taper Chamfer, D6 Thread Limit
- Brand: Cle-Line®
- Mfr# : C63236
- Item # : GRE C63236
- UPC #: 697334632368
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Ground thread for economical tapping
- Taper chamfer generally used for hand operations
- Plug chamfer for general purpose applications
- Bottoming chamfer used to thread close to an obstruction or blind hole
DESCRIPTION
Cle-Line® Hand Tap Set, Standard Straight Flute Straight Shank, Series: 0404M, Measurement System: Metric, 3 Piece, M10x1.5 Size, 31.75 mm Thread Length, 74.61 mm Overall Length, 4 Flutes, Right Hand Cutting Direction, 9.68 mm Shank Diameter, Bottoming/Plug/Taper Chamfer, D6 Thread Limit, 11.11 mm L x 7.26 mm W Square, HSS, Bright, Rose Plastic® UniBox Package Type
SPECIFICATIONS
| Type | : Standard Straight Flute Straight Shank |
| Series | : 0404M |
| Measurement System | : Metric |
| Number of Pieces | : 3 |
| Size | : M10x1.5 |
| Thread Length | : 31.75 mm |
| Overall Length | : 74.61 mm |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 9.68 mm |
| Chamfer | : Bottoming/Plug/Taper |
| Thread Limit | : D6 |
| Square Size | : 11.11 mm L x 7.26 mm W |
| Material | : HSS |
| Finish/Coating | : Bright |
| Package Type | : Rose Plastic® UniBox |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 302 |
| Application | : For maintenance applications |
