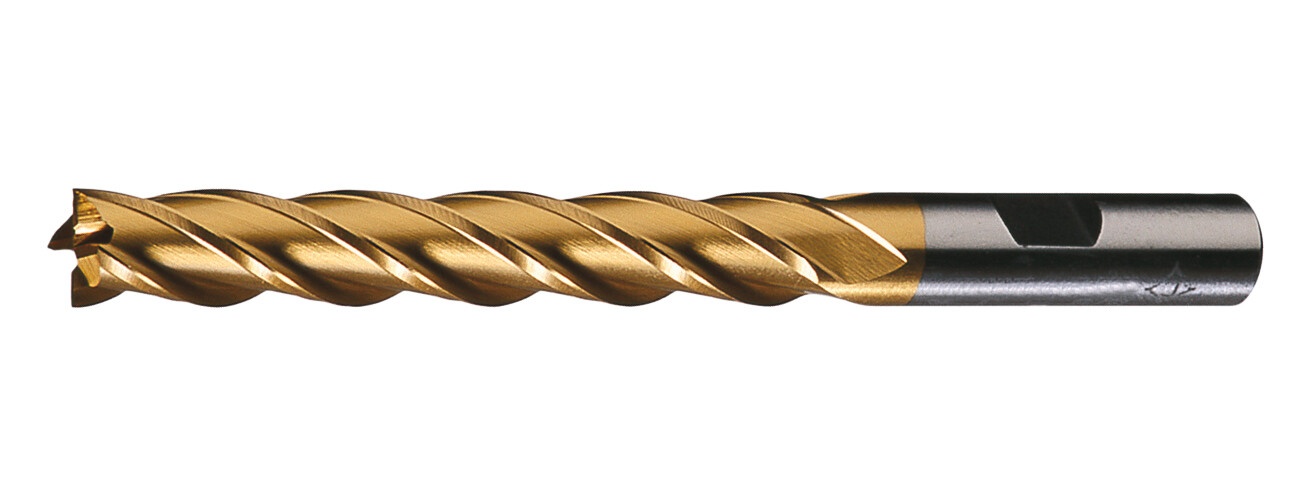

Cleveland® C32664 HGC-4C Center Cutting General Purpose Single End Square End End Mill, 5/8 in Dia Cutter, 2-1/2 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4-5/8 in OAL, TiN
Cleveland® C32664 HGC-4C Center Cutting General Purpose Single End Square End End Mill, 5/8 in Dia Cutter, 2-1/2 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4-5/8 in OAL, TiN
Cleveland® C32664 HGC-4C Center Cutting General Purpose Single End Square End End Mill, 5/8 in Dia Cutter, 2-1/2 in Length of Cut, 4 Flutes, 5/8 in Dia Shank, 4-5/8 in OAL, TiN
- Brand: Cleveland®
- Mfr# : C32664
- Item # : GRE C32664
- UPC #: 697334326649
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Tip coated with TiN for a super hard surface with high lubricity
- Made with premium grade cobalt HSS to drill harder materials
- Cobalt drills can drill approximately 30% faster than HSS drills
DESCRIPTION
The CLEVELAND HGC-4C-TN center cutting finisher tip features M42 cobalt construction with a TiCN coating and a square end, designed in ANSI sizes to deliver optimized machining performance in steel, stainless steel, and high-temperature alloys.
Cleveland® End Mill, Center Cutting General Purpose Single End Square End, Series: HGC-4C, 5/8 in Diameter Cutter, 4-5/8 in Overall Length, 2-1/2 in Length of Cut, 4 Flutes, Spiral Flute, 5/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, Cobalt 8/M42 HSS, TiN

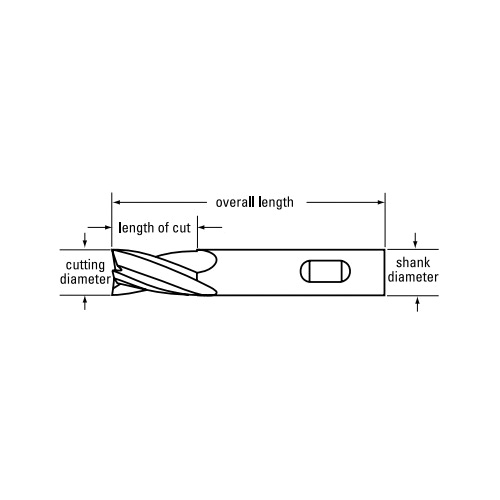

SPECIFICATIONS
| Type | : Center Cutting General Purpose Single End Square End |
| Series | : HGC-4C |
| Cutter Diameter | : 5/8 in |
| Overall Length | : 4/5/2008 in |
| Length of Cut | : 2-1/2 in |
| Number of Flutes | : 4 |
| Flute Type | : Spiral |
| Shank Diameter | : 5/8 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : Cobalt 8/M42 HSS |
| Finish | : TiN |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Finishing Applications |
| Country of Origin | : US |
