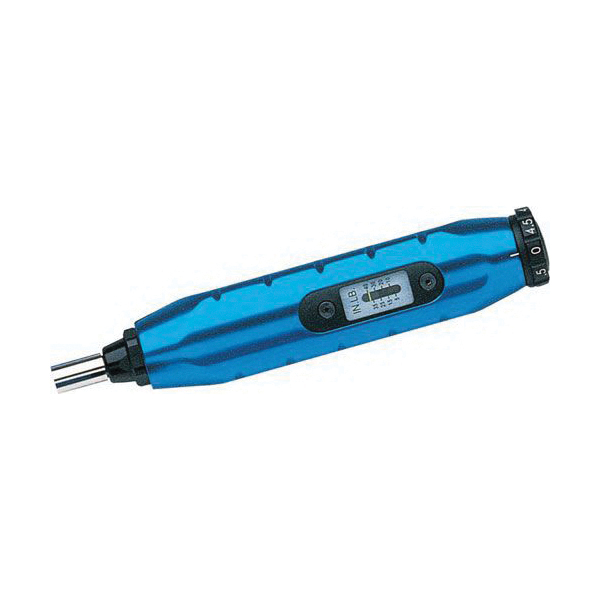

CDI Torque Products® 61SM Micro Adjustable Lightweight Torque Screwdriver, 1/4 in Drive, 5-1/2 in OAL, 20 in-oz, +/-6 % Accuracy, 100 in-oz, ASME B107.300 - 2010, Aluminum

CDI Torque Products® 61SM Micro Adjustable Lightweight Torque Screwdriver, 1/4 in Drive, 5-1/2 in OAL, 20 in-oz, +/-6 % Accuracy, 100 in-oz, ASME B107.300 - 2010, Aluminum

CDI Torque Products® 61SM Micro Adjustable Lightweight Torque Screwdriver, 1/4 in Drive, 5-1/2 in OAL, 20 in-oz, +/-6 % Accuracy, 100 in-oz, ASME B107.300 - 2010, Aluminum


  • Brand: CDI Torque Products®
  • Mfr# : 61SM
  • Item # : CDI 61SM
  • UPC #: 662459926975
  • Min. Order Qty:
  • Qty. Interval:

loading
loading

  • pdf Catalog https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/CDI_Torque_Products_151NSM_Catalog.pdf
  • video VIDEO LINK https://www.youtube.com/watch?v=-Mw7MAxyMvI|https://www.youtube.com/watch?v=z7VBZSn9COQ

FEATURES

  • Six models available
  • Positive locking pull-down adjustment knob
  • Universal 1/4 in hex bit holder with a strong rare earth magnet
  • Cam-over torque limiting clutch
  • Slip resistant finish
  • Easy-to-read window scale
  • Automatic lock in CCW direction for removing screws

DESCRIPTION

Adjustable models offer versatility for applications that require more than one torque value. These torque screwdrivers are particularly suited for the electronics industry and for instrument assembly work. A simple, cam over design prevents over tightening and possible damage to components. Torque settings are easily and accurately changed with a unique adjusting knob and easy to read window scale. Adjusting the screwdriver is simple. Just pull out the adjusting knob to unlock, turn to the desired setting, then push the knob in until it clicks. Positive locking knob makes accidental setting changes impossible. Automatic lock in counterclockwise direction makes fastener removal a snap. The micro adjustable series includes six models with torque settings ranging from 20 in-oz to 40 in-lb.

CDI Torque Products® Torque Screwdriver, Micro Adjustable Lightweight, Measurement System: Imperial, 1/4 in Drive, 20 in-oz Range, 5-1/2 in Overall Length, CW/CCW Rotation, Comfort/Tri-Lobular Grip, 100 in-oz Maximum, Specifications Met: ASME B107.300 - 2010, +/-6 % Accuracy, Aluminum

SPECIFICATIONS

Type      :    Micro Adjustable Lightweight
Measurement System      :    Imperial
Drive Size      :    1/4 in
Scale Range      :    20 in-oz
Overall Length      :    5-1/2 in
Rotation Type      :    CW/CCW
Grip Type      :    Comfort/Tri-Lobular
Maximum Torque      :    100 in-oz
Specifications Met      :    ASME B107.300 - 2010
Accuracy      :    +/-6 %
Material      :    Aluminum

APPLICATION INFO

Standard/Approvals      :    NIST Certified
Country of Origin      :    US
