Cleveland® C33029 HD-4C Center Cutting Double End General Purpose Square End End Mill, 5/32 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/8 in OAL, Uncoated

Cleveland® C33029 GRE C33029

Cleveland® C33029 HD-4C Center Cutting Double End General Purpose Square End End Mill, 5/32 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/8 in OAL, Uncoated

Cleveland® C33029 HD-4C Center Cutting Double End General Purpose Square End End Mill, 5/32 in Dia Cutter, 7/16 in Length of Cut, 4 Flutes, 3/8 in Dia Shank, 3-1/8 in OAL, Uncoated

  • Brand: Cleveland®
  • Mfr# : C33029
  • Item # : GRE C33029
  • UPC #: 697334330295
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • Multi-flute end mills deliver a smoother finish and are better for peripheral cuts
  • Multi-flute end mills have a heavy duty cross section for better rigidity
  • Increased number of flutes mean more cutting edges, providing more cutting action
  • Coatings reduce heat and abrasion to increase tool life
  • The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
  • Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
  • Applicable on alloy steel, copper alloys, cast iron and magnesium

DESCRIPTION

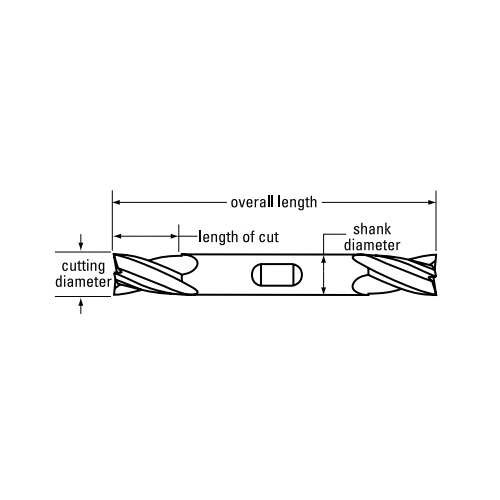

Cleveland® End Mill, Center Cutting Double End General Purpose Square End, Series: HD-4C, 5/32 in Diameter Cutter, 3-1/8 in Overall Length, 7/16 in Length of Cut, 4 Flutes, Spiral Flute, 3/8 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Uncoated

SPECIFICATIONS

Type      :    Center Cutting Double End General Purpose Square End
Series      :    HD-4C
Cutter Diameter      :    5/32 in
Overall Length      :    3-1/8 in
Length of Cut      :    7/16 in
Number of Flutes      :    4
Flute Type      :    Spiral
Shank Diameter      :    3/8 in
Cutting Direction      :    Right Hand
Helix Angle      :    30 deg
Shank Type      :    Straight/Weldon Flat
Material      :    HSS
Finish      :    Uncoated

APPLICATION INFO

Standard/Approvals      :    ANSI Specified
Application      :    General Finishing Applications
