Cleveland® C64130 967 General Purpose Straight Flute Pipe Tap, 1/8-27 Thread
Cleveland® C64130 967 General Purpose Straight Flute Pipe Tap, 1/8-27 Thread
- Brand: Cleveland®
- Mfr# : C64130
- Item # : GRE C64130
- UPC #: 697334641308
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- Ground thread for economical tapping
DESCRIPTION

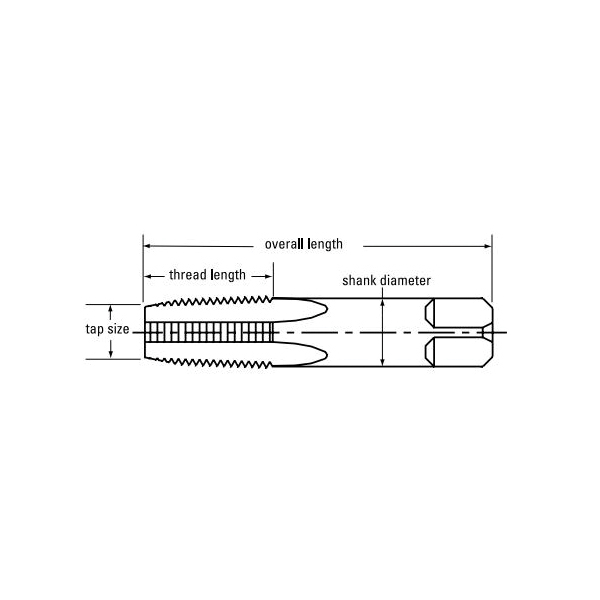

Cleveland® Pipe Tap, General Purpose Straight Flute, Series: 967, Measurement System: Imperial, 1/8-27 Thread, NPSF Thread Standard, Semi-Bottoming Chamfer, 3/4 in Thread Length, 2-1/8 in Overall Length, 4 Flutes, Right Hand Cutting Direction, 7/16 in Shank Diameter, 0.328 in Square, HSS, Bright, Medium Hook
SPECIFICATIONS
| Type | : General Purpose Straight Flute |
| Series | : 967 |
| Measurement System | : Imperial |
| Thread Size | : 1/8-27 |
| Thread Standard | : NPSF |
| Chamfer Type | : Semi-Bottoming |
| Thread Length | : 3/4 in |
| Overall Length | : 2-1/8 in |
| Number of Flutes | : 4 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 7/16 in |
| Square Size | : 0.328 in |
| Material | : HSS |
| Finish/Coating | : Bright |
| Hook Type | : Medium |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 311 |
| Application | : For thread cutting and blind hole applications |
| Country of Origin | : US |
