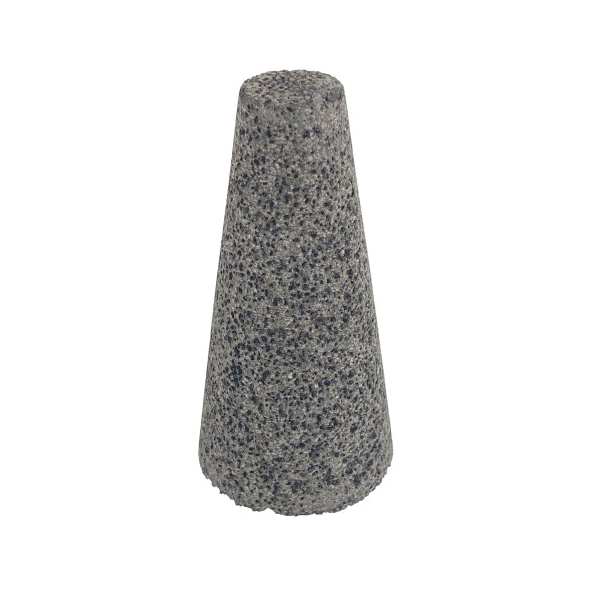

Tiger® AO 68315 Long Life Portable Grinding Cone, 1-1/2 in Dia Max, 3 in THK Head, 24 Grit, R Grade, Aluminum Oxide Abrasive
Tiger® AO 68315 Long Life Portable Grinding Cone, 1-1/2 in Dia Max, 3 in THK Head, 24 Grit, R Grade, Aluminum Oxide Abrasive
Tiger® AO 68315 Long Life Portable Grinding Cone, 1-1/2 in Dia Max, 3 in THK Head, 24 Grit, R Grade, Aluminum Oxide Abrasive
- Brand: Tiger® AO
- Mfr# : 68315
- Item # : WEI 68315
- UPC #: 012382683153
- Min. Order Qty: :
- Qty. Interval: :
SDS
FEATURES
- Aluminum oxide grains provide an even, sharp, clean cut-rate and consistent performance
- Open face design provides an aggressive cut-rate right out of the box
- Anchored hexagon nut secures the abrasive to the tool to increase safety and prevent product breakage
- Zinc plated nut prevents oxidation, eliminating contamination and allowing for easy mounting
- Precision balanced to ensure smooth, vibration-free operation and reduced operator fatigue
- Best for use on carbon steel, stainless steel, cast iron, and ductile iron
DESCRIPTION
Weiler Tiger® AO 1-1/2 x 3 in type 17 cones deliver the right combination of performance and value. Aluminum oxide grains in combination with a strong bond deliver long product life and a consistent cut-rate when grinding metal. The type 17 shape features a cone design with a flat face that is ideal for ID cleaning, hole edge beveling, smoothing weld seams, removing gates and parting lines and cleaning castings in hard to reach places. These cones offer a 3/8-24 arbor and are designed for use on die grinders. Whether you are in a fab shop, foundry or shipyard, you can count on Tiger® AO cones and plugs to get the job done fast and done right.
Tiger® AO Portable Grinding Cone, Long Life, 1-1/2 in Diameter Maximum, 3 in Head Thickness, 24 Grit, R Grade, Resin Bond, Flat Tip Shape, Shape Code: 17, 3/8-24 Thread, 24190 rpm Maximum, Aluminum Oxide Abrasive
SPECIFICATIONS
| Type | : Long Life |
| Maximum Diameter | : 1-1/2 in |
| Head Thickness | : 3 in |
| Grit | : 24 |
| Grade | : R |
| Bond Type | : Resin |
| Shape Type | : Flat Tip |
| Shape Code | : 17 |
| Thread Size | : 3/8-24 |
| Maximum Speed | : 24190 rpm |
| Abrasive Material | : Aluminum Oxide |
APPLICATION INFO
| Standard/Approvals | : ANSI B7.1|PROP65: This product can expose you to chemicals including Silica, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov. |
| Application | : Foundry and Metal Fabrication Industries Applications |
| Country of Origin | : BR |
