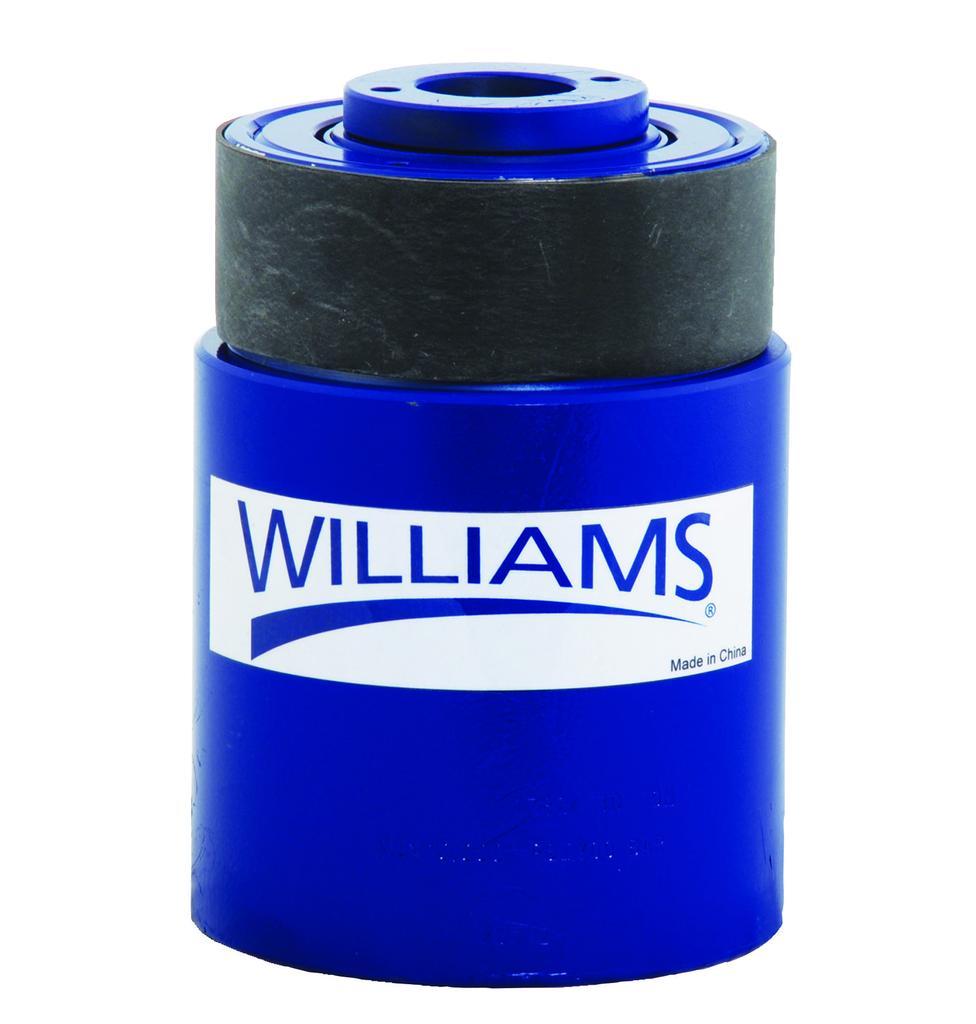

Williams® JHW6CH100T03 Hollow Hole Single Acting Cylinder, 100 ton Capacity, 3.11 in Bore, 3 in L Stroke, 10 in Retract, 4.92 in Dia Rod, 9036 psi Pressure

Williams® JHW6CH100T03 WIL JHW6CH100T03

Williams® JHW6CH100T03 Hollow Hole Single Acting Cylinder, 100 ton Capacity, 3.11 in Bore, 3 in L Stroke, 10 in Retract, 4.92 in Dia Rod, 9036 psi Pressure

Williams® JHW6CH100T03 Hollow Hole Single Acting Cylinder, 100 ton Capacity, 3.11 in Bore, 3 in L Stroke, 10 in Retract, 4.92 in Dia Rod, 9036 psi Pressure

  • Brand: Williams®
  • Mfr# : JHW6CH100T03
  • Item # : WIL JHW6CH100T03
  • UPC #: 662459922984
  • Min. Order Qty: :
  • Qty. Interval: :
# Add Customer Part #
loading
loading

Add To Cart
   Add To Product List

FEATURES

  • 6 standard models
  • Heavy duty compression spring
  • Dual wipers help prevent contamination
  • Collar thread protector
  • High flow coupler with dust cap

DESCRIPTION

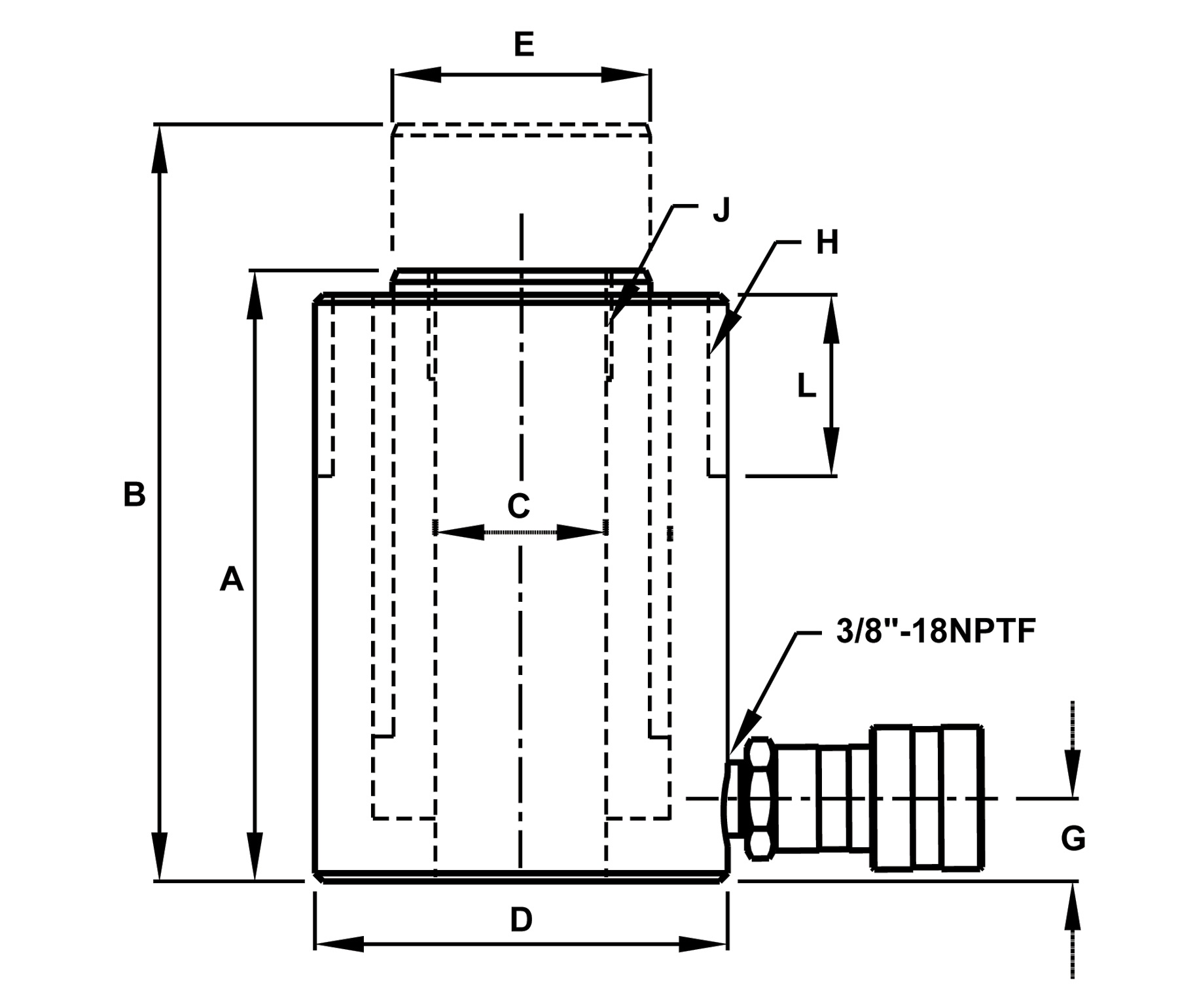

Williams® Cylinder, Hollow Hole Single Acting, Series: 6CH, 100 ton, 3.11 in Bore, 3 in Stroke, 10 in Retract, 5/8-11 UNC, 4.92 in Rod Dia, 9036 psi, 8.386 in OD x 13 in L Dimensions

SPECIFICATIONS

Type      :    Hollow Hole Single Acting
Series      :    6CH
Capacity      :    100 ton
Bore Size      :    3.11 in
Stroke Length      :    3 in
Retract      :    10 in
Port Size      :    5/8-11 UNC
Rod Diameter      :    4.92 in
Pressure Rating      :    9036 psi
Dimensions      :    8.386 in OD x 13 in L

APPLICATION INFO

Standard/Approvals      :    ASME B17.3-21|NIST Approved
Application      :    Pushing and Pulling Applications
Country of Origin      :    TW
