CDI Torque Products® 50T-I-SET Clicker Pre-Set Interchangeable Head Torque Wrench, J Drive, 15 to 75 ft-lb, 11 in OAL, ASME B107.300-2010
CDI Torque Products® 50T-I-SET Clicker Pre-Set Interchangeable Head Torque Wrench, J Drive, 15 to 75 ft-lb, 11 in OAL, ASME B107.300-2010
CDI Torque Products® 50T-I-SET Clicker Pre-Set Interchangeable Head Torque Wrench, J Drive, 15 to 75 ft-lb, 11 in OAL, ASME B107.300-2010
- Brand: CDI Torque Products®
- Mfr# : 50T-I-SET
- Item # : CDI 50T-I-SET
- UPC #: 662459933096
- Min. Order Qty: :
- Qty. Interval: :
VIDEO LINK
FEATURES
- The design fabrication and materials used have been developed in coordination with major manufactures in actual production use
- Torque values can be calibrated in english or metric setting
- Accuracy - +/- 4 percent of indicated value, in direction of torque indicator, from 20 percent to 100 percent of full scale

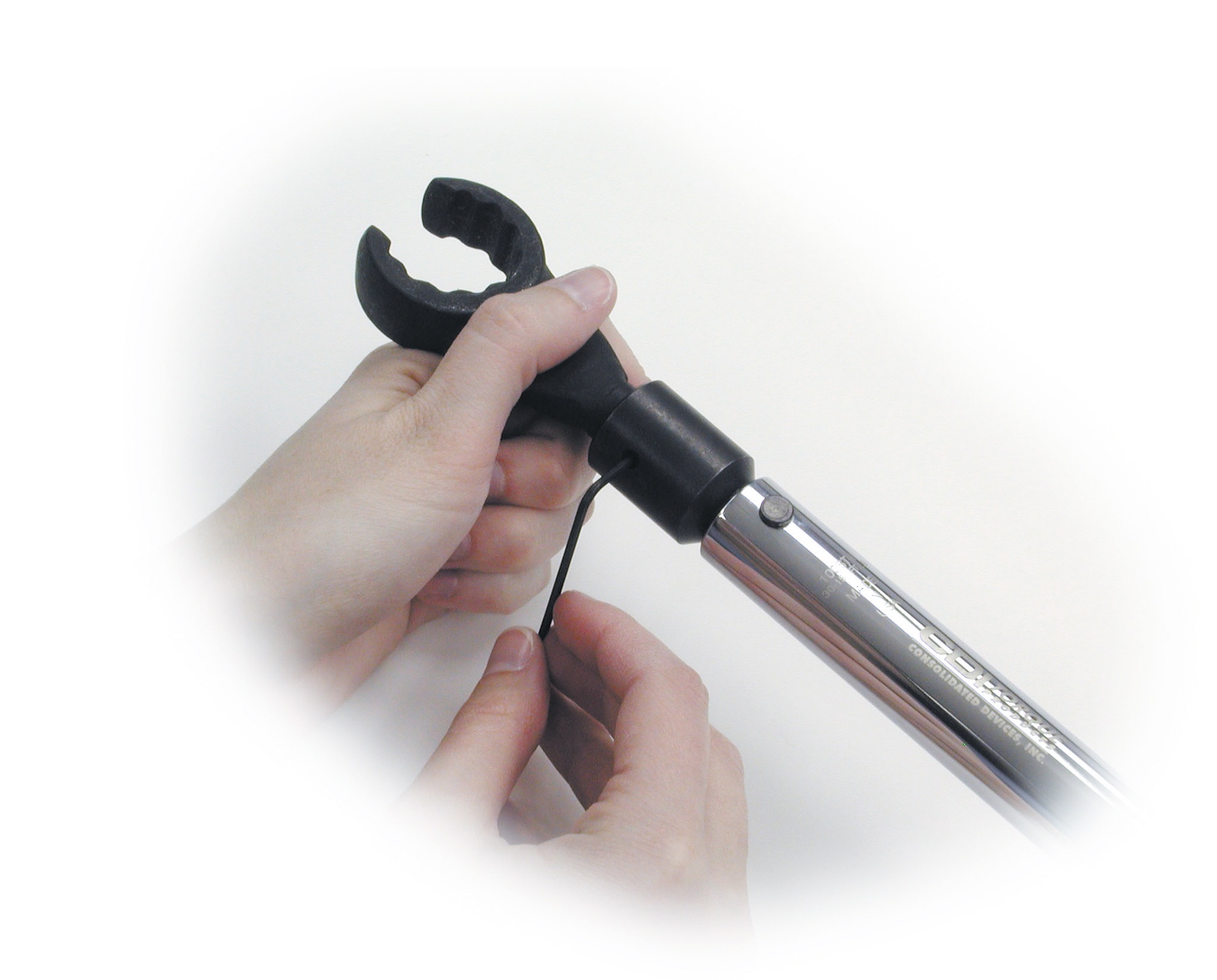

- Uses universal round shank interchangeable heads
DESCRIPTION
CDI Torque Products® Interchangeable Head Torque Wrench, Clicker Pre-Set, J Drive, 15 to 75 ft-lb Torque, 11 in Overall Length, CW/CCW Rotation, +/-4% Accuracy, Setting: Factory/Single, Audible Click/Tactile Impulse Indicator, Non-Slip/Cushion Grip Handle, Specifications Met: ASME B107.300-2010, Steel
SPECIFICATIONS
| Type | : Clicker Pre-Set |
| Drive Size | : J |
| Torque Range | : 15 to 75 ft-lb |

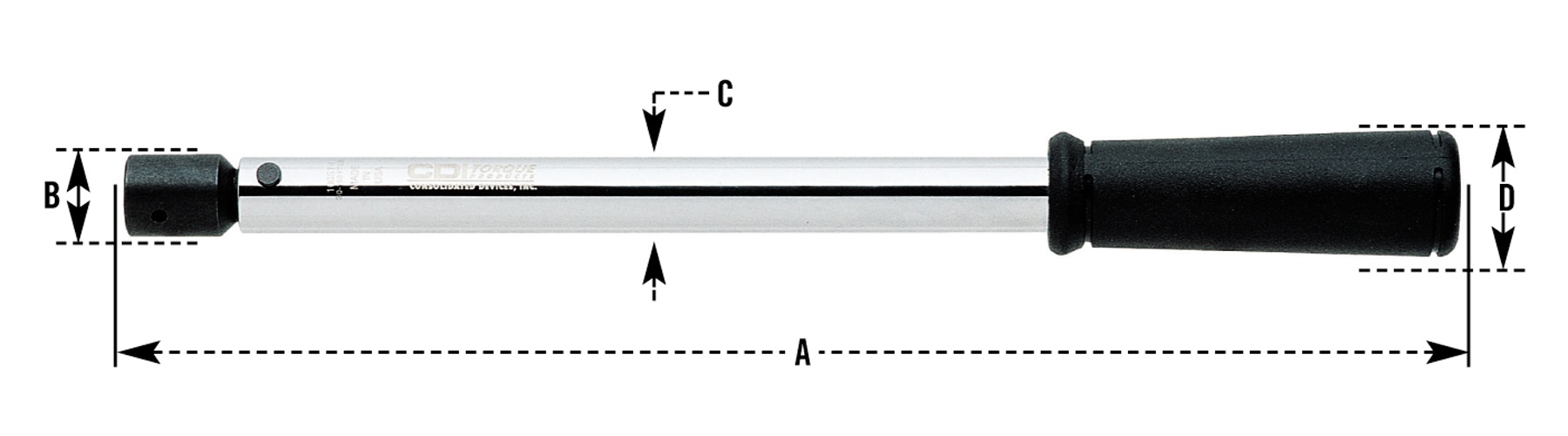

| Overall Length | : 11 in |
| Rotation Type | : CW/CCW |
| Accuracy | : +/-4% |
| Setting | : Factory/Single |
| Indicator Type | : Audible Click/Tactile Impulse |
| Handle Type | : Non-Slip/Cushion Grip |
| Specifications Met | : ASME B107.300-2010 |
| Material | : Steel |
APPLICATION INFO
| Standard/Approvals | : ISO 6789 |
| Application | : For use on production lines and other applications where a specific torque is required for repetitive operations |
| Country of Origin | : US |
