Cleveland® C86138 PRO-861SP High Performance Universal Spiral Point Machine Tap, Right Hand Cutting, M6x1 Thread, Plug Chamfer, 3 Flutes, TiAlN, HSS-E
Cleveland® C86138 PRO-861SP High Performance Universal Spiral Point Machine Tap, Right Hand Cutting, M6x1 Thread, Plug Chamfer, 3 Flutes, TiAlN, HSS-E
Cleveland® C86138 PRO-861SP High Performance Universal Spiral Point Machine Tap, Right Hand Cutting, M6x1 Thread, Plug Chamfer, 3 Flutes, TiAlN, HSS-E
- Brand: Cleveland®
- Mfr# : C86138
- Item # : GRE C86138
- UPC #: 697334861386
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Ground Thread
DESCRIPTION

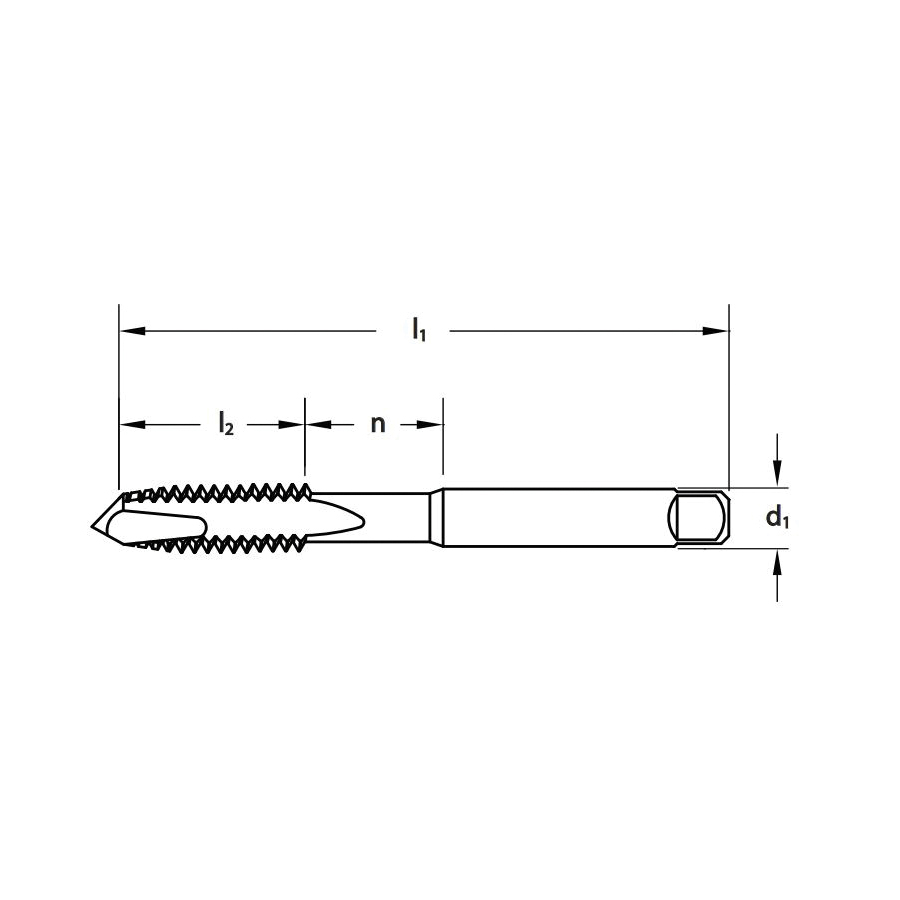

Cleveland® Spiral Point Machine Tap, High Performance Universal, Series: PRO-861SP, Measurement System: Metric, Ground/Coarse Thread Standard, M6x1 Thread, Plug Chamfer, 3 Flutes, HSS-E, TiAlN, Class of Fit: 6H, Right Hand Cutting Direction, 17 mm Thread Length, 80 mm Overall Length, 6.48 mm Shank Diameter, 7.87 mm Shank Length, Steel, Stainless Steel, Non-Ferrous and Hard Materials Material Application
SPECIFICATIONS
| Type | : High Performance Universal |
| Series | : PRO-861SP |
| Measurement System | : Metric |
| Thread Standard | : M |
| Thread Size | : M6x1 |
| Chamfer Type | : Plug |
| Number of Flutes | : 3 |
| Material | : HSS-E |
| Finish/Coating | : TiAlN |
| Class of Fit | : 6H |
| Cutting Direction | : Right Hand |
| Thread Length | : 17 mm |
| Overall Length | : 80 mm |
| Shank Diameter | : 6.48 mm |
| Shank Length | : 7.87 mm |
| Material Application | : Steel, Stainless Steel, Non-Ferrous and Hard Materials |
APPLICATION INFO
| Standard/Approvals | : DIN Rated|ANSI/ASME Specified |
| Application | : For through hole applications |
| Country of Origin | : CH |
