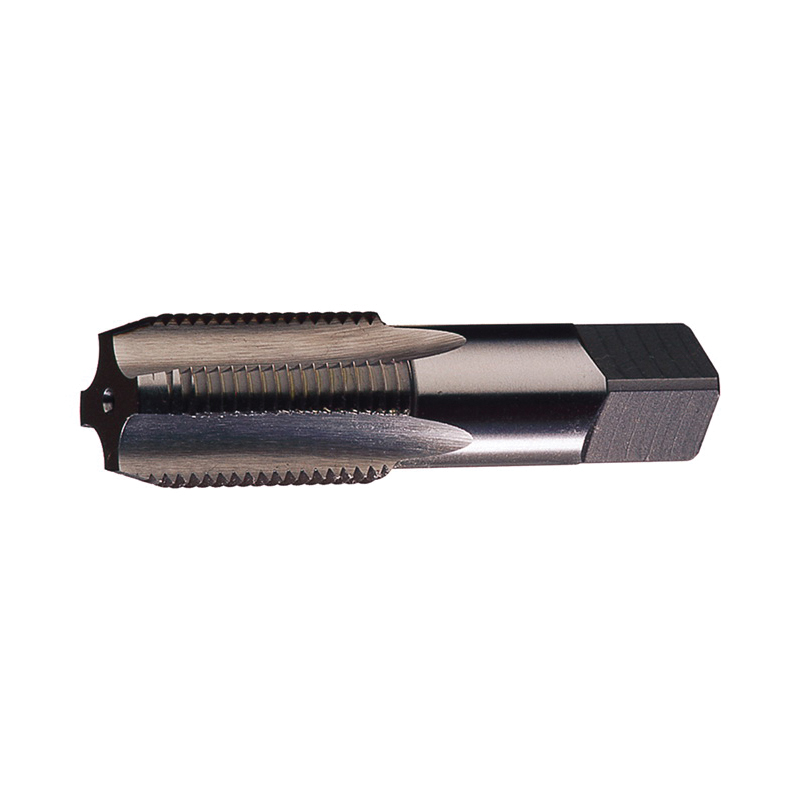

Cle-Line® C64236 0463 Straight Flute Pipe Tap, 1-11-1/2 Thread
Cle-Line® C64236 0463 Straight Flute Pipe Tap, 1-11-1/2 Thread
- Brand: Cle-Line®
- Mfr# : C64236
- Item # : GRE C64236
- UPC #: 697334642367
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Ground thread for economical tapping
- NPS thread design, suitable for NPSC series tap
DESCRIPTION
Cle-Line® Pipe Tap, Straight Flute, Series: 0463, Measurement System: Imperial, 1-11-1/2 Thread, NPS Thread Standard, Semi-Bottoming Chamfer, 1-3/4 in Thread Length, 3-3/4 in Overall Length, 5 Flutes, Right Hand Cutting Direction, 1-1/8 in Shank Diameter, 0.843 in Square, HSS, Bright, Medium Hook
SPECIFICATIONS
| Type | : Straight Flute |
| Series | : 0463 |
| Measurement System | : Imperial |
| Thread Size | : 1-11-1/2 |
| Thread Standard | : NPS |
| Chamfer Type | : Semi-Bottoming |
| Thread Length | : 1-3/4 in |
| Overall Length | : 3-3/4 in |
| Number of Flutes | : 5 |
| Cutting Direction | : Right Hand |
| Shank Diameter | : 1-1/8 in |
| Square Size | : 0.843 in |
| Material | : HSS |
| Finish/Coating | : Bright |
| Hook Type | : Medium |
APPLICATION INFO
| Standard/Approvals | : USCTI Table 311 |
| Application | : For through hole, thread cutting and maintenance applications |
| Country of Origin | : US |
