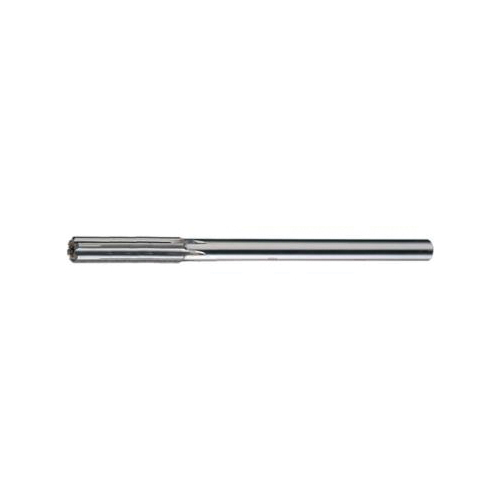

Cleveland® C50438 4703 Chucking Reamer, 1/2 in Dia x 8 in OAL, 0.4355 in Dia Straight Shank, Straight Flute
Cleveland® C50438 4703 Chucking Reamer, 1/2 in Dia x 8 in OAL, 0.4355 in Dia Straight Shank, Straight Flute
Cleveland® C50438 4703 Chucking Reamer, 1/2 in Dia x 8 in OAL, 0.4355 in Dia Straight Shank, Straight Flute
- Brand: Cleveland®
- Mfr# : C50438
- Item # : GRE C50438
- UPC #: 697334504382
- Min. Order Qty: :
- Qty. Interval: :
Catalog
FEATURES
- Runs at carbide speeds for increased productivity
- Manufactured from high speed steel body and shank for extra strength with brazed carbide tips
DESCRIPTION
Cleveland® Chucking Reamer, Series: 4703, 1/2 in Diameter, 8 in Overall Length, Straight Shank, 0.4355 in Shank Diameter, 6 Flutes, Straight Flute, 2 in Flute Length, Carbide Tip/HSS, Uncoated, Right Hand Cutting Direction, Applicable Materials: Alloy Steel, Aluminum, Carbon Steel, Free Machining Stainless Steel and Titanium Alloy

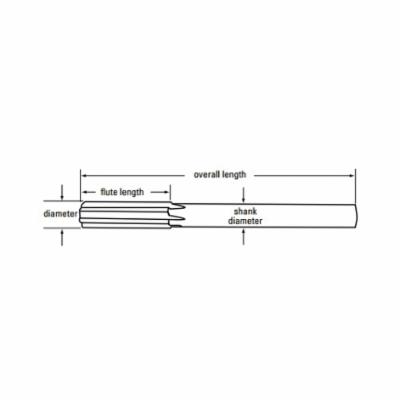

SPECIFICATIONS
| Series | : 4703 |
| Diameter | : 1/2 in |
| Overall Length | : 8 in |
| Shank Type | : Straight |
| Shank Diameter | : 0.4355 in |
| Number of Flutes | : 6 |
| Flute Type | : Straight |
| Flute Length | : 2 in |
| Material | : Carbide Tip/HSS |
| Finish | : Uncoated |
| Cutting Direction | : Right Hand |
| Applicable Materials | : Alloy Steel, Aluminum, Carbon Steel, Free Machining Stainless Steel and Titanium Alloy |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : Through Hole Applications |
| Country of Origin | : US |
