Cleveland® C42124 HG-2B Ball Nose Center Cutting General Purpose Single End End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated
Cleveland® C42124 HG-2B Ball Nose Center Cutting General Purpose Single End End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated
Cleveland® C42124 HG-2B Ball Nose Center Cutting General Purpose Single End End Mill, 1/2 in Dia Cutter, 1 in Length of Cut, 2 Flutes, 1/2 in Dia Shank, 3-1/4 in OAL, Uncoated
- Brand: Cleveland®
- Mfr# : C42124
- Item # : GRE C42124
- UPC #: 697334421245
- Min. Order Qty: :
- Qty. Interval: :
FEATURES
- 2-Flute end mills have greater chip ejection capacity and are ideal for slotting
- Coatings reduce heat and abrasion to increase tool life
- The increased lubricity of the coating surface reduces material adhesion and built-up edge, enabling even higher feed rates
- Coatings reduce the amount of torque required for machining to allow more efficient use of equipment
- Applicable on alloy steel, tool steel, carbon steel and cast iron
DESCRIPTION

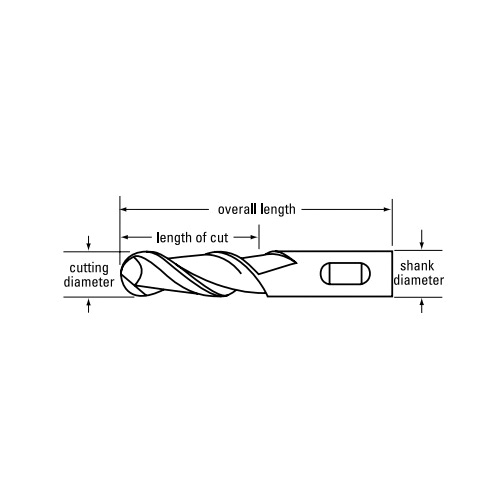

Cleveland® End Mill, Ball Nose Center Cutting General Purpose Single End, Series: HG-2B, 1/2 in Diameter Cutter, 3-1/4 in Overall Length, 1 in Length of Cut, 2 Flutes, Spiral Flute, 1/2 in Shank Diameter, Right Hand Cutting Direction, 30 deg Helix Angle, Straight/Weldon Flat Shank, HSS, Uncoated
SPECIFICATIONS
| Type | : Ball Nose Center Cutting General Purpose Single End |
| Series | : HG-2B |
| Cutter Diameter | : 1/2 in |
| Overall Length | : 3-1/4 in |
| Length of Cut | : 1 in |
| Number of Flutes | : 2 |
| Flute Type | : Spiral |
| Shank Diameter | : 1/2 in |
| Cutting Direction | : Right Hand |
| Helix Angle | : 30 deg |
| Shank Type | : Straight/Weldon Flat |
| Material | : HSS |
| Finish | : Uncoated |
APPLICATION INFO
| Standard/Approvals | : ANSI Specified |
| Application | : General Finishing Applications |
