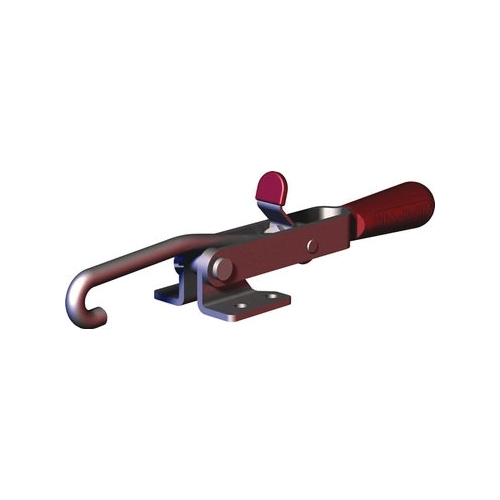

DESTACO 351-SS Pull Action Standard Latch Clamp, Stainless Steel, 450 lb, 3/4 in, M8
DESTACO 351-SS Pull Action Standard Latch Clamp, Stainless Steel, 450 lb, 3/4 in, M8
- Brand: DESTACO
- Mfr# : 351-SS
- Item # : DST 351-SS
- UPC #: 697437535191
- Min. Order Qty: :
- Qty. Interval: :
Specification Sheet
FEATURES
- Our line of pull action latch clamps is excellent for many types of latching operations
- The pull bar is threaded for easy adjustment
- Supplied with threaded J-hook for easy adjustment
- Patented thumb control lever provides one handed operation
DESCRIPTION
DESTACO Latch Clamp, Pull Action Standard, Series: 351 Series, 450 lb Holding, 3/4 in Height Under Arm, 1.83 in Overall Height, 8.82 in Overall Length, M8 Thread, Straight Handle, Horizontal J-Hook Bar, Flanged Base, 0.75 x 1.37 in Mounting Centers, Stainless Steel
SPECIFICATIONS
| Type | : Pull Action Standard |
| Series | : 351 Series |
| Holding Capacity | : 450 lb |
| Height Under Arm | : 3/4 in |
| Overall Height | : 1.83 in |
| Overall Length | : 8.82 in |
| Thread Size | : M8 |
| Handle Type | : Straight |
| Bar Type | : Horizontal J-Hook |
| Base Type | : Flanged |
| Mounting Centers | : 0.75 x 1.37 in |
| Material | : Stainless Steel |
APPLICATION INFO
| Application | : Molding, Closures for Doors, Lids, Covers and Assembly |
| Country of Origin | : TH |
